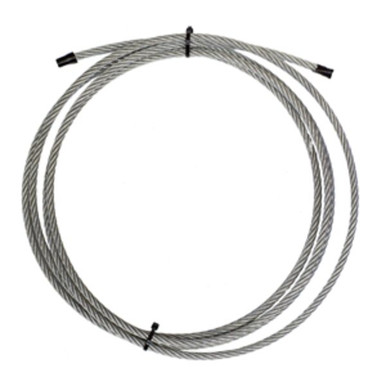

1055-X Galvanized 3/8 Inch HLL Cable by the Foot
The Super Anchor 1055-X is the HLL wire rope the CRA lifeline system is engineered around: 3/8 inch 7x19 galvanized cable with a 14,000 lb minimum tensile strength, sold by the foot and cut to your run length. Enter your footage as the quantity and one continuous length ships.
Cable ships cut to length as one continuous piece. Terminations build on site with eye thimbles and cable clamps per the 02-2021 rigging manual, or ask about factory swaged assemblies when ordering a complete system. Pairs with the 1050 series galvanized rigging kits.
Who Needs This Product
This cable is for crews rigging Super Anchor engineered horizontal lifelines: 120 ft typical runs on CRA or CRO anchors with pass-thru intermediates every 20 to 30 ft. The galvanized 1055-X is the standard choice for typical exterior service. Wear gloves when handling wire rope and wrap or tape cut ends; cut wires cause puncture and laceration injuries per the rigging manual warning.
Features
14,000 lb minimum tensile
3/8 inch 7x19 construction rated for the 2-person arrest, 4-person restraint HLL system performance.
Sold by the foot
Order exactly the footage the run needs; quantity equals feet and it ships as one continuous length.
One continuous length
Your footage ships as a single uncut piece, ready to feed through pass-thru tops and terminate on site.
Field swage compatible
Terminates on site with eye thimbles and 3 cable clamps torqued to 45 ft-lb per the manual.
O-ring travel ready
No. 5010-SM connector O-rings ride this cable through pass-thru tops for hands-free travel.
Hot dip galvanized finish
Standard exterior corrosion protection at the best cost per foot.
Technical Specifications
| Cable | 3/8 inch diameter, 7x19 construction, galvanized |
|---|---|
| Minimum Tensile Strength | 14,000 lb |
| Sold As | Per foot, cut to length, one continuous piece per order; 50 ft minimum |
| Weight | 0.243 lb per foot actual |
| Field Termination | Eye thimble plus 3 cable clamps (No. 1056), saddles on live side, 10 inch dead side, 45 ft-lb |
| System Performance | 2-person fall arrest or 4-person fall restraint per run; 310 lb users; 1,200 lb average peak force |
| Run Geometry | Typically 120 ft, 130 ft maximum engineered; anchors 20 to 30 ft on center |
| Compliance | System component per the 02-2021 CRA HLL Rigging Manual; ANSI Z359.1-07, OSHA 1926.502 |
Wire rope safety and engineering. Cut ends of wire rope cause puncture and laceration injuries; wear gloves and wrap cut ends with tape. HLL runs must be designed by a qualified or competent person with anchors, absorber, and terminations per the 02-2021 rigging manual. Never exceed 130 ft engineered run length, and replace the cable after any fall event.
Compliance Standards
ANSI Z359.1-07 / OSHA 1926.502
HLL cable specified by the 02-2021 CRA rigging manual complies as a system component.
7x19 Aircraft Cable Construction
133-wire construction balances strength with the flexibility field swaging requires.
Engineered System Basis
Runs typically 120 ft, 130 ft maximum with third-party engineering, anchors 20 to 30 ft on center.
Rigging Kit Matched
Thimbles and clamps for both terminations come in the 1050/1051 series rigging kits.
Typical Applications
Installation Overview
Ordering and terminating per the 02-2021 manual:
- Measure the run end anchor to end anchor and add termination allowance: approximately 40 inches of A-end component length plus a 10 inch field swage dead side.
- Order the footage cut to length; both terminations build on site per the rigging manual.
- Feed the cable through every pass-thru top and install the 4 No. 5010-SM O-rings before clamping.
- Build the field swage termination: eye thimble, 3 cable clamps with saddles on the live side, 10 inch dead side, clamps at 2.0 and 4.0 inch centers.
- Torque clamp nuts to 45 ft-lb with a calibrated wrench, alternating sides evenly, and wrap the cut end with exterior tape or shrink tube.
- Tension through the turnbuckle until the spring absorber gauge deploys fully, then re-verify clamp torque.
Inspection and Retirement
Inspect before installation and each use, with documented annual inspections. Remove the anchor from service when any of the following apply:
- Broken wires, kinks, birdcaging, or crushed sections anywhere along the run.
- Corrosion beyond surface staining (galvanized) or any pitting (stainless).
- Field swage clamps missing, loose, or below 45 ft-lb torque.
- The run was subjected to a fall; replace the cable and inspect all rigging.
- Cut ends unwrapped or fraying past the clamps.
Tag anchors removed from service to prevent further use until inspected by a qualified or competent person.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your SRL or lanyard setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Frequently Asked Questions
Super Anchor 1055-X Submittals and Documentation
CRA HLL Rigging Manual 02-2021 (PDF)Cable specifications, swaging procedures, torque values, and system rigging. CRA-PT Pass-Thru Catalog Pages (PDF)Intermediate anchor specifications for the posts this cable runs through. Super Anchor Warranty and Compliance Statement (PDF)Manufacturer warranty terms for Super Anchor fall protection equipment.Compatible and Related Products

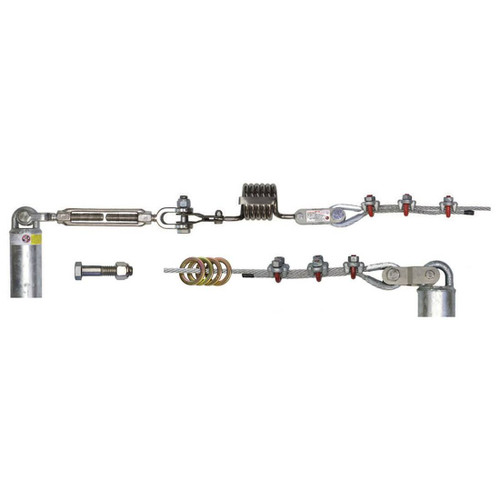

- Super Anchor 1050-G HLL Rigging Kit. Terminations, absorber, and turnbuckle for CRA anchor runs.
- Super Anchor 1031-PG Pass-Thru Anchor. Intermediate anchors the cable runs through.
- Super Anchor 1032-W CRA 12" Anchor Post. Loop top end anchors for the run.
- Super Anchor 120 ft Standing Seam HLL Kit. Complete engineered system, cable included.
Cabling a Lifeline Run?
Send us the run length and anchor layout and we will spec the footage, assembly options, rigging kit, and anchors so the complete system ships together, based on the delivery location.
Call 863-703-4522 to talk to a fall protection specialist.
Super Anchor Safety Manufacturer Warranty
Super Anchor Safety (SAS) warrants to the purchaser that all products are free from defect in material and workmanship at the time of shipment. This warranty is limited to product replacement for a period of one (1) year from the date of installation or use by the owner, provided that this period shall not exceed two (2) years from the date of shipment. This warranty only covers defects in material and workmanship. It does not cover conditions resulting from normal wear, neglect, abuse, or accident. This product warranty does not cover oxidation of zinc, dacromet, or powder coatings used on permanent and temporary anchors that results from connector abrasion unless the coating can be shown to be defective at the time of purchase. This warranty is non-transferable. Any unused defective product will be replaced at no charge by returning the product to Super Anchor Safety or to the distributor the product was purchased from.
Permanent Anchor Warranty
Super Anchor Safety warrants to the purchaser that all anchors sold as a permanent fixture with Hot Dip Galvanizing, Stainless Steel, and Thermo-Plastic finishes are fully warranted against failure due to defects in materials or workmanship for a period of five (5) years from the date of initial installation. SAS does not warranty the installation or flashing system used to waterproof the anchors. The SAS factory warranty is void if the product has been modified or has not been used in accordance with SAS specifications and instructions for that product. Anchors that have been removed from service due to re-roofing or remodel of the structure they were originally attached to must be inspected by an SAS factory representative or a competent person before being reinstalled.
See the Super Anchor Warranty and Compliance Statement (PDF) for the full manufacturer document.
