FallTech 7429SSK Permanent Roof Truss Anchor Kit

(No reviews yet) Write a Review
$81.00
Brand:
FallTech
SKU:
7429SSK
Availability:
Usually ships in 1 business day
Shipping:
Calculated at Checkout
Adding to cart… The item has been added
American Express Icon American Express Icon Discover Icon Discover Icon Mastercard Icon Mastercard Icon PayPal Icon PayPal Icon Visa Icon Visa Icon
FallTech Anchorage Connectors

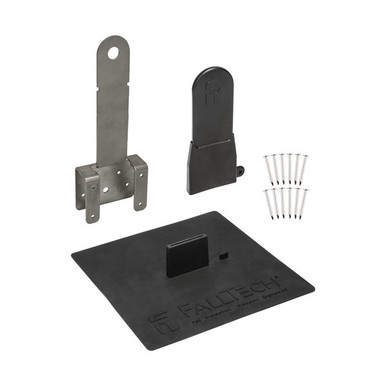

FallTech 7429SSK Truss Anchor Kit for Permanent Installation

The FallTech 7429SSK is a permanent roof truss anchor kit that installs across the trusses of a wood roof to create a strong, always-ready tie-off point. The kit includes the anchor and the hardware needed for a permanent installation.

It meets OSHA fall protection requirements, rated to a 3,600 lb tensile strength per the manual, and is built to stay with the building for ongoing roof access.

FallTech 7429SSK permanent roof truss anchor kit for wood trusses
PermanentTruss Anchor Kit
OSHACompliant
1 WorkerPer OSHA
Truss MountSpans Trusses
Complete KitAnchor + Hardware
Wood RoofPermanent
Maintenance AccessAlways Ready
3,600 lbsTensile Strength

Who Needs This Product

This product is a permanent roof truss anchor kit, the anchorage component of a personal fall arrest system for wood-truss roofs. Builders install it across the trusses to give a permanent tie-off point, then a worker connects an SRL or lanyard for ongoing roof access. You still need a certified full-body harness and a compatible connecting device.

Features

Complete kit

Includes the anchor and the hardware for a permanent truss install.

Truss-spanning mount

Attaches across roof trusses for a strong permanent anchor.

Permanent installation

Stays with the building for ongoing roof access.

Always-ready tie-off

A fixed connection point for maintenance and service.

Durable steel

Built to last as a permanent anchor.

OSHA compliant

Meets the OSHA anchorage requirement.

⚠

Install across sound trusses per the manual. Attach the kit to properly sized and spaced trusses using the supplied hardware, and flash or seal the install for weather. Confirm fall clearance and swing-fall with the Fall Protection Calculator below.

Compliance Standards

OSHA compliant

Meets OSHA fall protection anchorage requirements. Not ANSI-certified.

OSHA 29 CFR 1926.502

Federal construction fall protection anchorage requirements.

OSHA 29 CFR 1910

General industry personal fall protection requirements.

Rated 3,600 lb

Meets the OSHA anchorage strength requirement.

Typical Applications

Permanent roof accessAlways-ready truss tie-off for maintenance.
New constructionSet during the roof build.
Residential roofsOwner and service anchor points.
HVAC serviceRoof access for equipment work.
Solar maintenancePermanent anchor for panel service.
InspectionFixed roof access anchor.

How to Install

Follow the FallTech instruction manual. The sequence below is an overview only.

  1. Inspect. Check the anchor body, connection point, and hardware for damage before each use.
  2. Prepare the structure. Confirm the mounting surface is sound and rated to support the anchor per the manual.
  3. Install and secure. Mount the anchor as specified and set all fasteners to the required torque.
  4. Connect. Attach your SRL or energy-absorbing lanyard to the connection point.
  5. Check clearance. Confirm fall clearance and swing-fall with the calculator below.

Inspection and Retirement

Inspect before each use, with a documented competent-person inspection at least annually. Remove the anchor from service for any of the conditions below.

  • Anchor body and welds: cracks, bending, deformation, or corrosion.
  • D-ring or connection point: deformation, sharp edges, cracks, or corrosion.
  • Fasteners and hardware: damaged threads, loose or missing fasteners.
  • Labels: illegible or missing markings.

Remove the anchor from service immediately after any fall-arrest event, and destroy retired equipment so it cannot return to service.

Fall Protection Distributors logo Fall Protection
Distributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k). Run the Numbers and Stay Safe Launch the Calculator ›

Technical Specifications

TypePermanent roof truss anchor kit
ContentsAnchor plus permanent-install hardware
Tensile strength3,600 lb, per the FallTech manual
ComplianceOSHA
Anchorage strengthMeets OSHA requirement (3,600 lb)
CapacityOne worker, up to 425 lb combined (OSHA)
StandardsOSHA 1926.502 and 1910
WarrantyFallTech 2-year limited warranty against defects in materials and workmanship

Frequently Asked Questions

What is in the 7429SSK kit?
The anchor and the hardware needed for a permanent installation across roof trusses; see the manual for the full contents.
How does it install?
It attaches across properly sized and spaced roof trusses with the supplied hardware, per the manual, for a permanent anchor.
Is it permanent?
Yes. It is designed to stay with the building for ongoing roof access.
Is it ANSI certified?
It is not ANSI certified. It meets OSHA 1926.502, verified in FallTech lab testing by a static load of 3,811 lbf held against the 3,600 lbf criterion (twice the 1,800 lb potential impact energy). Confirm it fits your fall protection plan.
What do I connect to it?
Connect a compatible SRL or energy-absorbing lanyard, used with a certified full-body harness.
What do I connect to it?
Connect a compatible SRL or energy-absorbing lanyard to the connection point, used with a certified full-body harness.
Can it be reused after a fall?
No. Remove the anchor from service immediately after any fall-arrest event and destroy it so it cannot be reused.

FallTech 7429SSK Submittals and Documentation

7429SSK Instruction Manual (PDF)Installation, capacity, and inspection. 7429SSK Declaration of Conformity (PDF)Certification to OSHA requirements (FallTech test lab). 7429SSK Spec Sheet (PDF)One-page specifications summary.

Related Anchors

Specifying Anchors for Your Crew?

The anchor, the connecting device, and the harness all have to match the structure and the fall clearance below. Confirm your application with us and we will help you choose the right anchor.

Call 863-703-4522 to talk to a fall protection specialist.

FallTech 2-Year Limited Warranty. FallTech warrants to the buyer that all products are free from defects in material and workmanship at the time of shipment. Obligation is limited to product replacement for two (2) years from the date of installation or use by the owner, not to exceed two (2) years from the date of shipment. This warranty is not transferable and is void if the product is changed, altered, or used in a manner other than intended. It covers defects in material and workmanship only; it does not cover normal wear and tear, neglect, abuse, or accident. The limited warranty is provided only to an end-user customer for the period set forth in an order that has been accepted by Fall Protection Distributors, LLC. The end user customer must be: (a) a Buyer purchasing product directly from Fall Protection Distributors, LLC or Buyer of product purchasing from an authorized reseller. The limited warranty covers defects in materials and workmanship in the FallTech product. The limited warranty does not cover problems resulting from external causes such as accident, abuse, misuse, servicing not authorized by Fall Protection Distributors, LLC, usage that is not in accordance with product instructions, failure to follow the product instructions or failure to perform preventive maintenance, problems caused by using accessories, parts, or components not supplied by Fall Protection Distributors, LLC; normal wear and tear; and products with missing or altered service tags or serial numbers. FALL PROTECTION DISTRIBUTORS, LLC’S RESPONSIBILITY FOR MALFUNCTIONS AND DEFECTS IN PRODUCT IS LIMITED TO REPAIR AND REPLACEMENT OF THE PRODUCT AS SET FORTH IN THIS WARRANTY STATEMENT. EXCEPT AS PROVIDED ABOVE, FALL PROTECTION DISTRIBUTORS, LLC AND ITS SUPPLIERS MAKE NO, AND HEREBY DISCLAIM ALL OTHER, WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
