Super Anchor Residential Roof Anchors

Super Anchor D-Minus Retro-Flash Permanent Roof Anchor for Existing Roofs

The Super Anchor D-Minus Retro-Flash system mounts a permanent roof anchor directly over an existing asphalt shingle roof without removing any shingles. The Retro-Flash is a 20 gauge metal flashing that slips under the course of roofing just above the anchor and is held in place by the roofing material and caulking. It is ideal for older roofs with brittle shingles where a tear off would be a problem.

The D-Minus anchor mounts to the truss top chord, or install a 3/4 inch backer board under the current sheeting so no truss is needed. The kit includes the anchor, Retro-Flash, a butyl strip for a waterproof seal, a backer board, and stainless steel fasteners.

This product is sold as a 3-pack.

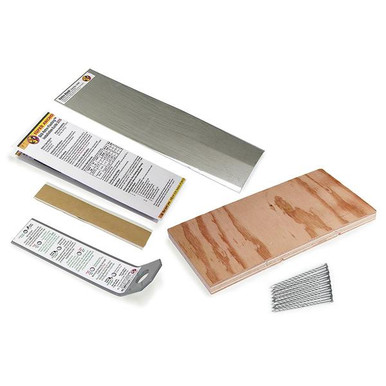

Super Anchor D-Minus Retro-Flash permanent roof anchor kit for installation over existing roofing

3,600 lbConnector Gate Strength

310 lbMax User Weight

11 gaSteel Anchor

20 gaRetro-Flash Metal

No Tear OffOver Existing Roof

Butyl SealIncluded

OSHA and ANSICompliant

PermanentInstallation Type

Who Needs This Product

The D-Minus Retro-Flash system is a permanent fall arrest anchor for roofers and remodelers who need to add a compliant tie-off to an existing asphalt, wood, or metal roof without removing roofing. It suits re-roof and retrofit work on brittle older roofs. Complete the system with a full-body harness, a connecting device, and a competent-person layout.

Features

Installs over existing roofing

Mounts directly over asphalt shingles with no shingle removal required.

Retro-Flash weather protection

A 20 gauge metal flashing slips under the roofing course above the anchor and is held by the roofing and caulking.

Backer board option

Install a 3/4 inch backer board under the sheeting to anchor without hitting a truss.

Butyl waterproof seal

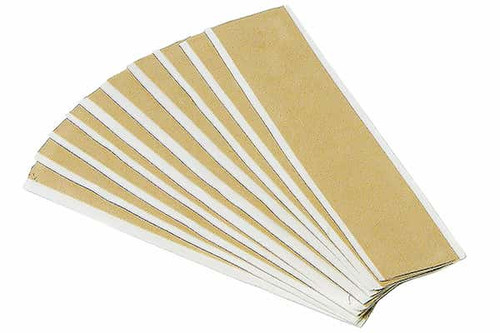

The kit includes a butyl strip for a waterproof seal at the anchor.

Low profile, paintable

The design blends into the roofing and can be painted to match.

Complete retrofit kit

The kit ships with the anchor, Retro-Flash, butyl seal, backer board, and stainless steel fasteners.

⚠

This anchor is a fall arrest anchorage, not a complete system. Install per the instruction manual onto structure capable of the load, use a full-body harness with a connecting device rated for a 3,600 lb gate, and confirm fall clearance. Run the Fall Protection Calculator below before you tie off.

Compliance Standards

OSHA 29 CFR 1926.502

Federal construction fall protection anchorage requirements.

ANSI and CSA

Complies with applicable ANSI and CSA anchorage standards.

Typical Applications

Re-roofingAdd a compliant anchor without a tear off.

Older asphalt roofsTie-off on brittle shingle roofs.

RemodelingRetrofit fall protection during a remodel.

Roof maintenanceLong term access point for service trades.

How to Install the D-Minus Retro-Flash System

Follow the Super Anchor Safety instruction manual. The sequence below is an overview only.

Choose the mount. Center the anchor over the truss, or install a 3/4 inch backer board under the sheeting for a top-chord free install.
Fasten the anchor. Nail or screw the anchor down securely with the supplied stainless steel fasteners.
Add the butyl. Apply the butyl strip for a waterproof seal at the anchor base.
Install the Retro-Flash. Slip the Retro-Flash under the headlap of the existing roofing above the anchor.
Verify. Confirm the anchor is accessible, connect your PPE, and confirm fall clearance.

Inspection and Retirement

Inspect before each use, with a documented competent-person inspection at least annually. Remove the product from service for any condition below.

Anchor body: cracks, deformation, corrosion, or elongated holes.
Coating: worn or damaged galvanizing, dacromet, or powder coat at the connection point.
Fasteners and flashing: loose, missing, backed-out, or leaking hardware.
D-ring or connection point: burrs, sharp edges, or excessive wear.
Labels: illegible or missing product identification.

Retire the anchor immediately after any fall-arrest event, or if any inspection point fails.

Fall Protection
Distributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k). Run the Numbers and Stay Safe Launch the Calculator ›

Technical Specifications

SKU	2404
Manufacturer Part Number	2404
Type	Permanent retro-flash roof anchor kit for existing roofs
Anchor material	11 gauge steel
Retro-Flash	20 gauge metal flashing
Kit contents	Anchor, Retro-Flash, butyl flashing, backer board, fasteners
Connectors	Require 3,600 lb gate strength snap hooks or carabiners
Max user weight	310 lb (140 kg) including tools and equipment
Standards	OSHA 1926.502; ANSI and CSA
Warranty	Super Anchor 5-year permanent anchor warranty; see Warranty tab

Frequently Asked Questions

Do I have to remove shingles to install it?

No. The D-Minus mounts over the existing roofing, and the Retro-Flash slips under the course of roofing above the anchor. Verify that the mounting surface is sound and that every fastener is fully seated before the anchor is put into service. Only trained workers should select, install, and use fall protection equipment for its intended application.

Does the Retro-Flash installation need caulking?

Yes. The installation uses caulking along with the included butyl strip to hold the Retro-Flash under the roofing course and create a waterproof seal, per the instruction manual. Follow the recommended fastener pattern and placement so the connection is secure, and re-check the installation before you rely on it for fall arrest.

Can I install it without hitting a truss?

Yes. Install the included 3/4 inch backer board under the sheeting and fasten the anchor to it. Follow the recommended fastener pattern and placement so the connection is secure, and re-check the installation before you rely on it for fall arrest. Before every use, confirm the product is compatible with the rest of your fall protection system and that you have adequate fall clearance below the work area.

What is included in the kit?

The anchor, Retro-Flash, butyl flashing strip, backer board, and stainless steel fasteners. Verify that the mounting surface is sound and that every fastener is fully seated before the anchor is put into service. Store it in a clean, dry place away from heat and chemicals to help preserve its condition between uses.

What roofs does it work on?

Asphalt, wood, and metal roofs, per the instruction manual. Confirm the surface, slope, and conditions at your work area match the intended application before installation. Only trained workers should select, install, and use fall protection equipment for its intended application. Always inspect the product before each use and take it out of service if you notice any damage, deformation, or excessive wear.

What connectors can I use?

ANSI or CSA compliant snap hooks and carabiners with a 3,600 lb gate strength. Pair it only with connectors and equipment that are approved for use together so the complete system performs as designed. A qualified person should verify that the installation and the overall system meet the requirements of your specific job site.

Do I need a harness with this anchor?

Yes. The anchor is an anchorage point only and must be paired with a full-body harness and a connecting device. Confirm each component in the system is compatible and rated for the intended use before connecting to it. Store it in a clean, dry place away from heat and chemicals to help preserve its condition between uses.

Super Anchor D-Minus Retro-Flash System Submittals and Documentation

D-Minus Instruction Manual 2025 (PDF)Use, installation, capacity, and inspection. Retro-Flash Flashing Guide (PDF)Detailed retro-flash installation guide. Retro-Flash Sell Sheet (PDF)Product overview and features. Retro-Flash 2401-S Sell Sheet (PDF)Stainless steel Retro-Flash overview. RS-10 and D-Minus Retro-Flash Sell Sheet (PDF)Product overview and features. Spiral Shank Nail Spec Sheet (PDF)Stainless steel fastener specification. Warranty and Compliance Statement (PDF)Manufacturer warranty and standards compliance.

Related Super Anchor Products

Adding an Anchor to an Existing Roof?

Retrofitting a compliant tie-off depends on the roof type, its age, and the framing below. Confirm your roof with us and we will help match the right D-Minus system and PPE.

Call 863-703-4522 to talk to a fall protection specialist.

Super Anchor Safety Manufacturer Warranty

Super Anchor Safety (SAS) warrants to the purchaser that all products are free from defect in material and workmanship at the time of shipment. This warranty is limited to product replacement for a period of one (1) year from the date of installation or use by the owner, provided that this period shall not exceed two (2) years from the date of shipment. This warranty only covers defects in material and workmanship. It does not cover conditions resulting from normal wear, neglect, abuse, or accident. This product warranty does not cover oxidation of zinc, dacromet, or powder coatings used on permanent and temporary anchors that results from connector abrasion unless the coating can be shown to be defective at the time of purchase. This warranty is non-transferable. Any unused defective product will be replaced at no charge by returning the product to Super Anchor Safety or to the distributor the product was purchased from.

Permanent Anchor Warranty

Super Anchor Safety warrants to the purchaser that all anchors sold as a permanent fixture with Hot Dip Galvanizing, Stainless Steel, and Thermo-Plastic finishes are fully warranted against failure due to defects in materials or workmanship for a period of five (5) years from the date of initial installation. SAS does not warranty the installation or flashing system used to waterproof the anchors. The SAS factory warranty is void if the product has been modified or has not been used in accordance with SAS specifications and instructions for that product. Anchors that have been removed from service due to re-roofing or remodel of the structure they were originally attached to must be inspected by an SAS factory representative or a competent person before being reinstalled.

See the Super Anchor Warranty and Compliance Statement (PDF) for the full manufacturer document.
