PUS34-US Patriot Pulley for Tripods, Made in USA

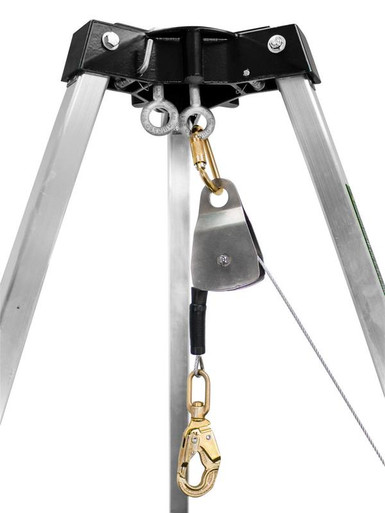

The Frontline PUS34-US is a Patriot pulley for confined space tripods, made in the USA: it mounts at the tripod head and turns a winch or retrieval line down into the opening so the cable runs cleanly and at the right angle to the worker.
A small but essential part of the confined space rigging, it pairs with the Frontline MEGApod tripods and the RAW50-US winch to complete the lifting path. Made in the USA as part of the Patriot line, conforming to OSHA 1910.146 and ANSI Z359 within the retrieval system.
Who Needs This Product
This product is a confined space rigging accessory - a pulley that routes the retrieval line over the tripod head. It is part of the tripod-plus-winch system and requires a harness and rescue plan to be complete.
Features
Clean line routing
Turns the winch line down into the opening at the correct angle.
Tripod-head mount
Installs at the MEGApod head per the manual.
Made in the USA
Patriot-line build for Buy American specs.
System component
Completes the lifting path with the RAW50-US winch.
Rugged
Steel construction for repeated confined space use.
Compact
A small part that makes the retrieval geometry right.
Technical Specifications
| SKU | PUS34-US |
|---|---|
| Type | Pulley for confined space tripods, Made in USA |
| Function | Routes winch/retrieval line over the tripod head |
| Compatible | MEGApod tripods; RAW50-US winch |
| Country of manufacture | USA |
| Standards | OSHA 1910.146; ANSI Z359 (within the system) |
Confined space demands a rescue plan. This equipment is part of an entry and non-entry rescue system, not a substitute for the written, practiced rescue plan OSHA 1910.146 requires. Verify every anchorage, base, and connection per the Frontline manual before any entry, and train your team first.
Compliance Standards
OSHA 29 CFR 1910.146
Permit-required confined spaces: entry, attendant, and rescue requirements.
ANSI Z359
Fall protection and rescue system standards for the system and its components.
OSHA 29 CFR 1926
Construction confined-space and fall-protection requirements.
Typical Applications
How to Use the PUS34-US
Follow the manufacturer's manual. The sequence below is an overview only.
- Inspect. Check all load-bearing parts, moving parts, and the line before each use.
- Set up per the manual. Install and rig exactly as the Frontline manual specifies.
- Rig the system. Run the retrieval and/or fall arrest lines through the correct points.
- Connect the worker. Attach the harness per the rescue plan.
- Function-test. Test retrieval and confirm the plan with the attendant before entry.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least every 6 months. Pull the equipment from service for any of the conditions below.
- Visual: deformation, cracks, corrosion, or damaged welds on load-bearing parts.
- Moving parts: pulleys, swivels, winch drum, and locks operate freely and lock positively.
- Line/cable: no broken wires, kinks, fraying, or corrosion; spools cleanly.
- Connectors and fasteners: present, correct, and fully engaged per the manual.
- Labels and markings: present and legible.
Retire the equipment immediately after any fall arrest event or if any inspection point fails. Destroy retired equipment so it cannot return to service.
