RPA061R Aramid Fiber Web Single Leg SRL with Steel Rebar Hook End
The Frontline RPA061R is a compact, lightweight single leg aramid-web self-retracting lifeline: a up to 12 ft UHMWPE and polyester webbing lifeline in a small thermoplastic housing that hangs close to the body and locks in inches if a fall starts.
Stainless steel and non-corrosive components run throughout, the connector strength is 5,000 lbs, and the device carries a 310 lb max capacity and a 42 in maximum arrest distance. Built to ANSI Z359.14, aligning with OSHA 1926 Subpart M and 1910.
Who Needs This Product
This product is a self-retracting lifeline (SRL) - a fall-arrest connecting device that pays out and retracts automatically, locking in place if a fall starts. Steel erectors, deck crews, and maintenance workers clip in for hands-free protection with minimal fall distance. You still need a full-body harness and a rated anchor to complete the system.

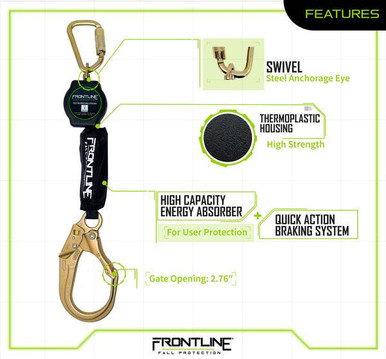

Features
Compact and light
The aramid web and small thermoplastic housing keep weight and bulk off the harness.
Aramid webbing lifeline
High-strength UHMWPE and polyester web retracts and locks in a fall.
Stainless internals
Non-corrosive components for long service life.
100 percent fall protection
Continuous hands-free protection from a single compact device.
Quick lockup
Short arrest distance keeps clearance demand low.
42 in arrest
Fast lockup per the spec sheet.
Technical Specifications
| SKU | RPA061R |
|---|---|
| Type | Aramid web single-leg SRL, up to 12 ft |
| Lifeline | UHMWPE and polyester aramid webbing |
| Housing | Compact thermoplastic; stainless and non-corrosive components |
| Connector strength | 5,000 lbs |
| Max arrest distance | 42 in |
| Max capacity | 310 lbs (one worker) |
| Standards | ANSI Z359.14; OSHA 1926 Subpart M; OSHA 1910 |
Mind the anchor height and the edge. Standard SRLs are rated for overhead anchorage; foot-level or leading-edge use requires an LE-rated device. Confirm anchor placement, swing-fall, and clearance below the work surface before each use - run the Fall Protection Calculator below, and rig per the Frontline manual.
Compliance Standards
ANSI Z359.14
American National Standard for self-retracting devices. Third-party test report linked in Submittals.
OSHA 29 CFR 1926 Subpart M
Federal construction fall protection requirements.
OSHA 29 CFR 1910
General industry personal fall protection requirements.
Typical Applications
How to Use the RPA061R
Follow the manufacturer's manual. The sequence below is an overview only.
- Inspect. Check the aramid webbing, braking, housing, and hooks before each use.
- Anchor. Connect to a rated anchor per the manual.
- Connect to the harness. Attach to the dorsal D-ring.
- Check the gates. Confirm every hook is closed and locked.
- Verify clearance. Confirm fall clearance and swing-fall; run the calculator below.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least every 6 months. Pull the equipment from service for any of the conditions below.
- Lifeline webbing/cable: cuts, fraying, abrasion, burns, or chemical damage.
- Braking: lifeline must lock sharply on a quick pull test.
- Housing: cracks, loose fasteners, or damaged lifeline exit.
- Energy absorber: deployment or torn cover.
- Hooks and swivels: deformation, corrosion, or gates that fail to lock.
Retire the equipment immediately after any fall arrest event or if any inspection point fails. Destroy retired equipment so it cannot return to service.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your SRL or lanyard setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Frequently Asked Questions
Frontline RPA061R Submittals and Documentation
Frontline RPA061R Spec Sheet (PDF)Lifeline, dimensions, connector strength, and standards. Frontline Non-LE SRL User Manual (PDF)Use, limitations, inspection, and retirement for the aramid web SRL family. Frontline RPA061R Test Report (PDF)Third-party test results to ANSI Z359.14. Frontline Catalog (PDF)The full Frontline Fall Protection product catalog.Compatible and Related Products
- Frontline RPAS Aramid SRL. The snap-hook aramid SRL.
- Frontline RPGCLE Leading Edge SRL. A leading-edge rated cable SRL.
- Frontline 100CTB Combat Construction Harness. The harness this SRL clips into.
Specifying Personal SRLs for Your Crew?
SRLs, harnesses, and anchors have to match the work height and edge. Confirm your application, anchorage, and clearance with us and we will walk through the kit list so the right equipment ships together.
Call 863-703-4522 to talk to a fall protection specialist.
