RPW061S Web Single Leg 6 ft SRL with Steel Snap Hook End
The Frontline RPW061S is a 6 ft web single leg self-retracting lifeline that gives you hands-free fall protection with a short retracting webbing lifeline. The lifeline pays out as you move and locks in inches if a fall starts, all inside a robust, durable plastic casing.
A swivel anchorage eye and a quarter-turn locking steel carabiner (CSQ184) make the anchor connection; a swivel steel snap hook terminates the worker end. The 1 in polyester webbing carries a 5,000 lb connector strength with a 310 lb capacity, a 42 in maximum arrest distance (Class 1), and a 1,350 lb average arrest force. Built to ANSI Z359.14, aligning with OSHA 1926 and 1910.
Who Needs This Product
This product is a self-retracting lifeline (SRL) - a fall arrest connecting device that pays out and retracts automatically, locking in inches if a fall starts. Steel erectors, deck crews, and maintenance workers clip in for hands-free protection with minimal fall distance. You still need a full body harness and a rated anchor to complete the system.

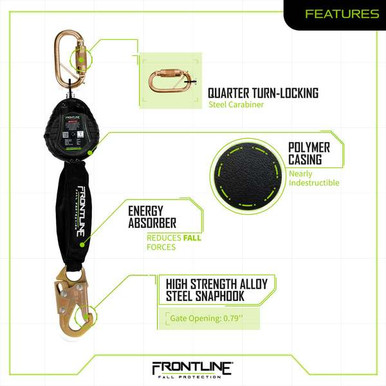

Features
Hands-free protection
The lifeline retracts as you move - no slack to manage, minimal fall distance.
Quarter-turn locking carabiner
The CSQ184 steel carabiner locks with a turn at the anchor - no accidental rollout.
Swivel snap hook
The snap hook swivels to prevent webbing twist as you work.
Durable plastic casing
Robust housing protects the mechanism on the jobsite.
Class 1, 42 in arrest
Quick lockup keeps arrest distance and clearance demand low.
Anchorage eye
A swivel eye lets the SRL track your movement at the anchor.
Technical Specifications
| SKU | RPW061S |
|---|---|
| Type | Web single leg self-retracting lifeline, 6 ft |
| Lifeline | Polyester webbing, 1 in |
| Housing | Robust plastic casing |
| Anchor end | Swivel anchorage eye + quarter-turn locking steel carabiner (CSQ184) |
| Worker end | Swivel steel snap hook |
| Connector strength | 5,000 lbs |
| Max arrest distance | 42 in (Class 1) |
| Avg arrest force | 1,350 lbs |
| Max capacity | 310 lbs (one worker) |
| Standards | ANSI Z359.14; OSHA 1926.502; OSHA 1910 |
Mind the anchor height and the edge. Standard SRLs are rated for overhead anchorage; foot-level or leading-edge use requires an LE-rated device. Confirm anchor placement, swing-fall, and clearance below the work surface before each use - run the Fall Protection Calculator below, and rig per the Frontline manual.
Compliance Standards
ANSI Z359.14
American National Standard for self-retracting devices. Third-party test report linked in Submittals.
OSHA 29 CFR 1926 Subpart M
Federal construction fall protection requirements.
OSHA 29 CFR 1910
General industry personal fall protection requirements.
Typical Applications
How to Use the RPW061S
Follow the manufacturer's manual. The sequence below is an overview only.
- Inspect. Check webbing, braking (sharp-pull lock test), housing, and both connectors before each use.
- Anchor overhead. Connect the quarter-turn carabiner to a rated overhead anchor.
- Connect to the harness. Attach the swivel hook to the dorsal D-ring.
- Confirm the lock. Verify the carabiner is fully locked and the hook gate is closed.
- Verify clearance. Confirm fall clearance and swing-fall below - run the calculator below.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least every 6 months. Pull the equipment from service for any of the conditions below.
- Lifeline webbing/cable: cuts, fraying, abrasion, burns, or chemical damage.
- Braking: lifeline must lock sharply on a quick pull test.
- Housing: cracks, loose fasteners, or damaged lifeline exit.
- Energy absorber: deployment or torn cover.
- Hooks and swivels: deformation, corrosion, gates that fail to lock.
Retire the equipment immediately after any fall arrest event or if any inspection point fails. Destroy retired equipment so it cannot return to service.
