VLRS Securail Pro Rigid Rail Vertical Lifeline for Fixed Ladders
The VLRS clamps a rigid aluminum fall arrest rail onto an existing roof access or structure ladder - a guided climbing system that secures the climber far better than safety hoops or cages ever did. The TRR38 trolley rides the rail on rollers, follows the climber smoothly in both directions, and locks instantly in a fall.
The rail is high grade aluminum - light to install, undeformable in service - connected to the structure with undeformable stainless steel brackets, and it is easy to retrofit on existing ladders. System breaking strength 3,300 lb, connector breaking strength 5,395 lb. Available in 20, 30, and 40 ft kits. Conforms to ANSI A14.3 and aligns with OSHA 1910.29.
Who Needs This Product
This product is a permanent rigid-rail ladder safety system - the vertical lifeline portion of a fall arrest setup for fixed ladders. Each climber wears a full body harness connected by the TRR38 trolley (sold separately) that rides the rail and locks the moment a fall starts. Rigid rail systems hold the climber closer to the ladder than cable, with no sag and no cable tension to maintain.

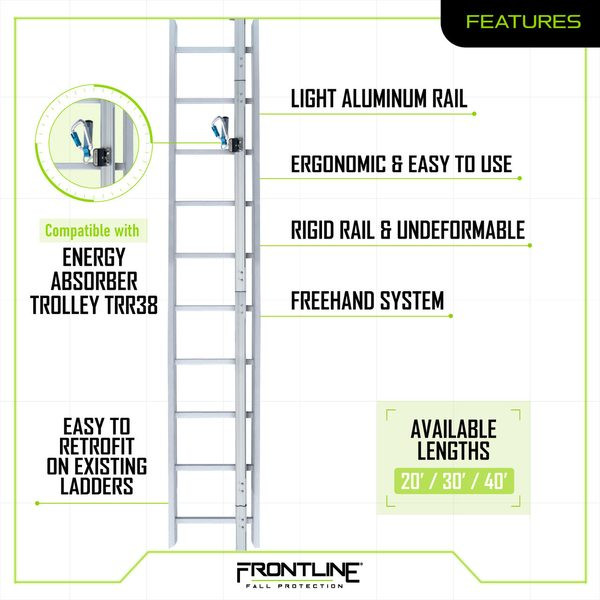

Features
Rigid rail, zero sag
The aluminum rail cannot deflect like cable - the trolley arrests a fall with minimal travel and holds the climber tight to the ladder.
Retrofits existing ladders
Clamps to the ladder you already have - no ladder replacement, no structure rebuild.
Undeformable stainless brackets
Stainless steel connections carry the system loads into the structure and shrug off weather.
Ergonomic climbing
The TRR38 trolley rolls with the climber both directions - no snagging, no manual repositioning mid-climb.
Compatible with access extensions
Works with safe roof access extensions at the ladder head per the manual.
Three kit lengths
20, 30, and 40 ft kits cover most fixed-ladder climbs.
Configurations
| Length | SKU | Price |
|---|---|---|
| 20 ft | VLRS20 | $1,181.99 |
| 30 ft | VLRS30 | $1,515.99 |
| 40 ft | VLRS40 | $2,002.99 |
Technical Specifications
| SKUs | VLRS20 (20 ft); VLRS30 (30 ft); VLRS40 (40 ft) |
|---|---|
| Type | Securail Pro rigid rail vertical fall arrest system, permanent retrofit |
| Rail | High grade aluminum, rigid and undeformable |
| Brackets | Undeformable stainless steel, clamp to existing ladder |
| System breaking strength | 3,300 lb |
| Connector breaking strength | 5,395 lb |
| Trolley | Frontline TRR38 (sold separately) - the compatible carrier for this rail |
| Standards | ANSI A14.3; OSHA 1910.29 |
Use the TRR38 trolley. Pair this rail only with the Frontline TRR38 trolley, install per the manual under qualified supervision, and verify every climber weighs between 110 and 330 lbs with tools. Rigid rail and cable components are not interchangeable between systems.
Compliance Standards
ANSI A14.3
American National Standard for fixed ladder safety systems.
OSHA 29 CFR 1910.29
General industry requirements for ladder safety systems replacing cages on fixed ladders.
Independently tested
Third-party test report available in the Submittals section.
EN-pedigree design
Securail rail systems are engineered to European guided-fall-arrester practice (EN 353-1).
Typical Applications
Installation Overview
Follow the manufacturer's manual. The sequence below is an overview only.
- Verify the ladder. A qualified person confirms the ladder and structure can take the system loads.
- Clamp the brackets. Mount the stainless brackets to the ladder rungs/rails per the manual spacing.
- Hang the rail. Join and mount the aluminum rail sections plumb along the climb.
- Terminate the ends. Install top and bottom stops so the trolley connects and disconnects only at safe positions.
- Commission. Run the TRR38 the full length, test the lock, and document the installation.
- Train the crew. Every climber learns connection, ascent, and descent per the manual before first use.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least every 6 months. Pull the equipment from service for any of the conditions below.
- Rail: bending, cracks, joint separation, or corrosion at fittings.
- Brackets: loosening, deformation, or missing fasteners.
- End stops: present and secure at top and bottom.
- Trolley interface: smooth roll the full length with positive lock-up.
- Labels: legible, with installation records on file.
Retirement triggers: any fall event on the system, rail or bracket damage, or any condition where the inspector cannot verify the system is fit for service - after a fall, the system must be inspected per the manufacturer before returning to service.
