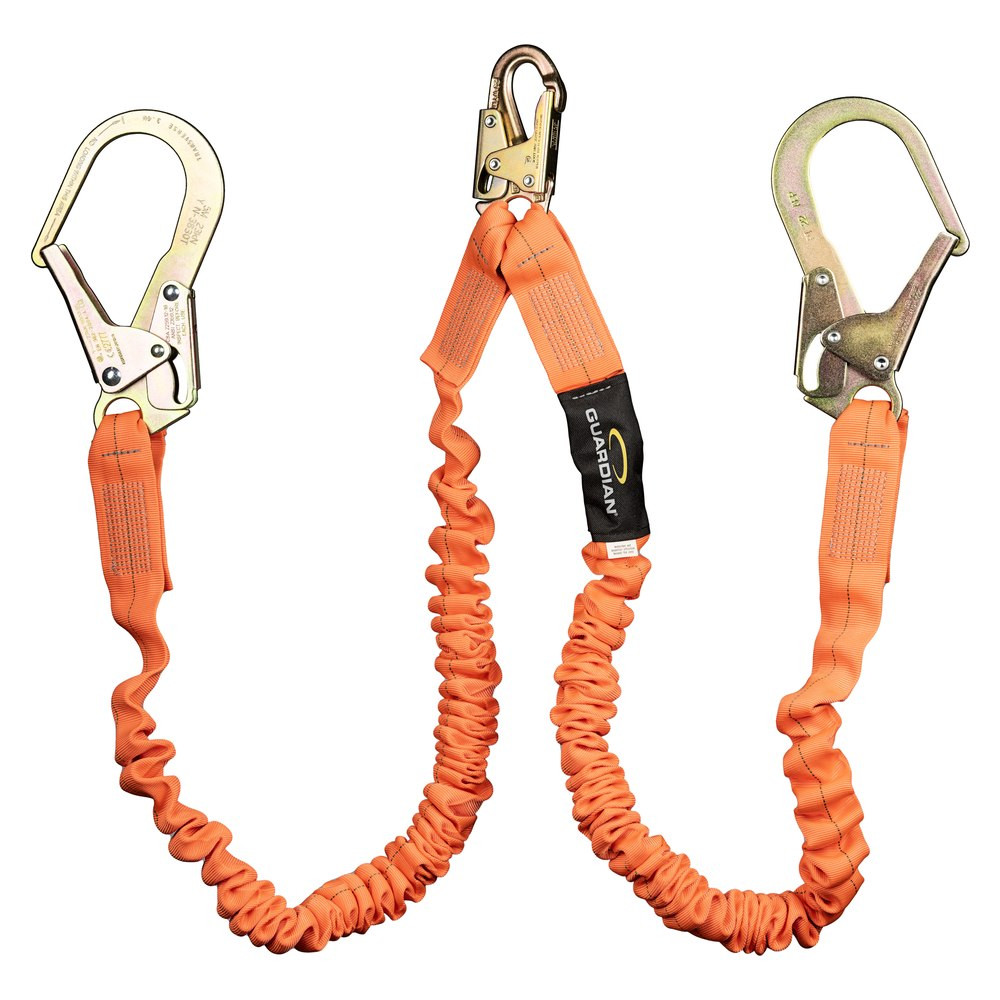

STR4.5-6-2R Double Leg Stretch Shock Lanyard, Rebar Hooks
The Guardian 01298 doubles the stretch design for 100 percent tie-off: twin elastic legs that ride at 4.5 ft and extend to 6 ft, with large-throat rebar hooks and a single energy absorber at the harness end. Hi-vis orange webbing throughout.
Certified to ANSI Z359.13 and compliant with OSHA 1926.502 and 1910.140 at 130 to 310 lbs including tools.
Who Needs This Product
Two dragging legs are twice the trip hazard, which is why stretch construction matters most on doubles: both legs ride short until reached. Steel and rebar crews transition point to point with the free leg stowed on the harness keeper, never underfoot.
Features
Impact Reduction
Internal shock absorber helps lower fall arrest forces for enhanced worker safety
Dual Leg Steel Rebar Hooks
Large rebar hooks provide secure connection to oversized anchor points
Streamlined Design
Internal shock pack reduces bulk for improved mobility and ease of use
Heavy-Duty Label Cover
Reinforced label protection ensures essential safety information stays legible
Increased Range
Stretch legs provide an increased range of use while mitigating snag and trip hazards.
Jobsite-grade construction
Built with the materials and finish quality Guardian applies across its height safety line.
Technical Specifications
| SKU | 01298 |
|---|---|
| Worker capacity | 130-310 lbs. including all clothing, tools, and equipment |
| Tensile strength | 5,000 lbs |
| Materials | Polyester, nylon, steel |
| Product weight | 6.38 lbs |
| Dimensions | 14 in L x 8 in W x 4 in H |
| Standards | OSHA 1910.140, OSHA 1926.502, ANSI Z359.13-13 |
| Warranty | Guardian lifetime warranty against defects in material and workmanship |
Account for the full system in your clearance. Total fall distance includes lanyard length, energy absorber deployment, harness stretch, and worker height below the D-ring. The anchorage must withstand 5,000 lbs or maintain a 2:1 safety factor. Never work with the harness D-ring above the anchor unless the application specifically permits it.
Compliance Standards
OSHA 1910.140
This product is compliant with OSHA 1910.140 when used as part of a complete, competent-person verified system.
OSHA 1926.502
This product is compliant with OSHA 1926.502 when used as part of a complete, competent-person verified system.
ANSI Z359.13-13
This product is compliant with ANSI Z359.13-13 when used as part of a complete, competent-person verified system.
ISO 17025 lab tested
Guardian products are tested in an ISO 17025 accredited laboratory; available documentation is linked below.
Typical Applications
Use Overview
Use must follow the Guardian lanyard instruction manual. The sequence below is an overview only.
- Inspect first. Check webbing, stitching, energy absorber, and hooks before every use.
- Connect the absorber end. Attach the energy absorbing end to the dorsal D-ring of the full body harness.
- Connect the anchor end. Attach the free end to a compliant anchorage connector rated 5,000 lbs or engineered with a 2:1 safety factor.
- Verify the gates. Confirm every hook gate is fully closed and locked, with no side loading.
- Check clearance. Verify fall clearance below the work surface including free fall, deployment, and harness stretch.
- Limit free fall. Position the anchor to keep free fall at 6 ft or less and minimize swing fall hazards.
Inspection and Retirement
Inspect before every use, and have a competent person perform a documented inspection at least every six months under ANSI Z359.2 practice. Remove the lanyard from service for any of the conditions below.
- Webbing: cuts, fraying, abrasion, burns, chemical damage, or UV fading.
- Stitching: broken, pulled, or abraded threads.
- Energy absorber: any deployment, torn cover, or elongation.
- Hooks: cracks, corrosion, deformation, or gates that do not close and lock automatically.
- Labels: missing or illegible.
Retirement triggers: any fall arrest event, any absorber deployment, or any condition where the inspector cannot positively verify the lanyard is fit for service.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your SRL or lanyard setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Frequently Asked Questions
Guardian 01298 Double Leg Stretch Shock Lanyard, Orange Submittals and Documentation
Guardian Internal Shock Lanyard Manual (PDF)Installation, use rules, and inspection criteria from the manufacturer.Guardian Stretch Lanyard Test Report (PDF)ISO 17025 accredited laboratory test results.Guardian Stretch Lanyard Doc Of Conformity (PDF)Manufacturer declaration of conformity.Guardian 01205X Inspection Form (PDF)Printable competent-person inspection checklist.Compatible and Related Products
- Guardian External Shock Absorbing Lanyard 2-Pack. The standard single leg family in 3 to 6 ft.
- Guardian 00455 Temper Roof Anchor 4-Pack. Reusable anchors for these connecting devices.
- Guardian 10733 Suspension Trauma Strap 4-Pack. Post-fall relief for every harness on the crew.
Outfitting a Crew with Connecting Devices?
Length, legs, and hook style follow from your anchors and clearance. Confirm your setup with us and we will make sure the right equipment ships together, based on the delivery location.
Call 863-703-4522 to talk to a fall protection specialist.
