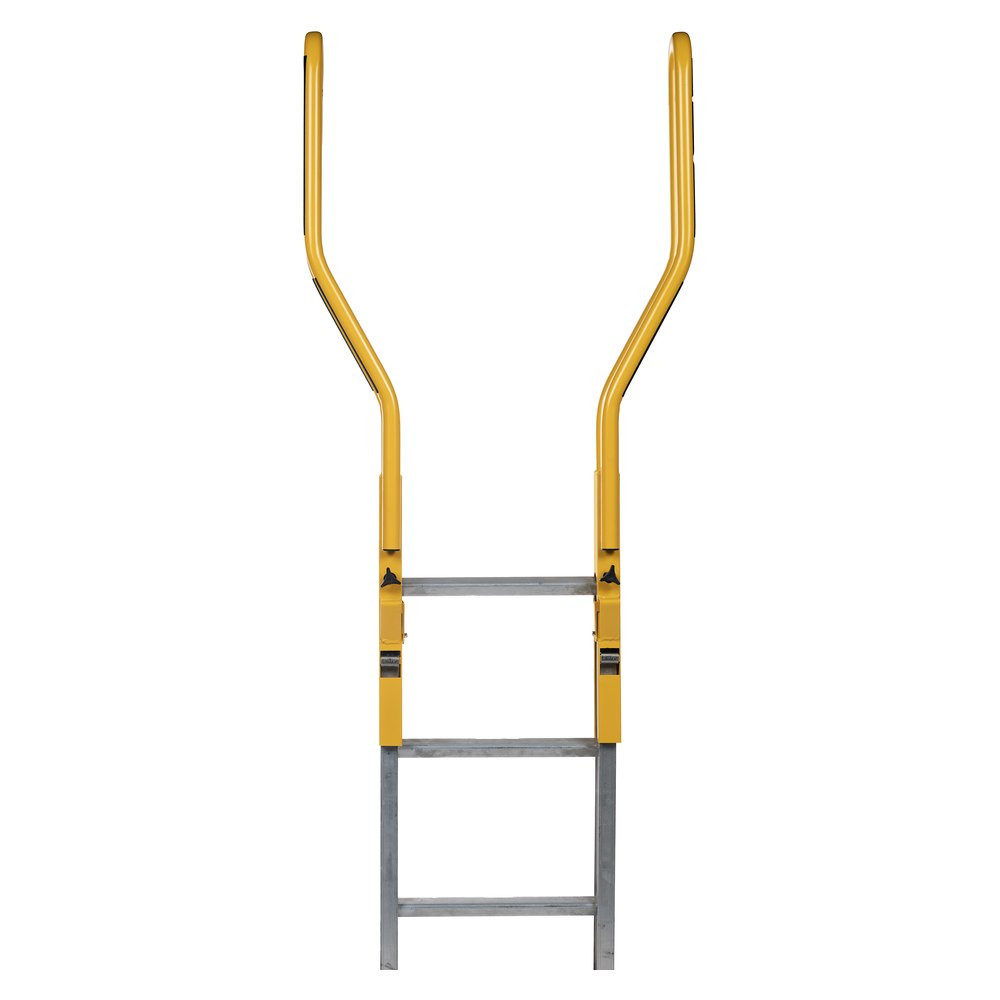

Safe-T Ladder Rail Extension System
The Guardian 10800 Safe-T Ladder Extension solves the most dangerous moment of every ladder climb: the transition at the top. It clamps to the top rungs of nearly any ladder by hand, no tools, drilling, or bolting, and extends dual offset handrails 3 ft above the landing surface so workers step through with a secure grip instead of swinging around exposed rails.
The textured grips improve balance and confidence in both directions, and the system helps crews meet the OSHA 1926.1053(b) requirement for ladder side rails extending 3 ft above the upper landing. At 13.4 lbs, it moves from ladder to ladder as fast as the crew does.
Who Needs This Product
Most ladder falls happen at the top, where the worker lets go of the rails to step onto the roof or platform. The Safe-T Ladder Extension keeps a solid handhold in reach through the entire transition, walking through the offset rails instead of around the ladder. Because it tightens onto the side rails by hand, one unit serves the whole fleet of compatible ladders, moving in minutes. Pair it with the 10798 self-closing gate to protect the opening at the top, and note that ladder transitions onto unprotected roofs still require fall protection at the walking surface.
Features
Extends 3 ft above the top
Provides the handrail height OSHA 1926.1053(b) expects at upper landing surfaces.
Tool-free installation
Tightens directly onto the ladder side rails by hand; no drilling, bolting, or hardware.
Dual offset handrails
Workers walk through the rails with a grip on both sides during the transition.
Textured grip surfaces
Confident handholds in work gloves, wet or dry.
Broad ladder compatibility
Fits side rails up to 1-3/4 in wide and 3-3/4 in deep, covering most extension ladders.
Fleet portability
At 13.44 lbs with hand-tightened clamps, it moves between ladders and jobs in minutes.
Technical Specifications
| SKU | 10800 |
|---|---|
| Product | Safe-T Ladder Rail Extension System |
| Extension height | 3 ft above the ladder top |
| Handrails | 2, offset, with textured grips |
| Ladder compatibility | Side rails up to 1-3/4 in wide and 3-3/4 in deep |
| Installation | Hand-tightened clamps; no tools, drilling, or bolting |
| Weight | 13.44 lbs |
| Dimensions | 53 in x 8 in x 6 in |
| OSHA alignment | Supports 1926.1053(b) ladder extension requirements |
| Warranty | Guardian lifetime warranty against defects in material and workmanship |
The extension is not fall arrest. The Safe-T Ladder Extension provides handholds for the transition; it is not an anchorage point and does not arrest falls. Secure the ladder per OSHA 1926.1053, verify the clamps are tight on compatible side rails before every climb, and use compliant fall protection on the walking surface above.
Compliance Standards
OSHA 1926.1053(b)
Supports the requirement that ladder side rails extend at least 3 ft above the upper landing surface.
Ladder security
The ladder itself must be secured against displacement per OSHA ladder rules.
Compatibility limits
Use only on ladders with side rails within the published width and depth limits.
Transition safety practice
Maintains three points of contact through the top-of-ladder transition in both directions.
Typical Applications
Installation Overview
Installation must follow the Guardian Safe-T Ladder instruction manual (85227). The sequence below is an overview only.
- Inspect first. Check the rails, grips, and clamps for damage before each installation.
- Verify compatibility. Confirm the ladder side rails are within 1-3/4 in width and 3-3/4 in depth.
- Position the system. Set the extension on the top rungs with the handrails extending above the landing surface.
- Tighten by hand. Tighten the clamps directly onto the side rails until fully secure; no tools required.
- Set the ladder. Place and secure the ladder per OSHA 1926.1053, with the extension reaching 3 ft above the landing.
- Transition with grip. Keep hands on the textured rails and step through the offset opening in both directions.
Inspection and Retirement
Inspect before each use. Remove the system from service for any of the conditions below.
- Bent, cracked, or deformed rails or crossmembers.
- Clamps that do not tighten fully or hold securely.
- Damaged or missing grip surfaces.
- Corrosion that weakens any structural member.
- Missing or illegible labels.
Retirement triggers: structural damage, clamps that will not hold, or any condition where the inspector cannot positively verify the system is fit for service.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your SRL or lanyard setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Frequently Asked Questions
Guardian 10800 Safe-T Ladder Submittals and Documentation
Guardian 10800 Safe-T Ladder Instruction Manual (PDF)Compatibility limits, installation steps, and inspection criteria.Guardian 10800 Safe-T Ladder Technical Data Sheet (PDF)Dimensions, weight, materials, and feature summary.Compatible and Related Products

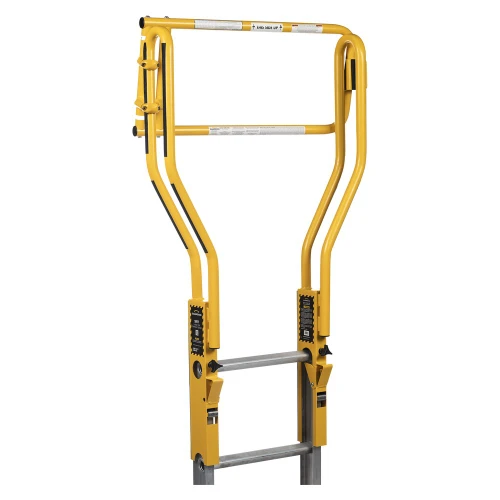

- Guardian 10798 Safe-T Self-Closing Ladder Gate. Self-closing gate that pairs with this extension at the opening.
- Guardian 00455 Temper Roof Anchor 4-Pack. Anchors for the fall protection the crew needs once on the roof.

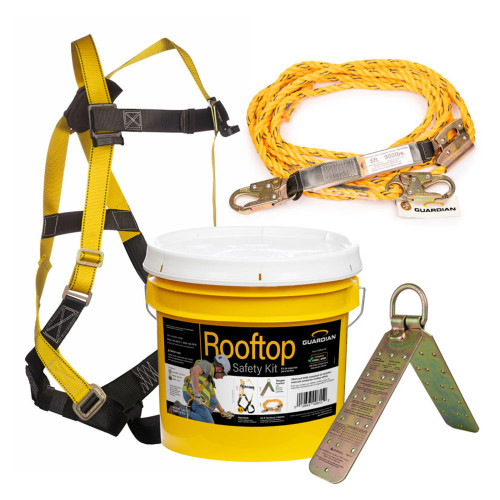

- Guardian 00815 Bucket of Safe-Tie Rooftop Safety Kit. Complete rooftop fall arrest kit to pair with safe ladder access.
