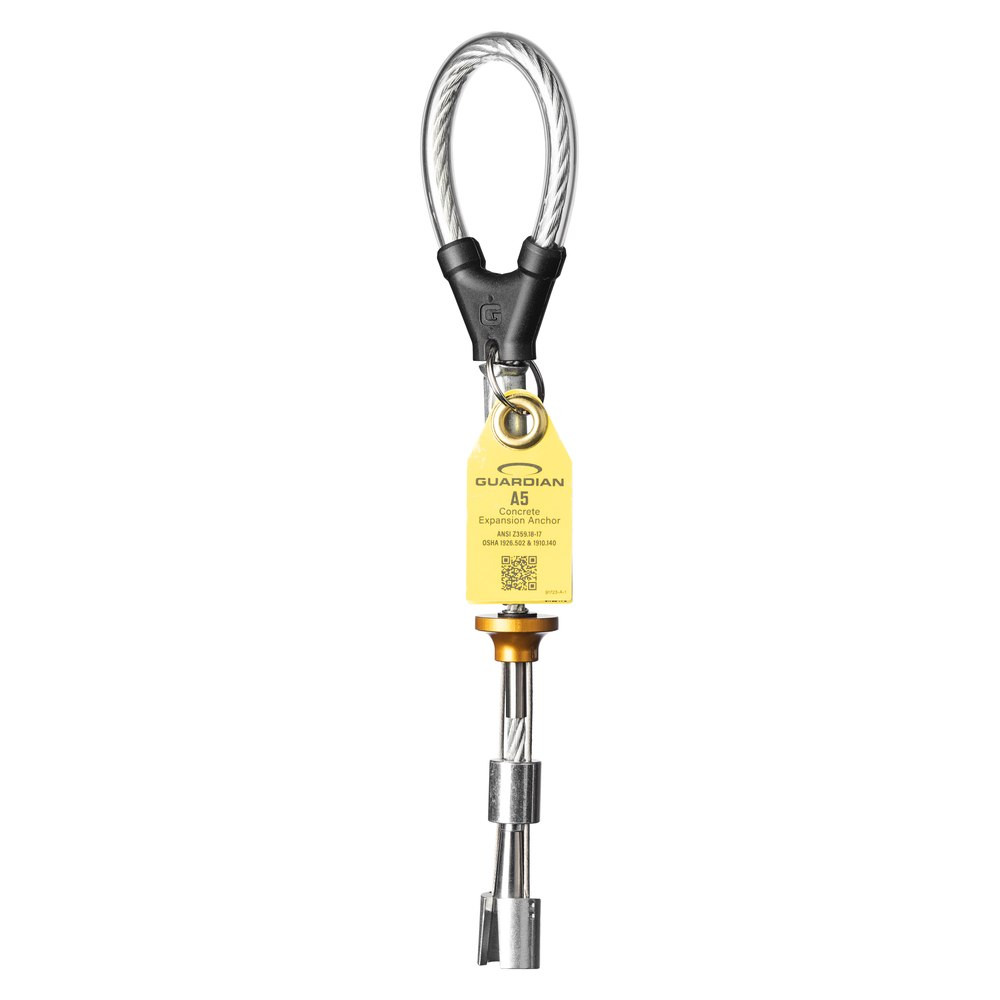

A5 Concrete Expansion Anchor, 5,000 lbs, Galvanized
The Guardian A5 is the drilled-concrete answer: a galvanized expansion anchor that sets in a drilled hole and presents a 5,000 lbs rated tie-off point on slabs, columns, and walls. Where cast-in anchors were never planned, the A5 retrofits compliant anchorage exactly where the work is.
Each anchor serves one worker under OSHA 1926.502 and 1910.140, installed per the hole diameter, embedment, and concrete strength requirements in the manual.
Who Needs This Product
Concrete trades and building owners meet the A5 at the same moment: a task needs tie-off and the slab has no anchor. Drill, clean the hole, set the expansion anchor per the manual, and the concrete carries a rated point. Verify the concrete strength and embedment against the manual, and note that installation and first-use verification belong to a competent person.
Features
Expanded Connection Loop
Provides a large opening for fast and convenient connections on the jobsite
Clear view cable protection
Allows for easy and visual inspection of high wear areas
Ergonomic thumb rest
Improves grip and comfort by eliminating pinch points with contured geometry
Easy access labels
Keeps labels out of the way during use while remaining flexible and accessible
Aluminum Trigger
Aircraft grade aluminum reduces weight and enables a durable long-lasting design
Dual expansion shoes
Automatically expand when trigger is released for quick installation
Technical Specifications
| SKU | 1400052 |
|---|---|
| Materials | Steel |
| Product weight | 0.6 lbs |
| Dimensions | 13 in L x 3 in W x 1.5 in H |
| Standards | OSHA 1910.140, OSHA 1926.502, ANSI Z359.18-2017 |
| Warranty | Guardian lifetime warranty against defects in material and workmanship |
Anchorage strength is the foundation of the system. The structure and anchor must withstand 5,000 lbs per attached worker or maintain a 2:1 safety factor under qualified-person supervision. Verify substrate, fastener, and orientation requirements against the instruction manual before every installation.
Compliance Standards
OSHA 1910.140
This product is compliant with OSHA 1910.140 when used as part of a complete, competent-person verified system.
OSHA 1926.502
This product is compliant with OSHA 1926.502 when used as part of a complete, competent-person verified system.
ANSI Z359.18-2017
This product is compliant with ANSI Z359.18-2017 when used as part of a complete, competent-person verified system.
ISO 17025 lab tested
Guardian products are tested in an ISO 17025 accredited laboratory; available documentation is linked below.
Typical Applications
Installation Overview
Installation must follow the Guardian instruction manual for this anchor. The sequence below is an overview only.
- Inspect first. Check the anchor body, connection point, and hardware before every installation.
- Verify the structure. The supporting structure must meet the strength requirements in the instruction manual.
- Install per the manual. Follow the substrate, fastener, and orientation requirements exactly; fill every required fastener position.
- Verify the connection. Confirm the anchor is fully seated and the connection point is accessible and undamaged.
- Connect the system. Attach a compatible connecting device and verify the complete personal fall arrest system with a competent person.
- Check clearance. Confirm fall clearance below the work area and minimize swing fall hazards before work begins.
Inspection and Retirement
Inspect before every use, and have a competent person perform a documented inspection at least every six months under ANSI Z359.2 practice. Remove the anchor from service for any of the conditions below.
- Cracks, corrosion, or deformation of the body, connection point, or welds.
- Loose, missing, damaged, or worn hardware and fasteners.
- Elongation or wear at the D-ring or connection eye.
- Missing or illegible labels.
- Any evidence the anchor has arrested a fall.
Retirement triggers: any fall event on the anchor, or any condition where the inspector cannot positively verify it is fit for service.
