Fall Protection Products For MBCI Standing Seam Panels
Posted by Howie Scarboro - CEO Fall Protection Distributors, LLC on Mar 5th 2026
See the Roof Anchor Compatibility Chart for MBCI Standing Seam Panels.

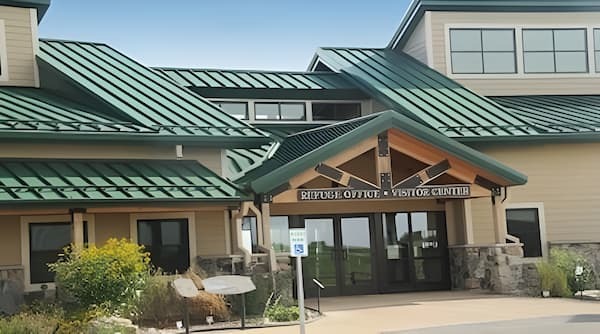

Who Is MBCI?
MBCI is one of the most recognized names in metal roofing and wall systems, known for quality, consistency, and innovation. Founded in 1976, MBCI has grown into one of the nation's most respected manufacturers of metal roofing and wall systems. Headquartered in Houston, Texas, with thirteen manufacturing and sales locations throughout the United States, the company has built its reputation on high-quality products, reliable service, and unparalleled technical expertise.
MBCI offers an extensive catalog of more than 90 roof and wall panel profiles for the commercial, industrial, and architectural markets. Their product lineup includes standing-seam roof systems, concealed-fastener panels, and structural components designed for strength, aesthetics, and long-term performance. Contractors, builders, and architects rely on MBCI for products that combine precision engineering with proven durability.
Why Are Non-Penetrating Anchors Required for MBCI Standing Seam Roofs?
Non-penetrating anchors protect the watertight seal of MBCI's standing seam systems while keeping workers safely tied off during roof work. Standing seam roofing systems expand and contract due to temperature fluctuations. This movement keeps the roof watertight and structurally sound year after year. However, once a worker drills through the panels, the system is compromised. Even a single penetration can create a weak point where water, rust, or deformation begins. Over time, leaks develop, coatings fail, and warranties become void.
Traditional anchors that rely on screws or bolts through the metal surface are incompatible with MBCI standing seam panels. These anchors disrupt the roof's design and can lead to costly long-term damage. The safer, more effective approach uses non-penetrating fall protection systems that clamp directly onto the raised seams without drilling. Systems such as the SSRA1 Standing Seam Roof Anchor and Ridge Pro Steep Assist create secure tie-off points that meet OSHA and ANSI standards while maintaining the roof's integrity.
Fall Protection Systems for MBCI Panels
To maintain the integrity of these high-performance systems, specialized fall protection is required. The following products provide the primary safety solutions for MBCI installations:
- SSRA1 Standing Seam Roof Anchor: The foundation of the system. This anchor provides a non-penetrating, certified 5,000-pound tie-off point using 12 cupped-tip or nylon-tipped set screws.
- SSRA2 Adjustable Roof Jack Adapters: Mount directly to the SSRA1 anchors to create level work platforms on steep slopes using 10-foot wooden walkboards.
- SSRA3 Anchor Plates: Heavy-duty aluminum plates that secure across two SSRA1 anchors to serve as certified endpoints for horizontal lifelines.
- SSRA HLL 100-foot Temporary HLL Kit: A complete turnkey system providing continuous tie-off for up to two workers in fall arrest, allowing safe lateral movement across wide spans.
- 120-foot Super Anchor Permanent HLL Kit: An industry-exclusive galvanized-steel-cable solution for roofs requiring regular maintenance without penetrations.
- Ridge Pro Steep Assist: A peak-mounted system for slopes between 6:12 and 12:12, providing 100% tie-off from the ladder to the ridge.
Proper Attachment: Set-Screws and Torque Requirements
Worker safety and the holding power of the SSRA1 anchor depend entirely on correct set-screw application:
- Cupped-Tip Stainless Steel Set-Screws: Use these screws exclusively on 22-gauge steel panels. Torque these screws to 90 inch-pounds.
- Nylon-Tipped Set-Screws: Apply these tips to 22-gauge or 24-gauge steel panels to achieve certified holding power. Torque these screws to 180-200 inch-pounds for maximum strength.
Maintenance: Treat nylon tips as consumables. Replace these tips every 3 to 5 uses to maintain maximum grip strength.
CRITICAL WARNING: NO IMPACT GUNS
Never use an impact gun to install set-screws. Over-torquing with an impact driver crushes the standing-seam rib. This installation error damages the anchor hardware and voids the manufacturer's warranty. Always use a calibrated torque wrench for final installation.

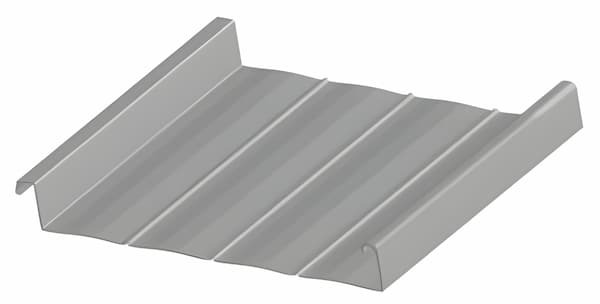

MBCI BattenLok HS Mechanical Panel (SSRA Compatible 22/24 ga. Steel)
The MBCI BattenLok HS Panel delivers strength, design flexibility, and watertight performance for demanding commercial and architectural projects. This field-seamed panel features a tall 2-inch vertical rib and performs reliably on slopes as low as 1/2:12. See the Roof Anchor Compatibility Chart for MBCI BattenLok HS 22 gauge and 24 gauge Standing Seam Panels.
- Material Build: Manufactured in 22- and 24-gauge steel.
- Dimensions: 12-inch and 16-inch widths with a 2-inch rib.
- Warranty: 40-year finish warranty; tested to UL 90 and ASTM standards.
Fall Protection for BattenLok HS Mechanical Panels:
- SSRA1 Seam Anchor: Attaches securely to the vertical ribs for a 5,000-pound-rated tie-off point.
- SSRA2 Adjustable Roof Jack Adapters: Mount directly over SSRA1 anchors to support ten-foot wooden walkboards.
- SSRA3 Anchor Plates: Convert the SSRA1 anchors into reliable endpoints for 100-foot temporary horizontal lifelines.
- Super Anchor 120-foot Permanent HLL Kit: Offers a galvanized cable system for buildings requiring ongoing access.
- Ridge Pro Steep Assist: portable, non-penetrating tie-off solution for slopes between 6:12 and 12:12.
MBCI Double-Lok Mechanical Panels (SSRA Compatible 22/24 ga. Steel)
The Double-Lok Mechanical Roof Panel is one of MBCI's most proven standing-seam systems. It features a trapezoidal leg design with a 3-inch rib height and locking panels via mechanical seaming. See the Roof Anchor Compatibility Chart for MBCI Double-Lok 22 gauge and 24 gauge Standing Seam Panels.
- Material Build: Manufactured in both 22- and 24-gauge steel.
- Dimensions: 18-inch and 24-inch widths with a 3-inch rib.
- Performance: Performs on slopes as low as 1/4:12; ideal for retrofit and low-slope industrial applications.
Fall Protection for Double-Lok Mechanical Panels:
- SSRA1 Seam Anchor: Clamps onto the raised seams to maintain watertight integrity.
- SSRA2 Adjustable Roof Jack Adapters: Create level working surfaces during installation or repairs.
- SSRA3 Anchor Plates: Mount across two SSRA1 anchors for temporary multi-worker horizontal lifelines.
- Super Anchor 120-foot Permanent HLL Kit: Ideal for facilities requiring routine inspections without drilling into panels.

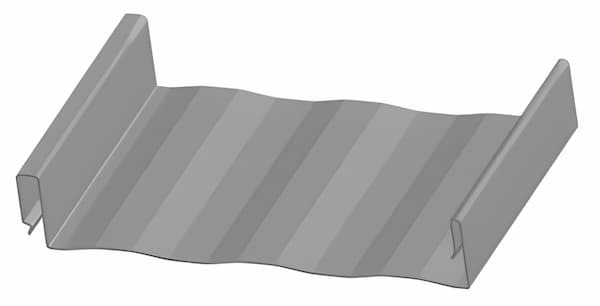

MBCI LokSeam Snaplock Panels (SSRA Compatible 22/24 ga. Steel)
The LokSeam Snaplock Panel strikes a balance between sleek architectural aesthetics and dependable performance. It uses a concealed fastener system with a snaplock connection, eliminating field seaming. See the Roof Anchor Compatibility Chart for MBCI LokSeam 22 gauge and 24 gauge Standing Seam Panels.
- Material Build: Available in 22-, 24-, or 26-gauge steel.
- Dimensions: 12-inch, 16-inch, and 18-inch widths with a 1.75-inch rib height.
- Specs: Minimum slope of 3:12; installs over open framing or solid decking.
Fall Protection for LokSeam Snaplock Panels:
- SSRA1 Seam Anchor: Clamps directly to the raised seams for 22- and 24-gauge steel panels.
- SSRA2 Adjustable Roof Jack Adapters: Support ten-foot wooden walkboards for safe movement across steep sections.
- SSRA HLL Kit: Bundles anchors and plates for continuous tie-off across the roof span.
- Ridge Pro Steep Assist: Use this for lighter 26-gauge LokSeam panels to avoid seam deformation.

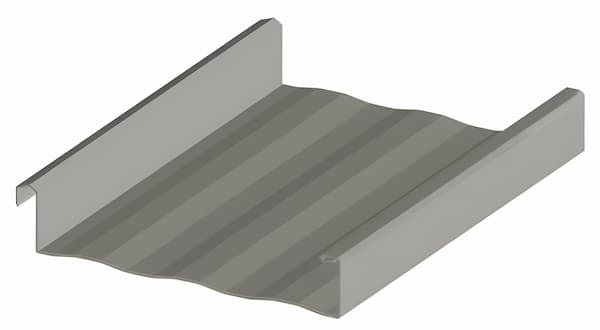

MBCI SuperLok Mechanical Panels (SSRA Compatible 22/24 ga. Steel)
SuperLok is excellent for superior weather resistance and structural integrity. Its vertical 2-inch rib creates a strong mechanical lock that resists wind uplift and water intrusion in extreme conditions. See the Roof Anchor Compatibility Chart for MBCI SuperLok 22 gauge and 24 gauge Standing Seam Panels.
- Material Build: Manufactured in 22-, 24-, and 26-gauge steel.
- Dimensions: 12-inch and 16-inch widths with a 2-inch rib.
- Performance: Performs on slopes as low as 1/2:12; installs over purlins or bar joists.
Fall Protection for SuperLok Mechanical Panels:
- SSRA1 Seam Anchor: Attaches to the 22- and 24-gauge ribs to provide OSHA-compliant fall arrest points.
- SSRA2 Adjustable Roof Jack Adapters: Help crews maintain level footing on steep industrial roofs.
- SSRA HLL Kit: Allows multiple workers to remain continuously tied off with a kernmantle lifeline.
- Ridge Pro Steep Assist: Required for 26-gauge SuperLok panels to protect the thinner material.

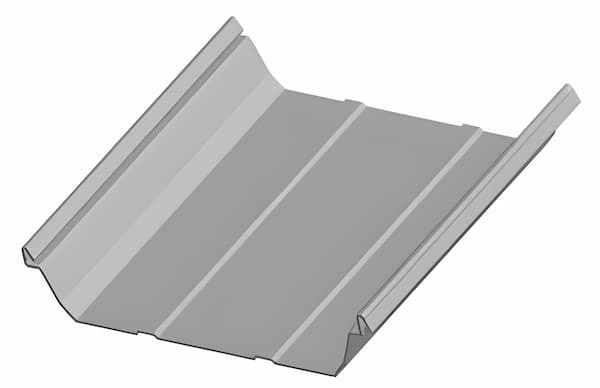

MBCI Ultra-Dek Mechanical Panels (SSRA Compatible 22/24 ga. Steel)
The Ultra-Dek Mechanical Roof System features a trapezoidal leg design for rapid installation and structural rigidity. Its unique upper rib creates a uniform, watertight seam during mechanical locking. See the Roof Anchor Compatibility Chart for MBCI Ultra-Dek 22 gauge and 24 gauge Standing Seam Panels.
- Material Build: Produced in 22-gauge and 24-gauge steel.
- Dimensions: 18-inch and 24-inch widths with a 3-inch seam profile.
- Specs: Minimum slope of 1/4:12; meets high industry standards for air and water penetration.
Fall Protection for Ultra-Dek Mechanical Panels:
- SSRA1 Seam Anchor: One-piece aluminum body distributes loads evenly across the trapezoidal seam.
- SSRA2 Adjustable Roof Jack Adapters: Enable safe movement across steep commercial sections.
- SSRA3 Anchor Plates: Connect to SSRA1 anchors to create endpoints for temporary lifelines.
- Ridge Pro Steep Assist: Simple, ridge-mounted solution for slopes between 6:12 and 12:12.

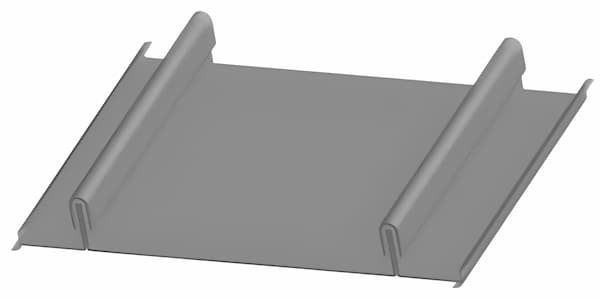

MBCI Craftsman Series – High Batten Panels (Ridge Pro Only)
The MBCI Craftsman Series blends traditional style with snap-on batten covers. The High Batten profile adds bold dimension to the roofline while maintaining installation efficiency. Because this design uses decorative batten caps rather than structural ribs, the seams cannot withstand the compression loads from clamp-on anchors. See the Roof Anchor Compatibility Chart for MBCI Craftsman Series – High Batten Standing Seam Panels.
- High Batten Dimensions: 12-inch and 16.5-inch spacing with 2-inch seams.
- Material Build: Available in 22, 24, or 26-gauge steel.
Fall Protection for Craftsman Series High Batten Panels:

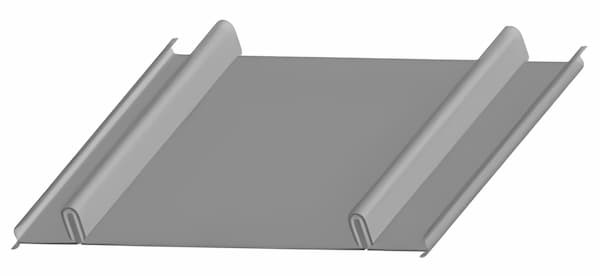

MBCI Craftsman Series – Small Batten Panels (Ridge Pro Only)
The MBCI Craftsman Small Batten system combines strength with a slimmer, more understated profile, simplifying complex roof transitions while maintaining optimal performance. See the Roof Anchor Compatibility Chart for MBCI Craftsman Series – SmallBatten Standing Seam Panels.
- Small Batten Dimensions: Slimmer profile for intricate roof transitions.
- Material Build: Available in 22, 24, or 26-gauge steel.
Fall Protection for Craftsman Series Small Batten Panels:

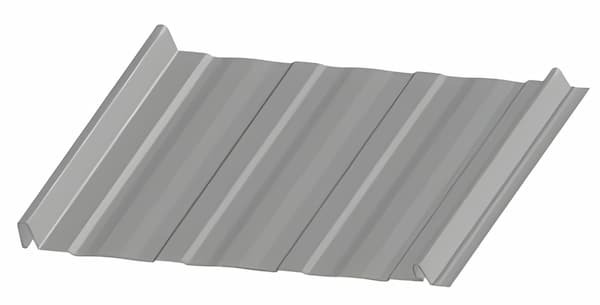

MBCI Slimline Nailstrip Panels (Ridge Pro Only)
The Slimline Nailstrip Panel brings sleek architectural design to the residential market. Because MBCI manufactures these in lighter 26- and 29-gauge steel, they cannot withstand the loads of seam-clamping hardware. See the Roof Anchor Compatibility Chart for MBCI Slimline Nailstrip Standing Seam Panels.
- Material Build: 26- and 29-gauge steel.
- Dimensions: 16-inch rib spacing with concealed fastener design.
- Specs: Minimum slope of 3:12.
Fall Protection for Slimline Panels:
- Ridge Pro Steep Assist: The Ridge Pro protects the Slimline panel's lightweight structure by avoiding seams entirely. It hooks over the ridge to provide a secure, OSHA-compliant anchor point for steep residential projects.
Why 3rd Party Anchor Testing Matters
Contractors often face the temptation to use lower-priced, generic safety hardware. Yet, the risk of unverified imports can lead to catastrophic project failure. Many generic anchors function as "mystery metal" components, lacking the traceable metallurgical history required for high-stakes fall arrest. Without rigorous ISO 17025 laboratory verification, these budget alternatives cannot guarantee they will withstand a 5,000-pound shock load during a real-world fall event.
Choosing American-engineered SSRA hardware replaces structural guesswork with verifiable reliability. We precision-machine our anchors to fit the exact profiles of MBCI standing seams, creating a calibrated grip that unverified imports cannot replicate. This domestic focus ensures that every component meets strict chemical and heat-treatment standards. By prioritizing certified safety equipment, you ensure your fall protection is as durable and trustworthy as the MBCI roof it protects. We encourage you to review our official SSRA test reports to confirm our performance benchmarks.
Metal Roof Anchor 22 Gauge Panel Compatibility For MBCI
| BattenLok-HS (22 Ga.) | Double-Lok (22 Ga.) | LokSeam (22 Ga.) | SuperLok (22 Ga.) | Ultra-Dek (22 Ga.) | |
|---|---|---|---|---|---|
SSRA 1 |
YES | YES | YES | YES | YES |
SSRA1 Nylon Tip |
YES | YES | YES | YES | YES |
SSRA2 Roof Jack |
YES | YES | YES | YES | YES |
SSRA3 Anchor Plate |
YES | YES | YES | YES | YES |
The Ridge Pro |
YES | YES | YES | YES | YES |
Metal Roof Anchor 24 Gauge Panel Compatibility For MBCI
| BattenLok-HS (24 Ga.) | Double-Lok (24 Ga.) | LokSeam (24 Ga.) | SuperLok (24 Ga.) | Ultra-Dek (24 Ga.) | |
|---|---|---|---|---|---|
| SSRA 1 |
NO | NO | NO | NO | NO |
| SSRA1 Nylon Tip |
YES | YES | YES | YES | YES |
| SSRA2 Roof Jack |
YES | YES | YES | YES | YES |
| SSRA3 Anchor Plate |
YES | YES | YES | YES | YES |
| The Ridge Pro |
YES | YES | YES | YES | YES |
Metal Roof Anchor Panel Compatibility For MBCI Cont.
| Craftsman Series – High Batten | Craftsman Series – Small Batten | Slimline Nailstrip | |
|---|---|---|---|
| SSRA 1 |
NO | NO | NO |
| SSRA1 Nylon Tip |
NO | NO | NO |
| SSRA2 Roof Jack |
NO | NO | NO |
| SSRA3 Anchor Plate |
NO | NO | NO |
| The Ridge Pro |
YES | YES | YES |
Contact Us For More Information
For further details on roofing solutions and fall protection systems, contact us at 863-703-4522 or visit www.StandingSeamRoofAnchor.com. Let's work together to make your roofing projects safe, beautiful, and built to last. For more safety tips, refer to the OSHA 48-page Fall Protection Manual. Once you have determined the most suitable anchors for your roof system, download our free Anchor Inspection Form.
Safety Tips For Standing Seam Roofs
Promote a Culture of Safety
A safety plan only works when everyone believes in it. A quick morning talk about hazards sets the tone for the day and reduces mistakes.
Develop OSHA-Compliant Safety Plans
Every project needs a written plan that defines tie-off points and rescue steps. Preparation eliminates panic and turns emergencies into well-managed situations.
Equip Workers with High-Quality Safety Gear
Good gear builds confidence. Harnesses must fit comfortably, and lifelines must move freely. OSHA's 2025 rule requires each worker to have properly fitted equipment.
Use Specialized Anchor Systems for Standing Seam Roofs
Standing seam panels require anchors that attach without drilling. Compatible non-penetrating systems preserve the roof warranty while protecting the crew.
Ensure Proper Footwear for Stability
Deep-tread roofing footwear grips smooth metal, even when wet. A reliable pair of boots can be as vital as any lifeline.
Encourage the Use of Trauma Straps
Stopping a fall is only half the job. Trauma straps provide suspended workers with a means to stand and relieve pressure, maintaining circulation until rescue arrives.
Set Up Protective Guardrail Barriers for Work Zones
Guardrails create a constant layer of defense around skylights and roof edges. They block falls before they happen without relying on gear checks.
Install Permanent Roof Anchor Systems
For buildings undergoing regular maintenance, permanent anchors are a sensible choice. Service crews can clip in immediately, saving time and ensuring compliance.
Prioritize Ladder Safety Training
Most accidents happen before a worker reaches the roof. Place ladders using the 4-to-1 rule and maintain three points of contact at all times.
