Fall Protection Strategies For Architectural Building Components/McElroy Metal s Roofs
Posted by Howie Scarboro - CEO Fall Protection Distributors, LLC on Apr 23rd 2026
See the Roof Anchor Compatibility Chart for Architectural Building Components Standing Seam Metal Roofing.
Who Is Architectural Building Components?
In 2012, McElroy Metal strategically acquired the Houston-based Architectural Building Components, integrating its specialized symmetrical standing-seam technology into one of the nation's most robust product catalogs. Established in 1963 and now a 100 percent employee-owned company, McElroy Metal operates 14 manufacturing facilities and over 70 service centers across the United States.
Headquartered in Bossier City, Louisiana, McElroy is a premier supplier for the commercial, industrial, and residential sectors. Their deep heritage in the Gulf Coast and Southern markets makes them a primary authority on high-wind-uplift and hurricane-resistant building envelopes. Every legacy Architectural Building Components profile is now backed by McElroy's expansive engineering resources, ensuring long-term reliability for builders from Texas to the Atlantic Coast.
McElroy Metal Panels Require Non-Penetrating Fall Protection
Preserving the weather-tight performance of a McElroy roof requires safety equipment that respects the panel's engineering. McElroy systems, particularly the symmetrical 138T and 238T series, are designed to "float" to manage thermal expansion across large spans. Using traditional anchors that penetrate the panel surface directly violates the manufacturer's specifications, leading to hidden leaks and immediate warranty voiding. To maintain a watertight seal, contractors must utilize specialized, non-penetrating anchors that clamp to the standing seams without piercing the metal. To ensure a 100 percent tie-off without voiding manufacturer warranties, we recommend the modular SSRA system.
The following products provide a complete safety solution for Architectural Building Components profiles:
- SSRA1 Seam Anchor: The foundational component. This patented, universal-fit anchor fits approximately 95% of today's standing-seam profiles, providing a certified 5,000-lb tie-off for non-curved 22-gauge and 24-gauge steel panels.
- SSRA2 Adjustable Roof Jack Adapters: Mount directly to the anchors to hold 10-foot wooden walk-boards for stable footing on steep slopes.
- SSRA3 Anchor Plates: High-strength spanner plates that connect two SSRA1 anchors to serve as structural endpoints for horizontal lifelines.
- 100-foot SSRA Horizontal Lifeline Kit: Allows two workers to move the entire length of the roof field while remaining 100 percent tied off on short-term projects.
- 120-foot Super Anchor Permanent HLL: A reliable, long-term maintenance solution using non-penetrating 5-inch riser posts that protect the roof's weather-tight seal.
- Ridge Pro Steep Assist: The essential First-Man-Up tool for pitches between 6:12 and 12:12, providing immediate tie-off before the worker leaves the ladder.
Keep in mind that OSHA and ANSI standards limit horizontal lifeline systems to a maximum pitch of 4:12. OSHA recognizes that workers can lose their footing and slide on steeper roofs, leading to dangerous falls, which is not suitable for horizontal lifeline setups.
Proper Attachment: Set-Screws and Torque Requirements
To ensure certified holding power while protecting the McElroy steel substrate, installers must select the appropriate fastener and torque setting:
- Cupped-Tip Stainless Steel Set Screws: Use these exclusively on 22-gauge steel and torque to 90 inch-pounds using a calibrated torque wrench.
- Nylon-Tipped Set Screws: Use these for 22-gauge or 24-gauge steel when preserving the paint finish is mandatory. Torque these fasteners to 180-200 inch-pounds.
- Maintenance: Treat nylon tips as consumables. Replace these tips every 3 to 5 uses to maintain maximum grip strength and ensure compliance with safety standards.
CRITICAL WARNING: NO IMPACT GUNS
Warning: Always use a calibrated torque wrench for final installation. Never use an impact gun to install set-screws. Impact guns can quickly over-tighten the screws, resulting in permanent damage to the standing seam panel or the anchor itself. This error compromises the anchor's certified holding power and voids the hardware warranty.
McElroy 138T Symmetrical Mechanical Panels (SSRA Compatible — 22/24-gauge Steel)
The 138T is a symmetrical standing-seam panel designed for high-wind performance and easy replacement of individual panels. It features a 1.375-inch rib height and widths of 12-, 16-, and 18-inches. This profile uses a mechanically seamed cap that creates a watertight structural bond. While primarily used in 22- and 24-gauge steel, it is also available in aluminum and copper. The 138T is excellent for roof slopes as low as 1:12. See the Roof Anchor Compatibility Chart for Architectural Building Components 22 Gauge and 24 Gauge 138T Symmetrical Mechanical Standing Seam Metal Roofing.
Fall Protection for McElroy 138T
- For non-curved steel panels, the SSRA1 Seam Anchor, SSRA2 Roof Jack Adapters, and SSRA3 Anchor Plates are fully compatible for a non-penetrating tie-off.
- The 100-foot SSRA HLL Kit and 120-foot Super Anchor Permanent HLL allow for multi-worker coverage across the structural ribs.
- Ridge Pro Recommendation: For aluminum or copper substrates where clamping is not recommended, or for steeper pitches of 6:12 to 12:12, use The Ridge Pro Steep Assist for peak-anchored protection.
- CRITICAL WARNING: Curved versions of the 138T panel present unique technical challenges. A mandatory in-person inspection by a trained safety expert is recommended to determine the safest fall protection plan.
McElroy 238T Symmetrical Mechanical Panels (SSRA Compatible — 22/24-gauge Steel)

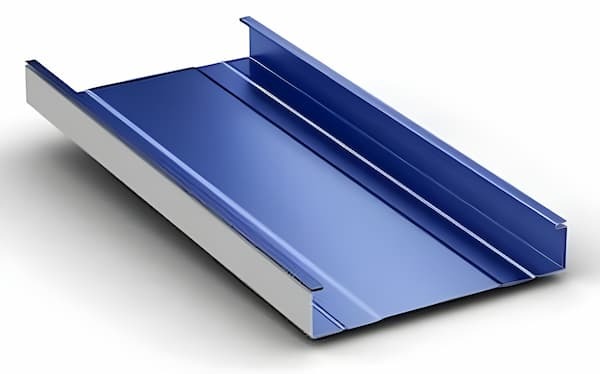

The 238T is the taller version of McElroy's symmetrical mechanical seam, featuring a 2.375-inch rib height. Available in widths of 16-, 18-, and 24-inches, this panel is for industrial and commercial retrofits. Fabricated from 22- and 24-gauge steel, aluminum, or copper, the 238T allows the replacement of any single panel without disturbing the rest of the roof field. It accommodates slopes as low as 1/2:12. See the Roof Anchor Compatibility Chart for Architectural Building Components 22 Gauge and 24 Gauge 238T Symmetrical Mechanical Standing Seam Metal Roofing.
Fall Protection for McElroy 238T
- For non-curved steel panels, use the SSRA1 Seam Anchor as the base for SSRA2 Roof Jack Adapters and SSRA3 Anchor Plates to support level walkways.
- The 100-foot SSRA HLL Kit and 120-foot Super Anchor Permanent HLL allow for multi-worker safety across expansive commercial spans.
- Ridge Pro Recommendation: For aluminum or copper installations, deploy The Ridge Pro Steep Assist for a 100 percent tie-off on ridge-mounted systems to avoid rib damage.
- CRITICAL WARNING: Curved versions of the 238T panel present unique technical challenges. A mandatory in-person inspection by a trained safety expert is recommended to determine the safest fall protection plan.
McElroy MasterLok-90 Snaplock Trapezoidal Panels (SSRA Compatible — 22/24-gauge Steel)

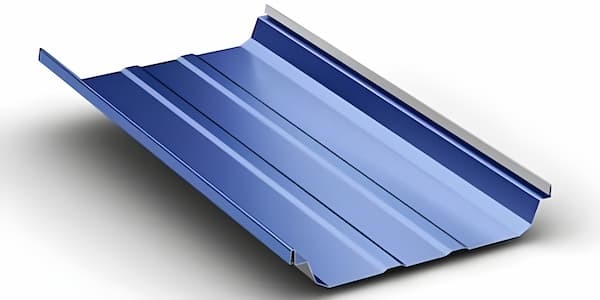

The MasterLok-90 is a structural trapezoidal standing-seam panel designed for industrial applications. It features a 3-inch rib height and 24-inch width, providing a secure watertight seal through a snap-together rib design. Fabricated from 22- and 24-gauge steel, it is ideal for low-slope projects down to 1/4:12 where efficiency and durability are required. See the Roof Anchor Compatibility Chart for Architectural Building Components 22 Gauge and 24 Gauge MasterLok-90 Snaplock Trapezoidal Standing Seam Metal Roofing.
Fall Protection for MasterLok-90
- The SSRA1 Seam Anchor, SSRA2 Roof Jack Adapters, and SSRA3 Anchor Plates are fully compatible for non-penetrating tie-offs on the snap-together rib.
- The 100-foot SSRA HLL Kit and 120-foot Permanent HLL allow crews to cover wide industrial spans safely.
- The Ridge Pro Steep Assist provides safe worker access and a complete tie-off on steeper sections or during the initial ladder transition.
McElroy MasterLok-FS Mechanical Trapezoidal Panels (SSRA Compatible — 22/24-gauge Steel)
The MasterLok-FS is a field-seamed version of the structural trapezoidal system. It features the same 3-inch rib height but requires mechanical seaming to create a structural bond. Primarily available in 22- and 24-gauge steel, it offers maximum wind-uplift resistance on slopes as low as 1/4:12. See the Roof Anchor Compatibility Chart for Architectural Building Components 22 Gauge and 24 Gauge MasterLok-FS Mechanical Trapezoidal Standing Seam Metal Roofing.
Fall Protection for MasterLok-FS
- This profile is fully compatible with the SSRA1 Seam Anchor, SSRA2 Roof Jack Adapters, and SSRA3 Anchor Plates for multi-worker safety systems.
- The 100-foot SSRA HLL Kit and 120-foot Permanent HLL are essential for safe navigation across large mechanically seamed fields.
- The Ridge Pro Steep Assist ensures a safe transition from the ladder to the peak without relying on the field-seamed ribs on pitches between 6:12 and 12:12.
McElroy RidgeLine IMP Insulated Panels (SSRA Compatible — 22/24-gauge Steel)

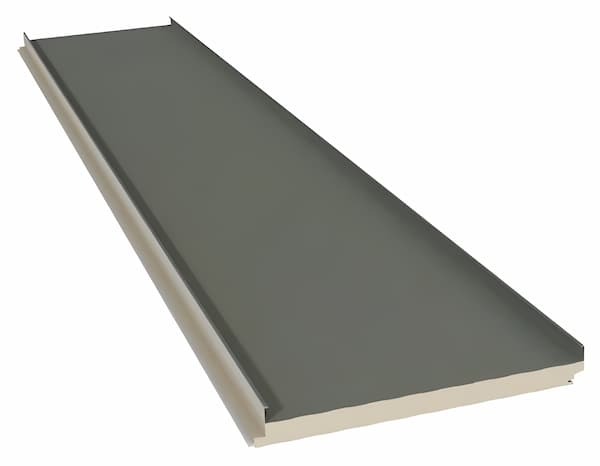

The RidgeLine IMP combines a 2-inch symmetrical standing seam with an insulated metal panel core. It features a 42-inch panel width and is available in thicknesses ranging from 2.5- to 6-inches. Fabricated from 22-, 24-, or 26-gauge steel, it requires a minimum roof pitch of 1/2:12. See the Roof Anchor Compatibility Chart for Architectural Building Components 22 Gauge and 24 Gauge RidgeLine IMP Insulated Standing Seam Metal Roofing.
Fall Protection for RidgeLine IMP
- For steel panels, the SSRA1 Seam Anchor and SSRA2 Roof Jack Adapters are compatible for tie-offs and staging on the vertical ribs.
- The 120-foot Super Anchor Permanent HLL is the ideal safety solution, as its riser posts protect the IMP core.
- Important Note: SSRA3 Anchor Plates and the 100-foot HLL Kit are not compatible with this profile due to the 42-inch seam spacing.
- The Ridge Pro Steep Assist is the recommended tool for a 100 percent tie-off on steeper IMP roof fields.
McElroy Maxima Structural Mechanical Panels (SSRA Compatible — 22/24-gauge Steel)

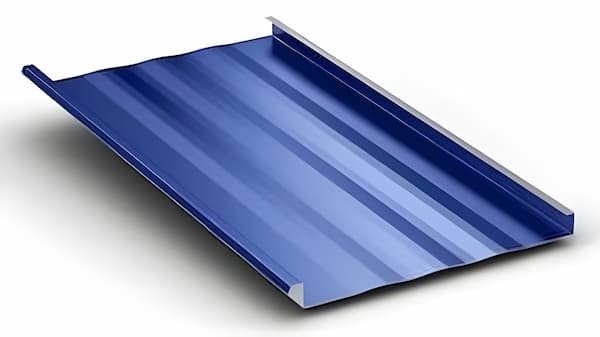

The Maxima series is a vertical-leg mechanical seam profile with rib heights of 1.5-, 2-, or 3-inches. These panels offer superior weather resistance on slopes as low as 1/2:12 and are available in 22- or 24-gauge steel or aluminum. See the Roof Anchor Compatibility Chart for Architectural Building Components 22 Gauge and 24 Gauge Maxima Structural Mechanical Standing Seam Metal Roofing.
Fall Protection for McElroy Maxima
- On 22/24-gauge steel versions, the SSRA1 Seam Anchor, SSRA2 Roof Jack Adapters, and SSRA3 Anchor Plates are all compatible for structural tie-offs.
- The 100-foot SSRA HLL Kit and 120-foot Permanent HLL facilitate safe lateral mobility for structural crews.
- Ridge Pro Recommendation: For aluminum Maxima installations where the seams are softer, use The Ridge Pro Steep Assist for ridge-mounted protection.
- CRITICAL WARNING: Curved Maxima roof projects present unique technical challenges. A mandatory in-person inspection by a trained safety expert is recommended to determine the safest fall protection plan.
McElroy Medallion-Lok Snaplock Panels (SSRA Compatible — 24-gauge Steel Only)

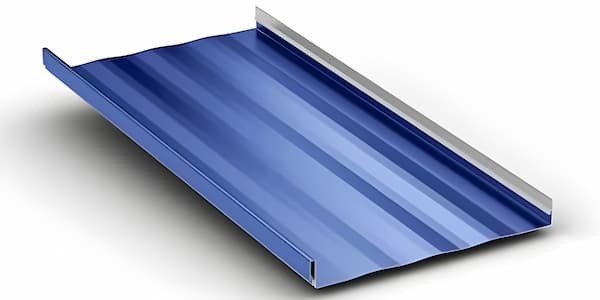

The Medallion-Lok is an architectural snap-together profile with a 1.75-inch rib height. Available in 12-, 16-, and 18-inch widths, it is made of 24-gauge steel or aluminum and is rated for slopes of at least 3/12. See the Roof Anchor Compatibility Chart for Architectural Building Components Medallion-Lok Snaplock Standing Seam Metal Roofing.
Fall Protection for Medallion-Lok
- For 24-gauge steel, the SSRA1 Seam Anchor, SSRA2 Roof Jack Adapters, and SSRA3 Anchor Plates are fully compatible for a non-penetrating tie-off.
- Lateral mobility for residential or commercial projects is supported via the 100-foot SSRA HLL Kit and 120-foot Permanent HLL.
- Ridge Pro Recommendation: For aluminum versions or steeper pitches, deploy The Ridge Pro Steep Assist for ridge-anchored safety.
McElroy Instaloc Snaplock Panels (SSRA Compatible — 24-gauge Steel)

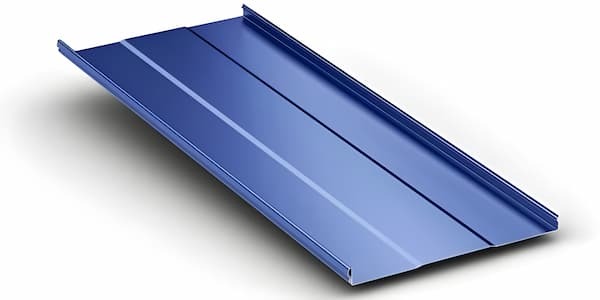

The Instaloc is a sleek architectural roofing system featuring a 1-inch snaplock seam and a standard 13-inch panel width manufactured from 24-gauge steel. It is suitable for roof slopes as low as 3:12. See the Roof Anchor Compatibility Chart for Architectural Building Components Instaloc Snaplock Standing Seam Metal Roofing.
Fall Protection for Instaloc
- The 24-gauge steel Instaloc is fully compatible with the SSRA1 Seam Anchor, SSRA2 Roof Jack Adapters, and SSRA3 Anchor Plates for a secure anchorage point.
- The 100-foot SSRA HLL Kit and 120-foot Permanent HLL provide comprehensive lateral safety across the modern profile.
- The Ridge Pro Steep Assist is recommended for safe transitions from the ladder on 6:12- to 12:12-pitch roofs.
McElroy Metal Medallion I Batten-Cap Panels (Ridge Pro Only)

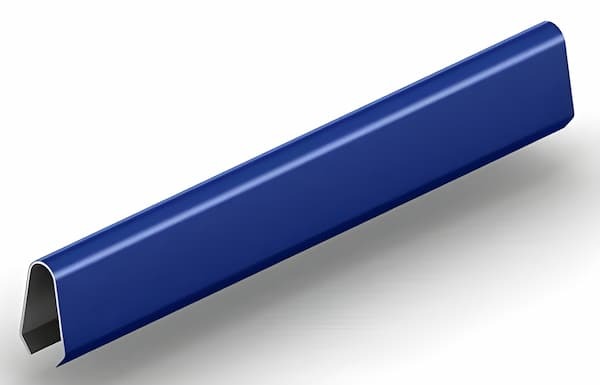

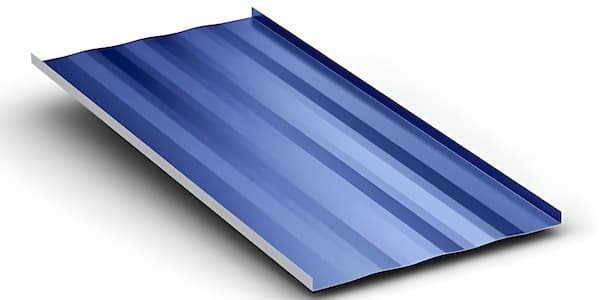

The Medallion I is a specialized architectural roofing system featuring a complete batten cover seam design with a 1-inch rib height. Standard widths of 12-, 16-, and 18-inches are available in 24-gauge steel. See the Roof Anchor Compatibility Chart for Architectural Building Components Medallion I Batten-Cap Standing Seam Metal Roofing.
Fall Protection for Medallion I
- Standard seam-mounted anchors are not compatible with Medallion I covers; peak-mounted protection is mandatory to preserve the system.
- Ridge Pro Recommendation: The Ridge Pro Steep Assist is the only recommended solution, providing a secure peak anchorage point for pitches between 6:12 and 12:12.
McElroy Metal Medallion II Batten-Cap Panels (Ridge Pro Only)

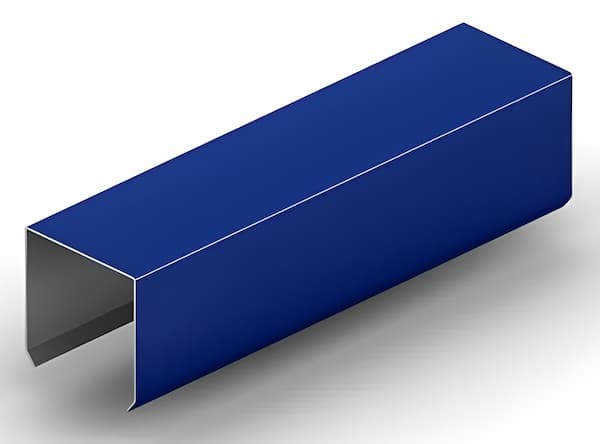

The Medallion II features a wider batten cover and a 1-inch rib height in 24-gauge steel. It is available in coverage widths of 12-, 16-, and 18-inches. See the Roof Anchor Compatibility Chart for Architectural Building Components Medallion II Batten-Cap Standing Seam Metal Roofing.
Fall Protection for Medallion II
- The broad batten cap prevents the use of seam-clamping hardware. Peak-mounted safety is required to avoid system damage.
- Ridge Pro Recommendation: Use The Ridge Pro Steep Assist for safe inspection tasks and 100 percent tie-off compliance on 6:12 to 12:12 pitch roofs.
McElroy Meridian Nailstrip Panels (Ridge Pro Only)

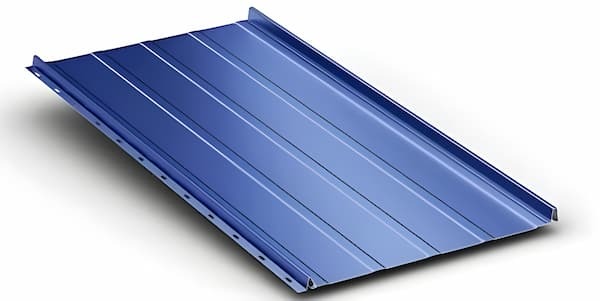

The Meridian is an economical architectural snap-together panel with a 1-inch rib height and a hidden nail flange. Panels are available in 12- and 16-inch widths and are made from 24- or 26-gauge steel. It requires a minimum roof slope of 3/12. See the Roof Anchor Compatibility Chart for Architectural Building Components Meridian Nailstrip Standing Seam Metal Roofing.
Fall Protection for Meridian
- Seam clamping is not permitted on nailstrip profiles. Peak-anchored hardware is the primary solution to prevent rib deformation.
- Ridge Pro Recommendation: Use The Ridge Pro Steep Assist for a 100 percent tie-off on pitches between 6:12 and 12:12.
Mirage II Panels (Ridge Pro Only)

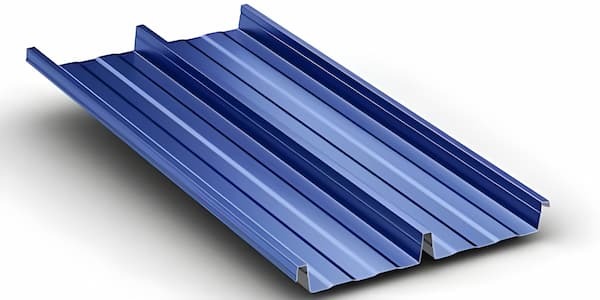

Mirage II is a snaplock system for low-slope roofs featuring a 1.75-inch seam height, 8-inch on-center rib design, and 24-gauge steel construction. It is suitable for slopes as low as 1/4:12. See the Roof Anchor Compatibility Chart for Architectural Building Components Mirage II Standing Seam Metal Roofing.
Fall Protection for Mirage II
- The Ridge Pro is the only recommended fall protection anchor for Mirage panels, securing at the roof ridge rather than the rib profile.
Standing Seam Panel Compatibility For 22-gauge Architectural Building Components
| McElroy-138T (22 Ga.) | McElroy-238T (22 Ga.) | MasterLok 90 (22 Ga.) | MasterLok-FS (22 Ga.) | RidgeLine (22 Ga.) | Maxima (22 Ga.) | |
|---|---|---|---|---|---|---|
SSRA 1 |
YES | YES | YES | YES | YES | YES |
SSRA1 Nylon Tip |
YES | YES | YES | YES | YES | YES |
SSRA2 Roof Jack |
YES | YES | YES | YES | YES | YES |
SSRA3 Anchor Plate |
YES | YES | YES | YES | YES | YES |
The Ridge Pro |
YES | YES | YES | YES | YES | YES |
Standing Seam Panel Compatibility For 24-gauge Architectural Building Components
| McElroy-138T (24 Ga.) | McElroy-238T (24 Ga.) | MasterLok 90 (24 Ga.) | MasterLok-FS (24 Ga.) | RidgeLine (24 Ga.) | Maxima (24 Ga.) | Medallion-Lok (24 Ga.) | Instaloc (24 Ga.) | |
|---|---|---|---|---|---|---|---|---|
| SSRA 1 |
NO | NO | NO | NO | NO | NO | NO | NO |
| SSRA1 Nylon Tip |
YES | YES | YES | YES | YES | YES | YES | YES |
| SSRA2 Roof Jack |
YES | YES | YES | YES | YES | YES | YES | YES |
| SSRA3 Anchor Plate |
YES | YES | YES | YES | YES | YES | YES | YES |
| The Ridge Pro |
YES | YES | YES | YES | YES | YES | YES | YES |
Standing Seam Roof Anchor Panel Compatibility For Architectural Building Components Cont.
| Medallion I Batten-Cap | Medallion II Batten-Cap | Mirage II | Meridian Nailstrip | |
|---|---|---|---|---|
| SSRA 1 |
NO | NO | NO | NO |
| SSRA1 Nylon Tip |
NO | NO | NO | NO |
| SSRA2 Roof Jack |
NO | NO | NO | NO |
| SSRA3 Anchor Plate |
NO | NO | NO | NO |
| The Ridge Pro |
YES | YES | YES | YES |
Shielding Your Firm from Liability: The Risk of Generic Hardware
A McElroy Metal roofing system represents a high-end engineering investment; your fall protection hardware should mirror that level of professionalism. Using unbranded, imported, or generic anchors poses significant legal and financial risks for your business. Regulatory inspectors are increasingly seeking safety equipment that includes verifiable third-party test data. Failing to provide documentation of compliance with OSHA 1926.502 and ANSI standards can result in immediate site shutdowns.
Beyond the fines, these incidents damage your safety rating and bonding capacity. If a roof anchor lacks a third-party paper trail, domestic technical support, or certified test reports, it is an unacceptable liability that has no place on a professional job site. American-made SSRA hardware provides the traceable reliability required for industrial-scale building envelopes. Review our full results in our independent laboratory test reports.
Professional Guidance for Standing Seam Safety
For expert advice on selecting the appropriate fall protection system for your McElroy Metal roof profile, contact our specialists today at 863-703-4522 or visit www.StandingSeamRoofAnchor.com. We are here to help you protect both your workers and your roof's warranty. For continued learning, you can download OSHA's 48-page Fall Protection Manual and our interactive Anchor Inspection Form once you have selected the ideal anchors for your system.
10 Critical Safety Rules for McElroy Metal Roofing Projects
- Protect First-Man-Up Workers: On pitches between 6:12 and 12:12, ensure workers use The Ridge Pro before stepping onto the panel surface. This tool protects the worker during the critical transition from the ladder to the peak.
- Conduct Daily Torque Verification: Set-screw tension can shift with use. Users must verify the set-screw torque at the beginning of the workday before each attachment to confirm that the anchors meet the required specifications and that no tampering or improper installation has occurred.
- Eliminate Clip-Location Guesswork: Traditional anchors require you to find hidden clips beneath the panel for a secure hold. The SSRA1 secures directly to the rib itself, providing a certified 5,000-pound anchor point regardless of clip location.
- Reject Uncertified Anchors: Do not risk your company's future on unbranded anchors. If a device lacks a verifiable third-party test report for compliance with OSHA 1926.502, it poses a liability risk that could lead to site-wide shutdowns.
- Minimize the Pendulum Risk: Always calculate your dynamic sag and fall distance. Keep the work zone within a 30-degree arc of the anchor point to prevent dangerous falls that could result in collisions with the ground or the building.
- Thermal Expansion Is Critical: McElroy panels expand and contract with temperature changes. Only use non-penetrating seam clamps that allow for this natural movement, preventing oil-canning of the steel.
- Avoid Metal Incompatibility: Galvanic corrosion can cause a roof to fail. Ensure you use only Stainless Steel set screws on McElroy steel panels to prevent chemical reactions that cause rust and structural weakness.
- Prepare for Rescue: Fall arrest is only half the battle. Equip all harnesses with trauma relief straps to prevent suspension trauma while workers wait for rescue teams.
- Prioritize Low-Torque Anchor Designs: High-torque, two-piece clamps can easily crush a standing seam, voiding the panel warranty. The SSRA1 low-torque design requires only 90 inch-pounds on 22-gauge steel to achieve a full-strength, non-destructive lock.
- Consult Safety Professionals for Specialized Shapes: Architectural McElroy projects often feature curved rooflines. A mandatory in-person inspection by a trained safety expert is recommended to determine the safest fall protection plan.
Disclaimer: The views, recommendations, and information presented in this blog are solely those of the author and do not necessarily reflect the opinions or positions of the featured panel manufacturer, its brands, subsidiaries, or parent companies. Customers are strongly encouraged to contact the roof panel manufacturer directly for inquiries about fall protection compatibility with their products and to address any potential warranty issues that may arise after installing our products.
