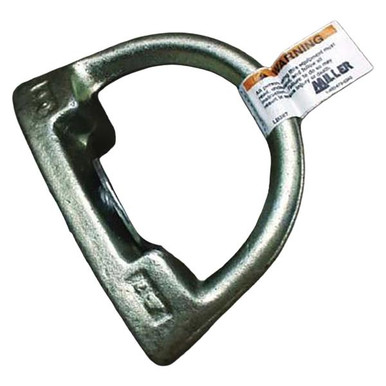

Permanent D-Bolt Concrete Anchor
The 417 is the set-and-forget concrete anchor: a drop-forged alloy steel D-bolt that installs through up to 4 inches of concrete and stays as a permanent, 5,000 lb rated tie-off point wherever recurring work needs one.
The single D-ring configuration gives one worker a dedicated anchorage that outlives the project.
Who Needs This Product
Permanent anchors pay for themselves wherever the same tie-off gets rigged repeatedly: rooftop units, loading areas, and plant access points. The 417 bolts through once and ends the daily strap-hunting, with forged steel built to weather for years.
Features
Drop-Forged Alloy Steel
Forged construction withstands harsh conditions and years of exposure.
Through-Bolt Design
Installs through up to 4 inches of concrete for a positive structural connection.
5,000 lb Tensile
Meets the OSHA anchorage number without engineering paperwork.
Single-Point Discipline
One D-ring, one worker, one clean system per anchor.
Low Profile
Stays out of the way between uses.
Permanent Value
Ends the daily temporary-anchor rigging at recurring work points.
Technical Specifications
| SKU | 417 |
|---|---|
| Product | Permanent D-Bolt Anchor |
| Material | Drop-forged alloy steel |
| Working thickness | Up to 4 in concrete |
| Rating | 5,000 lb tensile |
| Standards | Meets OSHA anchorage requirements |
| Warranty | Miller Limited Lifetime Warranty against defects in workmanship and materials |
The anchor is only as good as the structure. Connect only to members that meet OSHA anchorage strength, position to minimize free fall and swing, and inspect before every use.
Compliance Standards
OSHA 1926.502 Anchorage
Anchorages for fall arrest must support 5,000 lb per worker attached, or maintain a safety factor of two under a qualified person.
ANSI Z359 Practice
Anchorage connectors follow ANSI Z359 component practice with 5,000 lb rated hardware.
ANSI Z359.2
Kept in service through pre-use checks and documented competent person inspections at least annually.
Typical Applications
Setup Overview
- Inspect the anchor and hardware before use.
- Select structure that meets OSHA anchorage strength for fall arrest.
- Install the anchor per the instructions for the structure type.
- Connect the lanyard or SRL and verify gates lock.
- Verify fall clearance and swing fall exposure before working.
Full installation instructions ship with the product.
Inspection and Retirement
Inspect before each use and have a competent person inspect at least annually per ANSI Z359.2.
- Webbing or body: cuts, frays, corrosion, cracks, distortion, or damage.
- D-rings and hooks: no cracks, corrosion, distortion; gates lock where fitted.
- Stitching and fasteners: intact and tight.
- Labels: present and legible.
Retirement triggers: any fall arrest loading, any defect found during inspection, or failure to verify fitness for service.
