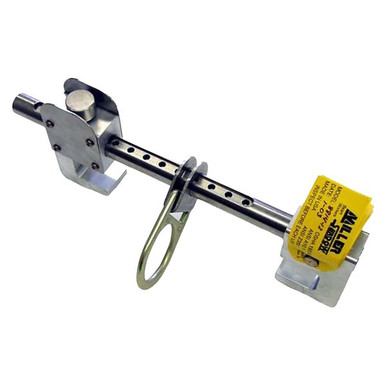

Adjustable Beam Anchor, 4 to 12 Inch Flanges
The 8814-12 clamps the flange and becomes the anchor: stainless steel and aluminum construction sliding smoothly to fit any beam from 4 to 12 inches, locking down in seconds, and giving the worker a rated tie-off that travels the steel with the job.
Built for horizontal mobility on steel, the anchor sets, slides, and resets without tools.
Who Needs This Product
Beam anchors are the steelworker's cross-arm strap: faster to set than a wrap, kinder to the flange, and positioned exactly where the D-ring should be. The wide 4 to 12 inch range means one anchor fits nearly every beam on site, and the corrosion-resistant build keeps it in the gang box for years.
Features
Wide 4-12 Inch Range
One anchor spans nearly every flange on a typical steel job.
Smooth Slide Adjustment
The mechanism opens, positions, and locks without tools or hammering.
Stainless and Aluminum
Corrosion-resistant metals built for outdoor steel work.
Secure Clamping
Positive lock-up keeps the anchor where it was set.
Horizontal Mobility
Repositions along the beam as the work moves.
System Interface
The anchor point accepts snap hooks and carabiners from any compliant system.
Technical Specifications
| SKU | 8814-12 |
|---|---|
| Product | Adjustable Beam Anchor |
| Flange range | 4 to 12 in |
| Materials | Stainless steel and aluminum |
| Adjustment | Sliding, tool-free |
| Standards | Meets OSHA anchorage requirements |
| Warranty | Miller Limited Lifetime Warranty against defects in workmanship and materials |
The anchor is only as good as the structure. Connect only to members that meet OSHA anchorage strength, position to minimize free fall and swing, and inspect before every use.
Compliance Standards
OSHA 1926.502 Anchorage
Anchorages for fall arrest must support 5,000 lb per worker attached, or maintain a safety factor of two under a qualified person.
ANSI Z359 Practice
Anchorage connectors follow ANSI Z359 component practice with 5,000 lb rated hardware.
ANSI Z359.2
Kept in service through pre-use checks and documented competent person inspections at least annually.
Typical Applications
Setup Overview
- Inspect the anchor and hardware before use.
- Select structure that meets OSHA anchorage strength for fall arrest.
- Install the anchor per the instructions for the structure type.
- Connect the lanyard or SRL and verify gates lock.
- Verify fall clearance and swing fall exposure before working.
Full installation instructions ship with the product.
Inspection and Retirement
Inspect before each use and have a competent person inspect at least annually per ANSI Z359.2.
- Webbing or body: cuts, frays, corrosion, cracks, distortion, or damage.
- D-rings and hooks: no cracks, corrosion, distortion; gates lock where fitted.
- Stitching and fasteners: intact and tight.
- Labels: present and legible.
Retirement triggers: any fall arrest loading, any defect found during inspection, or failure to verify fitness for service.
