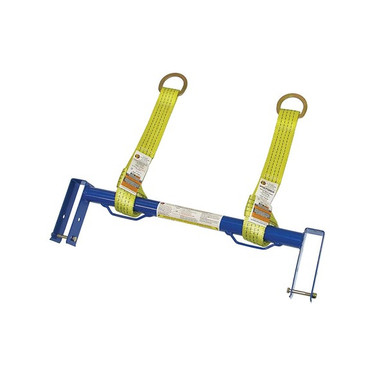

Super Anchor TrussBar Roof Anchor, Bolt-On, 2833
The Super Anchor 2833 TrussBar is a temporary roof anchor for 2x4 and 2x6 trusses with a bolt-on attachment, blue powder coated, including two 6047-C 24 inch truss bar straps. When the build is done, cut the straps and the bar stays harmlessly on the truss. The detent pin model is listed separately.
When the house is finished, the roofer cuts off the straps and the TrussBar stays attached to the truss but is no longer usable. It is made from heavy duty mild steel with 2 foot tie-off straps, and two workers can use it for fall arrest. Choose the 2833 bolt attachment or the 2833-DP detent pin attachment.
Who Needs This Product
The TrussBar is a temporary roof anchor for production builders and framers who need a robust deck-over anchor point during framing and sheeting. It protects all trades through the sheeting stage and is disabled when the roof is finished. Complete the system with full-body harnesses and energy-absorbing connecting devices.
Features
Deck over design
Install on the truss, deck over the top, and the tie-off straps stay exposed for all trades.
Protects all trades
Provides tie-off points during framing and sheeting for everyone on the roof.
Two person fall arrest
Up to two workers can use the TrussBar for fall arrest.
Heavy duty mild steel
Robust steel construction with 2 foot tie-off straps.
Bolt or detent pin
Choose the 2833 bolt attachment or the 2833-DP detent pin attachment.
Disabled at completion
The roofer cuts the straps when the house is finished and the bar is no longer usable.
This is a temporary anchor, not a complete system. A personal energy absorber is required. Install onto framing capable of 5,000 lb, use full-body harnesses with connecting devices, and confirm fall clearance. Run the Fall Protection Calculator below before you tie off.
Compliance Standards
OSHA 29 CFR 1926.502
Federal construction fall protection anchorage requirements.
ANSI Z359.1
American National Standard for fall arrest components.
Typical Applications
How to Install the TrussBar
Follow the Super Anchor Safety instruction manual. The sequence below is an overview only.
- Locate the anchors. Install the TrussBar onto trusses at predetermined locations per a competent-person layout.
- Attach. Fasten with the bolt (2833) or the detent pin (2833-DP).
- Use during framing. Tie off during the framing and sheeting stages.
- Deck over. Deck over the top of the TrussBar and feed the tie-off straps up through or between the sheeting.
- Disable at completion. The roofer cuts off the straps when the house is finished.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least annually. Remove the product from service for any condition below.
- Anchor body: cracks, deformation, corrosion, or elongated holes.
- Coating: worn or damaged galvanizing, dacromet, or powder coat at the connection point.
- Fasteners and flashing: loose, missing, backed-out, or leaking hardware.
- D-ring or connection point: burrs, sharp edges, or excessive wear.
- Labels: illegible or missing product identification.
Retire the anchor immediately after any fall-arrest event, or if any inspection point fails.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| SKU | 2833 (bolt attachment) |
|---|---|
| Manufacturer Part Number | 2833 / 2833-DP |
| Type | Temporary deck-over roof anchor |
| Material | Heavy duty mild steel with 2 ft tie-off straps |
| Cross-bar | 1-1/2 in by 1-1/2 in by 1/8 in square steel tube |
| Detent pins | 3/8 in stainless steel, 14,770 lb tensile strength |
| Capacity | Up to 2 persons fall arrest or fall restraint |
| Min tensile strength | 5,000 lb (22.5 kN) |
| Max user weight | 310 lb (140 kg) |
| Fits | 2x4 and 2x6 trusses |
| Standards | OSHA 1926.502 and 1910.66; ANSI Z359.1 |
| Warranty | Super Anchor Safety manufacturer warranty; see Warranty tab |
Frequently Asked Questions
Super Anchor TrussBar Submittals and Documentation
Safety Truss Bar Manual 2023 (PDF)Use, installation, capacity, and inspection. Moveable Universal Safety Bar Guide (PDF)Safety bar application and use. Warranty and Compliance Statement (PDF)Manufacturer warranty and standards compliance.Related Super Anchor Products
Framing a Production Roof?
Anchor spacing, truss size, and the number of trades all affect coverage. Confirm your job with us and we will help match the right TrussBar attachment and PPE.
Call 863-703-4522 to talk to a fall protection specialist.
Super Anchor Safety Manufacturer Warranty
Super Anchor Safety (SAS) warrants to the purchaser that all products are free from defect in material and workmanship at the time of shipment. This warranty is limited to product replacement for a period of one (1) year from the date of installation or use by the owner, provided that this period shall not exceed two (2) years from the date of shipment. This warranty only covers defects in material and workmanship. It does not cover conditions resulting from normal wear, neglect, abuse, or accident. This product warranty does not cover oxidation of zinc, dacromet, or powder coatings used on permanent and temporary anchors that results from connector abrasion unless the coating can be shown to be defective at the time of purchase. This warranty is non-transferable. Any unused defective product will be replaced at no charge by returning the product to Super Anchor Safety or to the distributor the product was purchased from.
Permanent Anchor Warranty
Super Anchor Safety warrants to the purchaser that all anchors sold as a permanent fixture with Hot Dip Galvanizing, Stainless Steel, and Thermo-Plastic finishes are fully warranted against failure due to defects in materials or workmanship for a period of five (5) years from the date of initial installation. SAS does not warranty the installation or flashing system used to waterproof the anchors. The SAS factory warranty is void if the product has been modified or has not been used in accordance with SAS specifications and instructions for that product. Anchors that have been removed from service due to re-roofing or remodel of the structure they were originally attached to must be inspected by an SAS factory representative or a competent person before being reinstalled.
See the Super Anchor Warranty and Compliance Statement (PDF) for the full manufacturer document.
