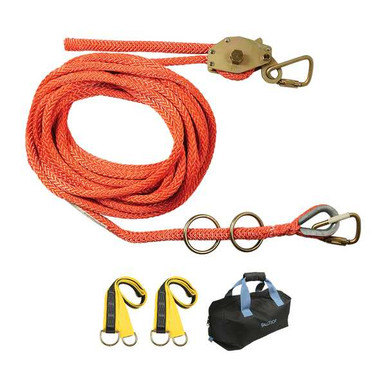

FallTech 770001 100 ft 2-Person Polyester Rope Temporary HLL
FallTech

FallTech 100 ft 2-Person Polyester Rope Temporary HLL

(No reviews yet) Write a Review
$1,047.50
Brand:
FallTech
SKU:
770001
Availability:
Usually ships in 1 business day
Shipping:
Calculated at Checkout
Adding to cart… The item has been added
American Express Icon American Express Icon Discover Icon Discover Icon Mastercard Icon Mastercard Icon PayPal Icon PayPal Icon Visa Icon Visa Icon
FallTech Horizontal Lifelines

FallTech 100 ft 2-Person Polyester Rope Temporary HLL

Features 5/8" low-stretch hollow-core polyester rope with one braided and thimbled end-termination. Includes plated steel line tensioner and 2 installation carabiners.

Also includes 2 pass-through anchors and 2 connecting rings. Meets OSHA 1926.502 and 1910.66 regulations.

FallTech 770001 100 ft 2-Person Polyester Rope Temporary HLL
2 WorkersMax Per System
310 lbPer User Capacity
5,000 lbStatic Strength
5/8 inPolyester Rope
12-StrandHollow-Core Braid
Low-StretchRope Design
100 ftSpan Length
IncludedPass-Through Anchors

Who Needs This Product

Roofing crews, steel erectors, and general contractors use a temporary rope horizontal lifeline to give two or more workers continuous tie-off across a span without repositioning single-point anchors. Rope systems are the light, fast option for wood and membrane roofs, concrete decks, and short-duration jobs where the system moves daily. Each worker still needs a full-body harness and an energy-absorbing connector to ride the line.

Features

Features 5/8" low-stretch hollow-core polyester

Features 5/8" low-stretch hollow-core polyester rope with one braided and thimbled end-termination.

Includes plated steel line tensioner

Includes plated steel line tensioner and 2 installation carabiners.

Also includes 2 pass-through anchors

Also includes 2 pass-through anchors and 2 connecting rings.

Meets OSHA 1926.502 and 1910.66

Meets OSHA 1926.502 and 1910.66 regulations.

⚠

The lifeline is the anchorage, not the system. Each worker still needs a full-body harness and an energy-absorbing connector, and a horizontal lifeline deflects during fall arrest. Add the deflection from the manual to your fall clearance calculation, and install under a qualified person per OSHA 1926.502(d)(8).

Compliance Standards

OSHA 1926.502

Applicable requirement for this equipment: OSHA 1926.502 and 1910.66.

1910.66

Applicable requirement for this equipment: OSHA 1926.502 and 1910.66.

OSHA 1926.502(d)(8)

Horizontal lifelines must be designed, installed, and used under the supervision of a qualified person, as part of a complete personal fall arrest system.

Typical Applications

Residential roofingContinuous tie-off across trusses and ridge lines.
Commercial roofingMembrane, coating, and sheet metal work on low-slope roofs.
Concrete decksTie-off during forming, pouring, and finishing.
Steel erectionTemporary spans between erected columns.
Short-duration jobsSystems that set up and tear down daily.
Multi-trade sitesShared tie-off for framing, mechanical, and roofing crews.

How to Use

Follow the FallTech instruction manual. The sequence below is an overview only.

  1. Select the anchors. Choose two end anchorage points that meet the strength requirements in the FallTech manual for the number of users.
  2. Rig the span. Wrap the pass-through sling anchors, connect the rope, and route it clear of edges and obstructions.
  3. Tension the line. Use the integrated line tensioner to remove slack per the manual.
  4. Connect the workers. Each worker ties off to a connecting ring with an energy-absorbing lanyard or SRL after verifying fall clearance including line deflection.
  5. Move it as work progresses. Tear down and re-rig in minutes when the crew shifts to the next span.

Inspection and Retirement

Inspect the complete system before each use. A competent person must perform a documented inspection at least every six months under ANSI Z359.2 practice.

  • Rope: cuts, fraying, burns, chemical damage, glazing, and flat spots.
  • Energy absorber: no deployment, tearing, or activation evidence.
  • Tensioner and rings: no cracks, deformation, or corrosion; smooth operation.
  • Sling anchors: webbing free of cuts, burns, and UV damage; D-rings undamaged.
  • Carabiners: gates close and lock fully under spring tension.

Retirement triggers: any fall event on the system, energy absorber deployment, rope or hardware damage, or any condition the inspector cannot verify as safe.

Fall Protection Distributors logo Fall Protection
Distributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k). Run the Numbers and Stay Safe Launch the Calculator ›

Technical Specifications

Type2-Person System
SKU770001
Static Strength5,000 lb min.
OSHA User Capacity310 lb max. per user; 2 users max.
Rope5/8" braided 12-strand hollow-core polyester; 5,000 lb min.
Sling AnchorsPolyester webbing with plated alloy steel D-rings; 5,000 lb min. static strength
CarabinersPlated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Tensioner and Connecting RingsPlated alloy steel; 5,000 lb min. static strength
StandardsOSHA 1926.502 and 1910.66
WarrantyFallTech 2-year limited warranty against defects in materials and workmanship

Frequently Asked Questions

How many workers can tie off to this system?
The system is rated for a maximum of 2 workers at 310 lb each, including clothing and tools. Each worker connects to a connecting ring with an energy-absorbing lanyard or SRL.
Is this a complete fall arrest system?
No. A horizontal lifeline is the anchorage portion only. Each worker also needs a full-body harness and a compatible energy-absorbing connector, plus end anchor points that meet the strength requirements in the FallTech manual.
What anchors does the system connect to?
The kit includes two polyester web pass-through sling anchors rated at 5,000 lb minimum. Wrap them around structural members that meet the manual's strength requirements for the number of users.
How much clearance do I need below the work surface?
A horizontal lifeline deflects during fall arrest, and the longer the span, the more it sags. Add the system deflection from the manual to your connector's free fall and deceleration distance when you calculate fall clearance. Our free Fall Protection Calculator on this page runs the math.
What is the rope made of?
The 2-person kernmantle kit runs 11/16 in braided 32-strand solid-core nylon, the 770001 runs 5/8 in low-stretch hollow-core polyester, and the 4-person system runs 5/8 in double-braid polyester at 6,000 lb minimum static strength.
How does the energy absorber work?
A polyester tear-away absorber is integrated at the tensioner. During a fall arrest it deploys progressively, limiting the loads transmitted to the end anchors and the workers on the line.
Does this meet OSHA requirements?
Yes. The system meets OSHA 1926.502 requirements when installed under the supervision of a qualified person per 1926.502(d)(8), with anchorages and clearances per the FallTech manual.

FallTech 770001 Submittals and Documentation

770001 Instruction Manual (PDF)Installation, use, capacity, and inspection procedures. 770001 Spec Sheet (PDF)Full specifications, features, and compliance summary for submittal packages.

Complete Your Horizontal Lifeline System

Specifying a Horizontal Lifeline for Your Crew?

The right system depends on your span, structure, crew size, and the clearance below. Confirm your application with us and we will make sure every component matches before it ships.

Call 863-703-4522 to talk to a fall protection specialist.

FallTech provides a 2-year limited warranty against defects in materials and workmanship on the FallTech product. The warranty is void if the product is altered, misused, or damaged by neglect, abuse, or accident, and it excludes normal wear. Fall Protection Distributors, LLC passes through the manufacturer warranty to the original purchaser.
