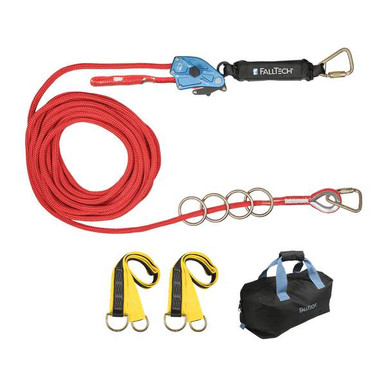

FallTech 4-Person Temporary Rope HLL System
High-strength, durable 5/8" double braid polyester rope lifeline with steel thimble and stitched end-termination. Exclusive line tensioner assembly with integral energy absorber and anchorage-end carabiner.
Includes 4 connecting rings, 2 heavy-duty pass-through anchor straps, and additional thimble-end carabiner. 18" gear bag provides suitable storage and transportation of the HLL system.
Who Needs This Product
Roofing crews, steel erectors, and general contractors use a temporary rope horizontal lifeline to give two or more workers continuous tie-off across a span without repositioning single-point anchors. Rope systems are the light, fast option for wood and membrane roofs, concrete decks, and short-duration jobs where the system moves daily. Each worker still needs a full-body harness and an energy-absorbing connector to ride the line.
Features
High-strength
High-strength, durable 5/8" double braid polyester rope lifeline with steel thimble and stitched end-termination.
Exclusive line tensioner assembly
Exclusive line tensioner assembly with integral energy absorber and anchorage-end carabiner.
Includes 4 connecting rings
Includes 4 connecting rings, 2 heavy-duty pass-through anchor straps, and additional thimble-end carabiner.
18" gear bag provides suitable
18" gear bag provides suitable storage and transportation of the HLL system.
Meets OSHA 1926.502 regulations
Meets OSHA 1926.502 regulations.
The lifeline is the anchorage, not the system. Each worker still needs a full-body harness and an energy-absorbing connector, and a horizontal lifeline deflects during fall arrest. Add the deflection from the manual to your fall clearance calculation, and install under a qualified person per OSHA 1926.502(d)(8).
Compliance Standards
OSHA 1926.502
Applicable requirement for this equipment: OSHA 1926.502.
OSHA 1926.502(d)(8)
Horizontal lifelines must be designed, installed, and used under the supervision of a qualified person, as part of a complete personal fall arrest system.
Typical Applications
How to Use
Follow the FallTech instruction manual. The sequence below is an overview only.
- Select the anchors. Choose two end anchorage points that meet the strength requirements in the FallTech manual for the number of users.
- Rig the span. Wrap the pass-through sling anchors, connect the rope, and route it clear of edges and obstructions.
- Tension the line. Use the integrated line tensioner to remove slack per the manual.
- Connect the workers. Each worker ties off to a connecting ring with an energy-absorbing lanyard or SRL after verifying fall clearance including line deflection.
- Move it as work progresses. Tear down and re-rig in minutes when the crew shifts to the next span.
Inspection and Retirement
Inspect the complete system before each use. A competent person must perform a documented inspection at least every six months under ANSI Z359.2 practice.
- Rope: cuts, fraying, burns, chemical damage, glazing, and flat spots.
- Energy absorber: no deployment, tearing, or activation evidence.
- Tensioner and rings: no cracks, deformation, or corrosion; smooth operation.
- Sling anchors: webbing free of cuts, burns, and UV damage; D-rings undamaged.
- Carabiners: gates close and lock fully under spring tension.
Retirement triggers: any fall event on the system, energy absorber deployment, rope or hardware damage, or any condition the inspector cannot verify as safe.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Type | 4-Person System |
|---|---|
| SKU | 772X |
| User Capacity | max. 4 users. 130 lb up to 310 lb each |
| System Strength | 6,000 lb Min Static Strength |
| Rope | 5/8" Double-braid Polyester Rope; 6,000 lb min. static strength |
| Connecting Rings | Plated alloy steel; 5,000 lb min. static strength |
| Carabiners | Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength |
| Sling Anchors | Polyester webbing with plated alloy steel D-rings; 5,000 lb min. static strength |
| Available Configurations | 772030 (30 ft), 772060 (60 ft), 772100 (100 ft) |
| Standards | OSHA 1926.502 |
| Warranty | FallTech 2-year limited warranty against defects in materials and workmanship |
Frequently Asked Questions
