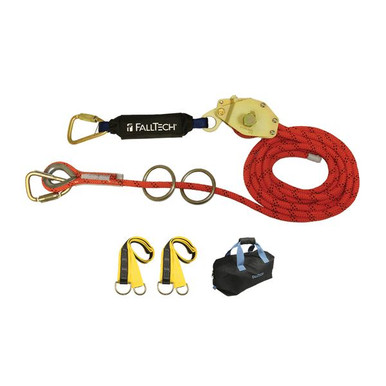

FallTech 77302K 2-Person Kernmantle Rope Temporary HLL Kit with 30 ft
FallTech

FallTech 2-Person Kernmantle Rope Temporary HLL Kit

(No reviews yet) Write a Review
$806.50 - $900.00
Brand:
FallTech
SKU:
77002K
Availability:
Usually ships in 1 business day
Shipping:
Calculated at Checkout
Adding to cart… The item has been added
American Express Icon American Express Icon Discover Icon Discover Icon Mastercard Icon Mastercard Icon PayPal Icon PayPal Icon Visa Icon Visa Icon
FallTech Horizontal Lifelines

FallTech 2-Person Kernmantle Rope Temporary HLL Kit

Features 11/16" solid-core nylon kernmantle rope with one sewn and thimbled end-termination. Plated steel line tensioner features integrated energy absorber with carabiner.

Also includes 2 pass-through anchors, 2 connecting rings, additional carabiner and storage bag. Meets OSHA 1926.502 and 1910.66 regulations.

FallTech 77302K 2-Person Kernmantle Rope Temporary HLL Kit
2 WorkersMax Per System
310 lbPer User Capacity
5,000 lbStatic Strength
11/16 inNylon Kernmantle
32-StrandSolid-Core Rope
Tear-AwayEnergy Absorber
30 to 100 ftSpan Options
IncludedPass-Through Anchors

Who Needs This Product

Roofing crews, steel erectors, and general contractors use a temporary rope horizontal lifeline to give two or more workers continuous tie-off across a span without repositioning single-point anchors. Rope systems are the light, fast option for wood and membrane roofs, concrete decks, and short-duration jobs where the system moves daily. Each worker still needs a full-body harness and an energy-absorbing connector to ride the line.

Features

Features 11/16" solid-core nylon kernmantle

Features 11/16" solid-core nylon kernmantle rope with one sewn and thimbled end-termination.

Plated steel line tensioner features

Plated steel line tensioner features integrated energy absorber with carabiner.

Also includes 2 pass-through anchors

Also includes 2 pass-through anchors, 2 connecting rings, additional carabiner and storage bag.

Meets OSHA 1926.502 and 1910.66

Meets OSHA 1926.502 and 1910.66 regulations.

⚠

The lifeline is the anchorage, not the system. Each worker still needs a full-body harness and an energy-absorbing connector, and a horizontal lifeline deflects during fall arrest. Add the deflection from the manual to your fall clearance calculation, and install under a qualified person per OSHA 1926.502(d)(8).

Compliance Standards

OSHA 1926.502

Applicable requirement for this equipment: OSHA 1926.502 and 1910.66.

1910.66

Applicable requirement for this equipment: OSHA 1926.502 and 1910.66.

OSHA 1926.502(d)(8)

Horizontal lifelines must be designed, installed, and used under the supervision of a qualified person, as part of a complete personal fall arrest system.

Typical Applications

Residential roofingContinuous tie-off across trusses and ridge lines.
Commercial roofingMembrane, coating, and sheet metal work on low-slope roofs.
Concrete decksTie-off during forming, pouring, and finishing.
Steel erectionTemporary spans between erected columns.
Short-duration jobsSystems that set up and tear down daily.
Multi-trade sitesShared tie-off for framing, mechanical, and roofing crews.

How to Use

Follow the FallTech instruction manual. The sequence below is an overview only.

  1. Select the anchors. Choose two end anchorage points that meet the strength requirements in the FallTech manual for the number of users.
  2. Rig the span. Wrap the pass-through sling anchors, connect the rope, and route it clear of edges and obstructions.
  3. Tension the line. Use the integrated line tensioner to remove slack per the manual.
  4. Connect the workers. Each worker ties off to a connecting ring with an energy-absorbing lanyard or SRL after verifying fall clearance including line deflection.
  5. Move it as work progresses. Tear down and re-rig in minutes when the crew shifts to the next span.

Inspection and Retirement

Inspect the complete system before each use. A competent person must perform a documented inspection at least every six months under ANSI Z359.2 practice.

  • Rope: cuts, fraying, burns, chemical damage, glazing, and flat spots.
  • Energy absorber: no deployment, tearing, or activation evidence.
  • Tensioner and rings: no cracks, deformation, or corrosion; smooth operation.
  • Sling anchors: webbing free of cuts, burns, and UV damage; D-rings undamaged.
  • Carabiners: gates close and lock fully under spring tension.

Retirement triggers: any fall event on the system, energy absorber deployment, rope or hardware damage, or any condition the inspector cannot verify as safe.

Fall Protection Distributors logo Fall Protection
Distributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k). Run the Numbers and Stay Safe Launch the Calculator ›

Technical Specifications

Type2-Person System
SKU77002K
Static Strength5,000 lb min.
OSHA User Capacity310 lb max. per user; 2 users max.
Rope11/16" braided 32-strand solid-core nylon kernmantle; 5,000 lb min.
Sling AnchorsPolyester webbing with plated alloy steel D-rings; 5,000 lb min. static strength
CarabinersPlated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Tensioner and Connecting RingsPlated alloy steel; 5,000 lb min. static strength
Available Configurations77302K (30 ft), 77602K (60 ft), 771002K (100 ft)
StandardsOSHA 1926.502 and 1910.66
WarrantyFallTech 2-year limited warranty against defects in materials and workmanship

Frequently Asked Questions

How many workers can tie off to this system?
The system is rated for a maximum of 2 workers at 310 lb each, including clothing and tools. Each worker connects to a connecting ring with an energy-absorbing lanyard or SRL.
Is this a complete fall arrest system?
No. A horizontal lifeline is the anchorage portion only. Each worker also needs a full-body harness and a compatible energy-absorbing connector, plus end anchor points that meet the strength requirements in the FallTech manual.
What anchors does the system connect to?
The kit includes two polyester web pass-through sling anchors rated at 5,000 lb minimum. Wrap them around structural members that meet the manual's strength requirements for the number of users.
How much clearance do I need below the work surface?
A horizontal lifeline deflects during fall arrest, and the longer the span, the more it sags. Add the system deflection from the manual to your connector's free fall and deceleration distance when you calculate fall clearance. Our free Fall Protection Calculator on this page runs the math.
What is the rope made of?

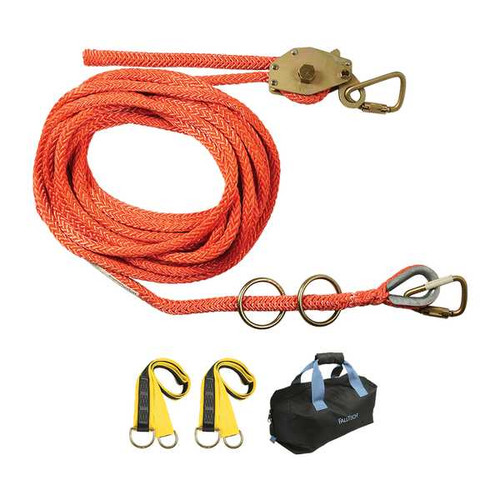

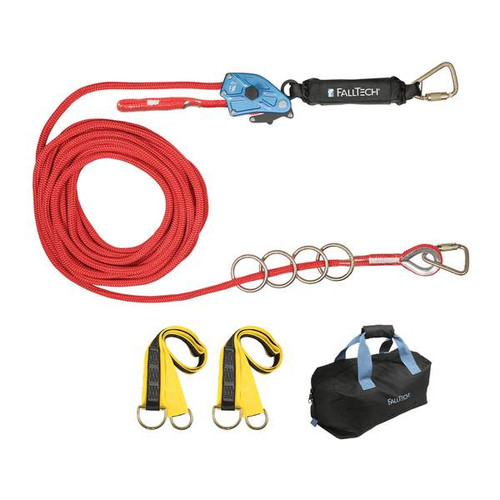

The 2-person kernmantle kit runs 11/16 in braided 32-strand solid-core nylon, the 770001 runs 5/8 in low-stretch hollow-core polyester, and the 4-person system runs 5/8 in double-braid polyester at 6,000 lb minimum static strength.
How does the energy absorber work?
A polyester tear-away absorber is integrated at the tensioner. During a fall arrest it deploys progressively, limiting the loads transmitted to the end anchors and the workers on the line.
Does this meet OSHA requirements?
Yes. The system meets OSHA 1926.502 requirements when installed under the supervision of a qualified person per 1926.502(d)(8), with anchorages and clearances per the FallTech manual.

FallTech 77302K Submittals and Documentation

77002K Declaration of Conformity (PDF)Manufacturer conformity certification for compliance files and submittal packages. 77002K Instruction Manual (PDF)Installation, use, capacity, and inspection procedures. 77002K Sell Sheet / Brochure (PDF)Specifications, dimensions, and feature summary.

Complete Your Horizontal Lifeline System

Specifying a Horizontal Lifeline for Your Crew?

The right system depends on your span, structure, crew size, and the clearance below. Confirm your application with us and we will make sure every component matches before it ships.

Call 863-703-4522 to talk to a fall protection specialist.

FallTech provides a 2-year limited warranty against defects in materials and workmanship on the FallTech product. The warranty is void if the product is altered, misused, or damaged by neglect, abuse, or accident, and it excludes normal wear. Fall Protection Distributors, LLC passes through the manufacturer warranty to the original purchaser.
0 Reviews Hide Reviews Show Reviews

About FallTech

FallTech is a well-known brand that provides reliable fall protection solutions. Based in Compton, CA, it is committed to maintaining every product's highest safety and quality standards. FallTech is an accredited manufacturer under ISO 9001:2015 and has an in-house test lab accredited under ISO 17025, which ensures that every product undergoes rigorous testing to comply with ANSI, C.S.A., and OSHA standards. Their product range includes full-body harnesses, shock-absorbing lanyards, anchors, and self-retracting lifelines (S.R.L.s), all designed and built in the U.S.A. to minimize exposure to fall arrest forces. FallTech is a brand dedicated to saving lives through superior fall protection engineering and uncompromising quality. One of their core values is to "never overpromise, yet always overdeliver." Many customers ask for FallTech products by name, and substitutions are prohibited. The brand has a reputation for providing comprehensive fall protection solutions that meet the highest safety standards and is committed to delivering on its promises.
