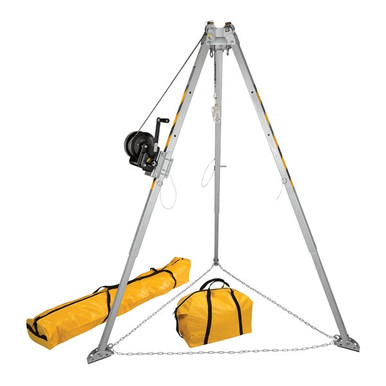

FallTech 8 ft Tripod Kit with 60 ft Technora Winch
System Kit includes Tripod, 60' Technora rope Personnel Winch, leg bracket and leg safety chain. Aluminum tripod features 2-stage telescoping legs with 5' to 8' height adjustment.
Also features two integral pulleys with auxiliary eyebolts for additional anchoring. Pulleys are specifically designed for use with FallTech Technora Rope Winches and 3-way SRL-Rs.
Who Needs This Product
Contractors and plant safety managers who want a complete, matched confined space system in one order choose a tripod kit. Every component is sized to work together, which removes the guesswork of pairing devices, brackets, and storage, and gets a compliant entry and retrieval system on site in a single purchase.
Features
System Kit includes Tripod
System Kit includes Tripod, 60' Technora rope Personnel Winch, leg bracket and leg safety chain.
Aluminum tripod features 2-stage telescoping
Aluminum tripod features 2-stage telescoping legs with 5' to 8' height adjustment.
Also features two integral pulleys
Also features two integral pulleys with auxiliary eyebolts for additional anchoring.
Pulleys are specifically designed for
Pulleys are specifically designed for use with FallTech Technora Rope Winches and 3-way SRL-Rs.
Kit also includes 70" Tripod
Kit also includes 70" Tripod and 20" Device storage bags.
System Kit contains: Tripod: 7276T
System Kit contains: Tripod: 7276T Winch: 7297T.
A kit covers the equipment, not the program. OSHA 1910.146 still requires atmospheric testing, an attendant, and a written permit program for permit-required spaces. This system provides the anchor, lifting, and retrieval hardware that program calls for.
Compliance Standards
For ANSI
Applicable requirement for this equipment: For ANSI and OSHA compliance, please see individual component part #s.
OSHA compliance
Applicable requirement for this equipment: For ANSI and OSHA compliance, please see individual component part #s.
please see individual component part #s
Applicable requirement for this equipment: For ANSI and OSHA compliance, please see individual component part #s.
OSHA 1910.146
Permit-required confined space regulation that drives retrieval and rescue equipment requirements for entry work.
Typical Applications
How to Use
Follow the FallTech instruction manual. The sequence below is an overview only.
- Set the tripod. Position it over the portal, extend the legs to the working height, and secure the leg safety chain.
- Mount the device. Attach the included device to the tripod leg bracket and route the line over the head sheave.
- Connect the entrant. Attach the lifeline to the entrant's dorsal D-ring and verify device operation before entry.
- Rescue without entering. Shift the SRL-R into retrieval mode or use the winch to raise the entrant from outside the space.
- Store the system. Return all components to the included storage bags after use.
Inspection and Retirement
Inspect each component before use following its manual. A competent person must inspect the full system at least annually.
- Tripod: legs, pins, sheaves, feet, and safety chain.
- Device: housing, lifeline, snap hook, brakes, and retrieval mode.
- Connectors: gates close and lock fully; no cracks or corrosion.
- Bags and labels: labels legible; date of first use recorded.
Retirement triggers: any device that has arrested a fall must be removed from service, and the full system re-inspected before it returns to work.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Type | 8' System with Personnel Winch |
|---|---|
| SKU | 7507T |
| All Performance Specifications | Please see each component part # for individual performance specifications |
| All Material Specifications | Please see each component Part # for individual material specifications |
| Standards | For ANSI and OSHA compliance, please see individual component part #s |
| Warranty | FallTech 2-year limited warranty against defects in materials and workmanship |
Frequently Asked Questions
FallTech 7507T Submittals and Documentation
7507T Instruction Manual (PDF)Installation, use, capacity, and inspection procedures. 7507T Spec Sheet (PDF)Full specifications, features, and compliance summary for submittal packages. 7507T 7276 Instruction Manual (PDF)Installation, use, capacity, and inspection procedures. 7507T 7276 Declaration of Conformity (PDF)Manufacturer conformity certification for compliance files and submittal packages. 7507T 7297T Instruction Manual (PDF)Installation, use, capacity, and inspection procedures.Complete Your Confined Space System
