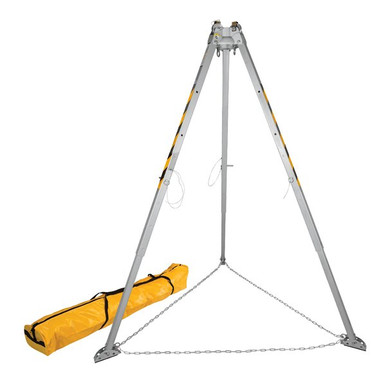

FallTech 7276T Confined Space Tripod 5 to 8 ft with Technora Kit
FallTech

FallTech Confined Space Tripod 5 to 8 ft with Technora Kit

(No reviews yet) Write a Review
$2,180.00
Brand:
FallTech
SKU:
7276T
Availability:
Usually ships in 1 business day
Shipping:
Calculated at Checkout
Adding to cart… The item has been added
American Express Icon American Express Icon Discover Icon Discover Icon Mastercard Icon Mastercard Icon PayPal Icon PayPal Icon Visa Icon Visa Icon
FallTech Confined Space

FallTech Confined Space Tripod 5 to 8 ft with Technora Kit

8' Adjustable Confined Space Tripod. Tripod features extruded aluminum 2-stage telescoping legs with 5' to 8' height adjustment.

Includes two integral head-mounted pulleys and two auxiliary anchoring eyebolts. Pulleys are specifically designed for use with FallTech Technora Rope Winches and 3-way SRL-Rs.

FallTech 7276T Confined Space Tripod 5 to 8 ft with Technora Kit
5 to 8 ftHeight Adjustment
425 lbOSHA User Capacity
5,000 lbStatic Strength
TechnoraRope-Ready Pulleys
55 to 91 inInternal Work Height
2Anchor Eyebolts
Aluminum2-Stage Legs
50 lbTripod Weight

Who Needs This Product

Confined space teams that need a portable, quick-setup anchor point over a vertical portal choose a tripod as the most versatile option. One crew can carry it to the portal, set the leg height, and be ready to mount an SRL-R or winch in minutes, which makes tripods the standard for municipal, utility, and plant maintenance entries.

Features

8' Adjustable Confined Space Tripod

8' Adjustable Confined Space Tripod.

Tripod features extruded aluminum 2-stage

Tripod features extruded aluminum 2-stage telescoping legs with 5' to 8' height adjustment.

Includes two integral head-mounted pulleys

Includes two integral head-mounted pulleys and two auxiliary anchoring eyebolts.

Pulleys are specifically designed for

Pulleys are specifically designed for use with FallTech Technora Rope Winches and 3-way SRL-Rs.

Features pivoting steel feet

Features pivoting steel feet with non-slip rubber pads.

Tripod offers 55" min. to

Tripod offers 55" min. to 91" max. internal working height range.

⚠

The tripod is the anchor, not the system. A compliant entry still requires a retrieval device, a full-body harness, and a rescue plan per OSHA 1910.146. Verify footing, pin engagement, and the leg safety chain before every entry.

Compliance Standards

OSHA 1926.502

Applicable requirement for this equipment: OSHA 1926.502 and 1910.66.

1910.66

Applicable requirement for this equipment: OSHA 1926.502 and 1910.66.

OSHA 1910.146

Permit-required confined space regulation that drives retrieval and rescue equipment requirements for entry work.

Typical Applications

Manholes at gradeManhole and vault entries where the portal is at ground level.
Treatment plantsWet wells, lift stations, and treatment plant access points.
Tank hatchesVessel openings with clear overhead room for the tripod head.
Rescue standbyRetrieval coverage during permit-required entries.
Multi-site crewsPortable setup that moves from site to site in one truck.

How to Use

Follow the FallTech instruction manual. The sequence below is an overview only.

  1. Position the tripod. Center the head over the portal and extend the legs to the working height, pinning each leg at the same setting.
  2. Set the safety chain. Install the leg safety chain around all three feet to prevent spreading.
  3. Mount your device. Attach the SRL-R or winch to the leg bracket and route the lifeline over the head sheave or pulley.
  4. Verify stability. Confirm the feet grip the surface and the head is level before anyone connects to the system.
  5. Operate per the manuals. Lower and raise entrants only with the devices mounted per the manufacturer's instructions.

Inspection and Retirement

Inspect the tripod before each use. A competent person must inspect it at least annually and after any fall arrest or rescue event.

  • Legs: bends, cracks, dents, and full pin engagement at each height setting.
  • Head: sheaves turn freely; no cracks or deformation in the casting.
  • Feet: rubber pads and cleats intact and gripping.
  • Leg safety chain: present, adjusted, and undamaged.

Retirement triggers: any fall arrest event on the system, bent or cracked legs, or any condition the inspector cannot verify as safe.

Fall Protection Distributors logo Fall Protection
Distributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k). Run the Numbers and Stay Safe Launch the Calculator ›

Technical Specifications

Type8' Adjustable Tripod
SKU7276T
Static Strength5,000 lb min. Static Strength
OSHA User Capacity130 to 425 lb max.
Tripod LegsExtruded aluminum
StandardsOSHA 1926.502 and 1910.66
WarrantyFallTech 2-year limited warranty against defects in materials and workmanship

Frequently Asked Questions

What height range does the tripod cover?
For Technora Rope devices
How fast can one crew set up this system?
Two workers can carry, position, and rig a FallTech tripod system in a few minutes. Extend the legs, pin them at the working height, set the leg safety chain, mount the device, and route the line over the head sheave.
Does the system meet OSHA confined space requirements?
Yes. It provides the anchor and retrieval capability that OSHA 1910.146 calls for in permit-required confined space entry, and the components meet OSHA 1926.502 and 1910.66.
What surface conditions do the tripod feet handle?
The feet are designed to grip common surfaces including concrete, asphalt, and steel. Always verify footing before use and use the leg safety chain to prevent spreading.
Can I add a second device to the tripod?
Yes. FallTech tripods accept multiple leg bracket assemblies, so a common configuration pairs a personnel winch for lifting with a 3-way SRL-R for backup fall arrest and rescue.
What storage is included?
The system includes weather-resistant storage bags that protect the tripod and devices in the truck and in the shop between entries.
Who is Fall Protection Distributors?
Fall Protection Distributors, LLC is an authorized FallTech dealer. Every product ships new, boxed, and warrantied, and our team helps you match components into a compliant confined space system.

FallTech 7276T Submittals and Documentation

7276T Instruction Manual (PDF)Installation, use, capacity, and inspection procedures. 7276T Declaration of Conformity (PDF)Manufacturer conformity certification for compliance files and submittal packages. 7276T Spec Sheet (PDF)Full specifications, features, and compliance summary for submittal packages.

Complete Your Confined Space System

Specifying Confined Space Equipment for Your Crew?

The right system depends on the portal, the depth, and your rescue plan. Confirm your application with us and we will make sure every component matches before it ships.

Call 863-703-4522 to talk to a fall protection specialist.

FallTech provides a 2-year limited warranty against defects in materials and workmanship on the FallTech product. The warranty is void if the product is altered, misused, or damaged by neglect, abuse, or accident, and it excludes normal wear. Fall Protection Distributors, LLC passes through the manufacturer warranty to the original purchaser.
