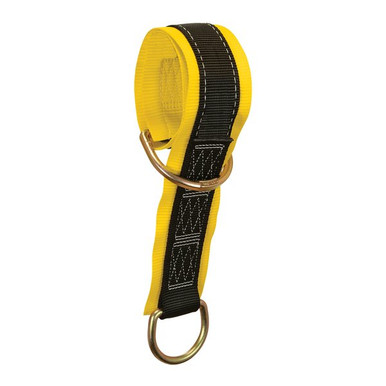

FallTech Web Pass-Through Sling Anchor
The FallTech Web Pass-Through Sling Anchor is a flexible polyester web anchor that wraps around a beam, column, or other rated structure to create a fast, reusable tie-off point. One end passes through the other (a girth hitch) to cinch the anchor onto the member.
It is built with durable polyester webbing, a pass-through D-ring, and a heavy-duty wear pad to protect the sling at the contact point. Rated for 5,000 lb (22.2 kN) and certified to ANSI Z359.18-2017 and CSA. Choose from lengths of 2', 3', 4', 6', 8', 10', 12', 14', 20', 24', 30' to fit the structure.
Who Needs This Product
This product is a web pass-through sling anchor, the anchorage component of a personal fall arrest system. Steel, roofing, and maintenance crews wrap it around a rated beam or column to create a tie-off point, then connect an SRL or energy-absorbing lanyard. You still need a certified full-body harness and a compatible connecting device to complete the system.
Features
Wraps any rated member
Girth-hitches around beams, columns, and structures without hardware.
Heavy-duty wear pad
Protects the webbing at the contact point for longer service life.
Durable polyester web
Strong, flexible webbing rated for 5,000 lb (22.2 kN).
Many lengths
Available from 2 ft to 30 ft to fit small members or large columns.
Reusable and portable
No tools needed; stows easily in a gear bag.
ANSI and CSA certified
Meets ANSI Z359.18-2017 and CSA for cross-border jobs.
Protect the webbing from sharp and abrasive edges. Web slings can be cut. Confirm the anchor structure is rated for at least 5,000 lb and is free of sharp, jagged, or abrasive edges, and use edge protection where needed. Confirm fall clearance and swing-fall with the Fall Protection Calculator below.
Compliance Standards
ANSI Z359.18-2017 and CSA
Anchorage connector standard, dual-certified for US and Canada. 5,000 lb (22.2 kN).
OSHA 29 CFR 1926.502
Federal construction fall protection anchorage requirements.
OSHA 29 CFR 1910
General industry personal fall protection requirements.
5,000 lb rated
Minimum breaking strength of 5,000 lb (22.2 kN).
Typical Applications
How to Install
Follow the FallTech instruction manual. The sequence below is an overview only.
- Inspect. Check the webbing, stitching, and hardware for damage before each use.
- Choose a rated anchor point. Confirm the structure supports at least 5,000 lb and is free of sharp or abrasive edges.
- Wrap the structure. Pass the anchor around the beam, column, or member in the approved configuration.
- Connect. Attach your SRL or energy-absorbing lanyard to the anchor connection point.
- Check clearance. Confirm fall clearance and swing-fall with the calculator below.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least annually. Remove the anchor from service for any of the conditions below.
- Webbing: cuts, frays, pulls, burns, chemical damage, or heavy abrasion.
- Stitching: broken, cut, or worn stitches at the loops and D-ring.
- Hardware (D-ring or thimble): deformation, sharp edges, cracks, or corrosion.
- Labels: illegible or missing markings.
Remove the anchor from service immediately after any fall-arrest event, and destroy retired equipment so it cannot return to service.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Type | Web pass-through sling anchor with heavy-duty wear pad |
|---|---|
| Material | Polyester webbing, alloy-steel pass-through D-ring |
| Anchorage classification | ANSI Z359.18-2017 |
| Minimum breaking strength | 5,000 lb (22.2 kN) |
| Capacity (ANSI) | One worker, up to 310 lb combined |
| Lengths available | 2', 3', 4', 6', 8', 10', 12', 14', 20', 24', 30' |
| Connection | Pass-through (girth hitch) |
| Standards | ANSI Z359.18-2017; CSA; OSHA 1926.502 and 1910 |
| Packaging | Sold in multi-packs. Pack quantity is set per length so each pack is an economical order; choose your length and pack size in the options above. |
| Warranty | FallTech 2-year limited warranty against defects in materials and workmanship |
Frequently Asked Questions
FallTech WPT Submittals and Documentation
7372 Instruction Manual (PDF)Installation, application limits, capacity, and inspection. 7372 Declaration of Conformity, ANSI (PDF)Certification to ANSI Z359.18-2017 (FallTech test lab). 7372 Declaration of Conformity, CSA (PDF)CSA certification (FallTech test lab). 7372 Spec Sheet (PDF)One-page specifications and compliance summary.Related Anchors
- FallTech steel and beam anchors. See the full beam clamp and steel anchor line.
- FallTech fall protection equipment. Harnesses, SRLs, lanyards, and anchors.
Specifying Anchor Slings for Your Crew?
The sling, the connecting device, and the harness all have to match the structure, the edges, and the fall clearance below. Confirm your application with us and we will help you pick the right length and style.
Call 863-703-4522 to talk to a fall protection specialist.
