RGSS58 Self-Tracking Rope Grab for 5/8 in Lifeline, 2-Pack

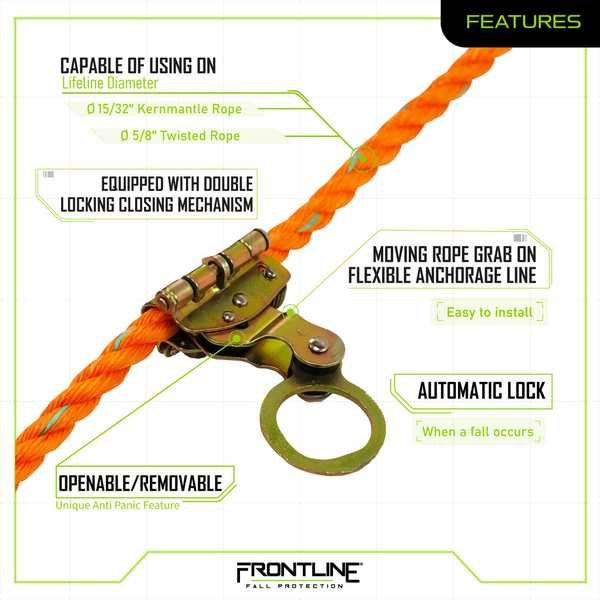

The Frontline RGSS58 is a moving rope grab for flexible anchorage lines: it tracks along with you as you climb up or down the lifeline, and locks instantly if a fall starts. The openable design installs mid-line in seconds - no threading from the rope end.
Machined from high strength alloy steel with a golden yellow galvanized finish, it runs on 5/8 in twisted rope or 15/32 in kernmantle, carries a 3,372 lb minimum breaking strength, and weighs 1.22 lbs. A unique anti-panic feature keeps the cam engaging even if the worker grabs the device in a fall. ANSI Z359.1-2007 and CSA Z259.2.5-12.
Who Needs This Product
This product is the connector between a worker and a vertical lifeline. Roofers, tower crews, and anyone climbing on a rope lifeline pair a rope grab with their harness and lifeline so the protection follows them hands-free. You still need the lifeline, a rated anchor, and a full body harness to complete the system.
Features
Self-tracking
Follows you up and down the lifeline without manual repositioning.
Anti-panic feature
Locks even if instinct makes you grab the device during a fall.
Openable body
Installs and removes mid-line - no feeding from the rope end.
Two rope sizes
5/8 in twisted rope or 15/32 in kernmantle.
Alloy steel build
Golden yellow galvanized for corrosion protection.
1.22 lbs
Light enough to forget it is on the line.
Technical Specifications
| SKU | RGSS58 |
|---|---|
| Type | Self-tracking openable rope grab with anti-panic feature |
| Rope compatibility | 5/8 in twisted rope; 15/32 in kernmantle rope |
| Material | High strength alloy steel |
| Finish | Golden yellow galvanized |
| Connecting eye | 1.96 in diameter |
| Min breaking strength | 3,372 lbs |
| Weight | 1.22 lbs (+/- 0.02 lbs) |
| Standards | ANSI Z359.1-2007; CSA Z259.2.5-12 |
Match the grab to the rope. The RGSS58 is rated for 5/8 in twisted rope and 15/32 in kernmantle - the wrong rope diameter defeats the cam. Connect to the harness per the manual (short connection, dorsal D-ring) and verify the grab locks with a sharp downward snap before every climb.
Compliance Standards
ANSI Z359.1-2007
American National Standard safety requirements for personal fall arrest systems. Third-party test report linked in Submittals.
CSA Z259.2.5-12
Canadian standard for fall arresters and vertical lifelines.
OSHA 29 CFR 1926 / 1910
Federal construction and general industry fall protection criteria.
Typical Applications
How to Install the RGSS58
Follow the manufacturer's manual. The sequence below is an overview only.
- Inspect. Check body, cam, closure, and eye before each use.
- Open and mount. Open the body and seat it on the lifeline with the UP arrow toward the anchor.
- Close and secure. Re-secure the closure per the manual.
- Connect. Attach your harness connection to the eye per the manual.
- Function test. Snap the grab sharply down the rope - it must lock instantly.
Inspection and Retirement
Inspect before each use, with a documented competent-person inspection at least every 6 months. Pull the equipment from service for any of the conditions below.
- Body and cam: deformation, cracks, corrosion, or worn teeth.
- Locking screw / closure: opens and re-secures positively (openable models).
- Anti-panic and locking function: grabs must lock on the rope when snapped downward.
- Connecting eye: wear, elongation, or cracks.
- Markings: labels must be present and legible.
Retire the equipment immediately after any fall arrest event or if any inspection point fails. Destroy retired equipment so it cannot return to service.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your SRL or lanyard setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Frequently Asked Questions
Frontline RGSS58 Submittals and Documentation
Frontline RGSS58 Spec Sheet (PDF)Rope compatibility, materials, strength, and standards. Frontline RGSS User Manual (PDF)Installation, function testing, inspection, and retirement for the RGSS rope grabs. Frontline RGSS58 Test Report (PDF)Third-party test results. Frontline Catalog (PDF)The full Frontline Fall Protection product catalog.Compatible and Related Products
- Frontline RGSS58ES Rope Grab with 3 ft Lanyard. The same grab with integrated shock-pack lanyard.
- Frontline RK050V50 Combat Plus Roofers Kit. Lifeline, anchor, and harness in one kit.
- Frontline 100CTB Combat Construction Harness. The construction harness to complete the system.
Building Vertical Lifeline Systems?
Grabs, lifelines, and anchors have to match. Confirm your application, anchorage, and clearance with us and we will walk through the kit list so the right equipment ships together.
Call 863-703-4522 to talk to a fall protection specialist.
