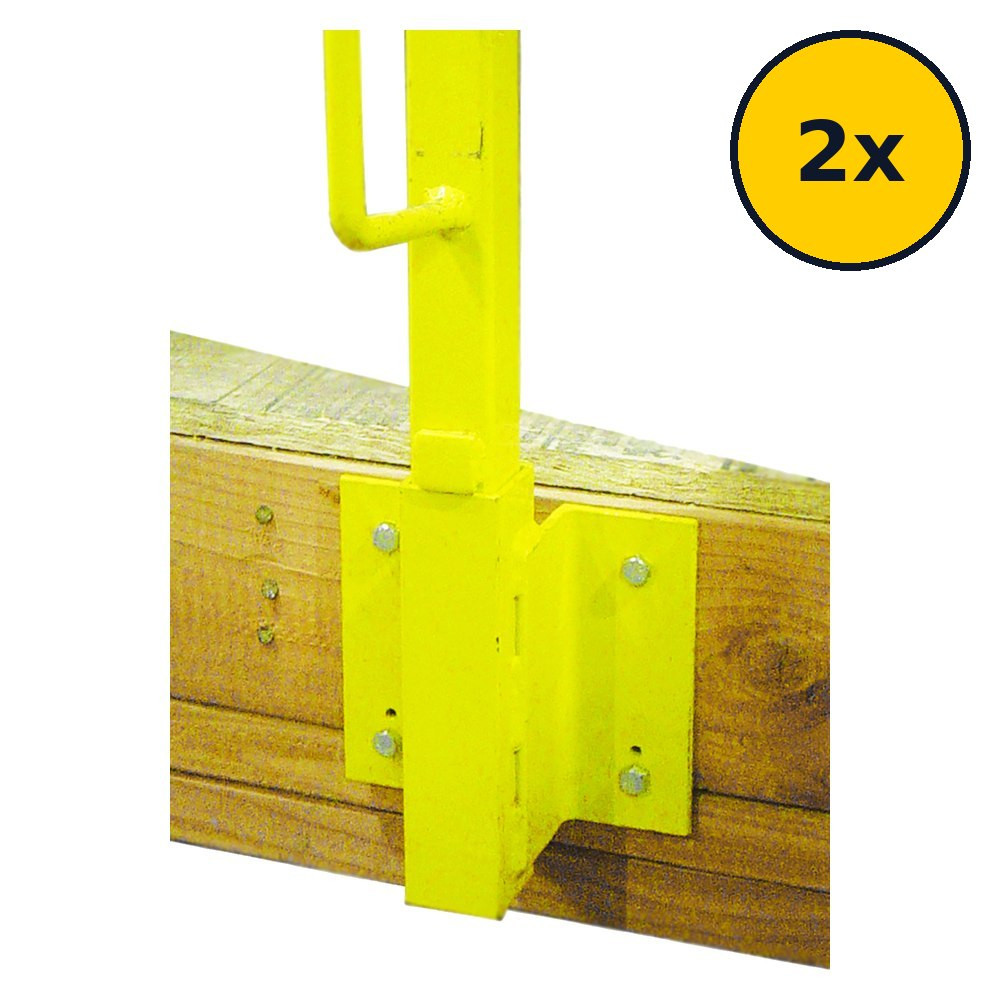

Framer Guardrail Receiver, 2-Pack
The Guardian 15158 receiver is the socket of the Framer guardrail system: it mounts to the structure per the manual and accepts the guardrail post, so temporary rail runs install and strike without rebuilding the attachment each cycle.
Assembled per the manual, the system supports OSHA 1926.502(b) guardrail requirements. Sold as a 2-pack.
Who Needs This Product
Framers set receivers once and move rails floor to floor: the socket stays on the structure through the pour or the framing phase, the posts lift out and reset in minutes. Two receivers per pack advances a rail section.
Features
Easy to install using four bolts
Easy to install using four bolts
Manufactured from powder-coated steel for extra
Manufactured from powder-coated steel for extra protection against exposure to weather or contaminants
Use in combination Universal Guardrail Posts (pa
Use in combination Universal Guardrail Posts (part #s 61133, 61135, 61136)
For attachment to walls or other vertical surfac
For attachment to walls or other vertical surfaces
For installation onto wood, concrete, or metal
For installation onto wood, concrete, or metal
Jobsite-grade construction
Built with the materials and finish quality Guardian applies across its height safety line.
Technical Specifications
| SKU | 15158-2PK |
|---|---|
| Materials | Powder-coated Steel |
| Product weight | 4.3 lbs |
| Dimensions | 17 in L x 8.5 in W x 8 in H |
| Standards | OSHA 1910.140, OSHA 1926.502 |
| Warranty | Guardian lifetime warranty against defects in material and workmanship |
Passive protection has hard numbers. OSHA 1926.502(b) requires guardrail top rails at 42 in (plus or minus 3 in) that withstand 200 lbs outward and downward force, with midrails at 21 in. Verify the assembled system meets these numbers before workers rely on it.
Compliance Standards
OSHA 1910.140
This product is compliant with OSHA 1910.140 when used as part of a complete, competent-person verified system.
OSHA 1926.502
This product is compliant with OSHA 1926.502 when used as part of a complete, competent-person verified system.
ISO 17025 lab tested
Guardian products are tested in an ISO 17025 accredited laboratory; available documentation is linked below.
Typical Applications
Installation Overview
Installation must follow the Guardian guardrail documentation. The sequence below is an overview only.
- Inspect first. Check all components for damage before assembly.
- Verify the structure. The mounting surface must meet the strength requirements in the instruction documentation.
- Install per the manual. Follow the spacing, fastening, and assembly requirements exactly.
- Complete the run. Install top rails, midrails, and toeboards as the system and OSHA 1926.502(b) require.
- Verify the system. Confirm rigidity and completeness before workers rely on it.
- Reinspect on schedule. Check the installed system regularly and after any impact or weather event.
Inspection and Retirement
Inspect installed systems regularly and after any impact. Remove components from service for any of the conditions below.
- Bent, cracked, or deformed posts, bases, or brackets.
- Loose or missing fasteners and connections.
- Corrosion or UV damage that weakens components.
- Rails that do not meet height and strength requirements.
- Missing or illegible markings.
Retirement triggers: structural damage, failed connections, or any condition where the inspector cannot positively verify the system is fit for service.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your SRL or lanyard setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Frequently Asked Questions
Guardian 15158 Framer Guardrail Receiver, 2-Pack Submittals and Documentation
Guardian 15158 Manual (PDF)Installation, use rules, and inspection criteria from the manufacturer.Guardian 15158 Test Report (PDF)ISO 17025 accredited laboratory test results.Compatible and Related Products
- Guardian 00455 Temper Roof Anchor 4-Pack. Reusable residential roof anchors.
- Guardian Series 3 Harness. The padded general construction harness line.
- Guardian External Shock Absorbing Lanyard 2-Pack. Connecting devices for anchored workers.
Laying Out Passive Protection?
Edge lengths, mounting surfaces, and access points decide the component list. Confirm your layout with us and we will make sure the right equipment ships together, based on the delivery location.
Call 863-703-4522 to talk to a fall protection specialist.
