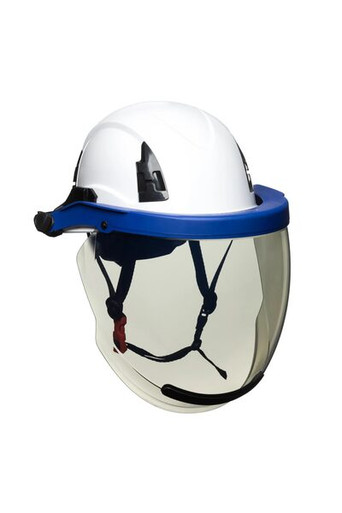

Toric Arc Flash Face Shield
The Malta Dynamics Toric Arc Flash Face Shield delivers high-caliber arc flash protection with jobsite visibility for workers exposed to electrical hazards. The AmpShield HT nanoparticle polycarbonate lens, patented ArcVent ventilation, and integrated transparent chin protector combine superior clarity, airflow, and downward protection in a single shield.
Choose a 12 cal/cm2 or 20 cal/cm2 arc thermal performance value (ATPV) to match your incident energy exposure. The toric lens shape widens the field of view and cuts internal glare, while permanent anti-fog and anti-abrasion coatings keep the lens clear in harsh conditions. The weight-compensating slotted cap bracket attaches to Malta Dynamics APEX safety helmets with the quick-change LeverLock system, no tools required.
*Helmet Sold Separately
Who Needs This Product
This shield is a dielectric head and face protection against electric arc flash hazards for electricians, utility line crews, and industrial maintenance technicians working on or near energized equipment. It is not a welding shield. Select the ATPV rating from your arc flash hazard analysis, and always pair the shield with the rated APEX safety helmet and any additional arc-rated PPE required by the task.
Features
Two arc ratings
Pick a 12 cal/cm2 or 20 cal/cm2 ATPV shield to match the incident energy in your arc flash hazard analysis.
AmpShield HT nanoparticle lens
A grey-tinted polycarbonate lens with a nanoparticle formulation for a more robust, longer-lasting shield and enhanced color recognition.
ArcVent ventilation
A patented ventilation system improves airflow and comfort behind the shield during extended wear.
Toric wide-view shape
The toric curvature expands the field of view, improves downward vision, and reduces internal glare and reflection.
Integrated chin protector
A transparent chin protector guards against downward-facing hazards such as debris and splash without blocking the view.
Quick-change LeverLock
The LeverLock system and press-to-release slotted adapters allow fast attachment and removal on APEX helmets with no tools.
Technical Specifications
| SKU | MHTV0009 (12 cal/cm2 HTV0009; 20 cal/cm2 HTV0008) |
|---|---|
| Type | Arc flash face shield kit with cap bracket |
| Arc rating (ATPV) | 12 cal/cm2 or 20 cal/cm2, by variant |
| Arc test method | ASTM F2178; NFPA 70E arc flash protection |
| Impact rating | ANSI Z87+ (high impact, ANSI Z87.1) |
| Lens material | Polycarbonate (AmpShield HT nanoparticle), grey tint |
| Bracket material | Nylon, weight-compensating slotted cap bracket |
| Lens coatings | Exterior anti-abrasion hard coating; interior permanent anti-fog |
| Ventilation | Patented ArcVent ventilation system |
| Chin protector | Integrated transparent chin protector |
| Attachment | LeverLock quick-change with press-to-release slotted adapters |
| Helmet compatibility | Malta Dynamics APEX safety helmets (slotted) |
| Flashlight option | Compatible with Paulson ALM flashlight system (sold separately) |
| Shield weight | 0.80 lb |
| Country of origin | USA |
| Compliance | ASTM F2178; NFPA 70E; ANSI Z87.1 (Z87+) |
| Warranty | 1 year limited (Malta Dynamics) against factory defects in workmanship and materials |
Match the ATPV to your hazard analysis. An arc flash face shield must be selected so its arc rating meets or exceeds the incident energy at the working distance, per your NFPA 70E arc flash risk assessment. This shield is for arc flash protection only and is not a welding shield. Wear it with the rated safety helmet and any additional arc-rated PPE required by the task, and inspect the lens and bracket before every use.
Compliance Standards
ASTM F2178
Standard test method and specification for determining the arc rating and standard specification for eye or face protective products.
NFPA 70E
Standard for Electrical Safety in the Workplace, which governs arc flash PPE selection by incident energy.
ANSI Z87.1 (Z87+)
American National Standard for occupational eye and face protection, including the Z87+ high-impact rating.
Dielectric design
Designed for dielectric head and face protection against the hazards of arc flash; not for welding.
Typical Applications
Fitting Overview
Fit and use per the Malta Dynamics and Paulson product instructions. The sequence below is an overview only.
- Confirm the rating. Verify the shield ATPV (12 or 20 cal/cm2) meets or exceeds the incident energy from your arc flash hazard analysis.
- Inspect. Check the lens, chin protector, bracket, and adapters for cracks, scratches, or damage before each use.
- Attach the bracket. Seat the slotted cap bracket into the APEX helmet accessory slots until the LeverLock engages.
- Mount the shield. Snap the shield onto the bracket using the press-to-release slotted adapters.
- Deploy. Lower the shield into the working position; the low-profile design conforms to the face when deployed.
- Stow. Raise the shield above the head when not in use; the weight-compensating bracket balances the load in the stowed position.
Inspection and Retirement
Inspect before each use. Remove the shield from service for any of the conditions below.
- Lens: cracks, deep scratches, crazing, or any damage that impairs vision or protection.
- Coatings: peeling or degraded anti-fog or anti-abrasion coating.
- Chin protector: cracks, distortion, or separation.
- Bracket and adapters: cracks, deformation, or a LeverLock that will not lock.
- Markings: arc rating and standards markings must remain legible.
Retirement triggers: any exposure to an arc flash event, any cracked or compromised lens, or any bracket that will not securely lock the shield. Replace the shield immediately after any forcible impact, even if damage is not visible.
