Gas Cutting and Welding Toric Face Shield - Shade 5 Green (2-Pack)

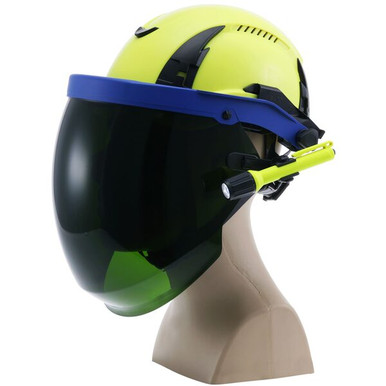

The Malta Dynamics Gas Cutting and Welding Toric Face Shield is an injection-molded Shade 5 green nanoparticle polycarbonate window built for gas welding and cutting operations. It is rated for severe industrial service where both high temperatures and high impacts occur, providing torch operators with a durable shaded window that meets the UV, visible, and IR transmittance requirements of ANSI Z87.1.
The toric curvature delivers a wide peripheral view, excellent downward vision, and reduced internal glare, while the integrated chin protector guards against hazards from below, such as debris and splash. The LeverLock hole pattern is compatible with Paulson weight-compensating brackets for slotted cap hard hats and safety helmets.
* This listing is a 2-pack of the Toric Face Shields only; the helmet is sold separately.
Who Needs This Product
This Shade 5 green window is for gas cutting and welding operators - oxy-fuel torch work, brazing, and soldering - who need a shaded face shield rather than a clear one. It is a replaceable shield window only: the hard hat or safety helmet is not included, and the weight-compensating cap bracket and flashlight system are sold separately. Match Shade 5 to your gas welding and cutting application, and always wear primary eye protection underneath.
Features
Shade 5 green window
An injection-molded Shade 5 green tint meets the UV, visible, and IR transmittance requirements of ANSI Z87.1 for gas cutting and welding.
High temp and impact
Polycarbonate performs excellently against both high-impact and high-temperature applications in severe industrial service.
Toric wide-view shape
The toric curvature widens the peripheral view, improves downward vision, and reduces internal glare.
Integrated chin protector
A chin protector shields against hazards from below such as debris and splash.
Nanoparticle formulation
A nanoparticle formulation makes the shield more robust and longer lasting.
LeverLock quick change
The LeverLock attachment system allows easy shield replacement on compatible weight-compensating brackets.
Technical Specifications
| SKU | HTV0004-2PK (single SKU HTV0004) |
|---|---|
| Pack quantity | 2 face shield windows |
| Model | TS-L9F5 (Paulson) |
| Type | Gas cutting and welding toric face shield window |
| Material | Polycarbonate, nanoparticle formulation |
| Shade / color | Shade 5 green |
| Lens shape | Toric (wide peripheral and downward view) |
| Chin protector | Integrated |
| Hole pattern | LeverLock |
| Attachment | Cap/hat bracket (weight-compensating, sold separately) |
| Weight (each) | 0.60 lb |
| Helmet | Hard hat/safety helmet not included |
| Country of origin | USA |
| Compliance | ANSI Z87.1+ (high impact); Shade 5 per ANSI Z87.1 transmittance |
| Warranty | 1 year limited (Malta Dynamics) against factory defects in workmanship and materials |
Shade 5 is for gas cutting and welding, not arc welding. Select the shade for your operation: Shade 5 green is rated for gas (oxy-fuel) cutting and welding. This window is a secondary protector and must be worn beneath primary eye protection. The hard hat or safety helmet and the weight-compensating cap bracket are sold separately. Inspect the window before each use and replace it after any forcible impact.
Compliance Standards
ANSI Z87.1+
American National Standard for occupational eye and face protection; the + denotes the high-impact rating.
ANSI Z87.1 transmittance
The Shade 5 green tint meets the UV, visible, and infrared transmittance requirements of ANSI Z87.1.
OSHA 29 CFR 1910.133
OSHA eye and face protection requirements for general industry, including filter lenses for welding and cutting.
High temp service
Rated for severe industrial service where high temperature and high impact may occur.
Typical Applications
Fitting Overview
Fit and use per the Malta Dynamics and Paulson product instructions. The sequence below is an overview only.
- Confirm the shade. Verify that Shade 5 is correct for your gas-cutting or welding operation.
- Inspect. Check the window, chin protector, and LeverLock pattern for cracks, scratches, or damage before each use.
- Mount the bracket. Install the weight-compensating cap bracket (sold separately) on the slotted hard hat or safety helmet.
- Attach the window. Snap the Shade 5 window onto the bracket using the LeverLock hole pattern.
- Wear primary protection. Put on safety glasses or goggles under the shield.
- Deploy and stow. Lower the window for work; raise it above the head when not cutting or welding.
Inspection and Retirement
Inspect before each use. Remove the window from service if any of the conditions below apply.
- Window: cracks, deep scratches, pitting from spatter, or crazing.
- Shade: any change in tint or transmittance from heat damage.
- Chin protector: cracks, distortion, or separation.
- LeverLock pattern: worn or damaged attachment points that will not lock.
- Markings: shade and standards markings must remain legible.
Retirement triggers: any forcible impact, any cracked or heat-damaged window, or any attachment that will not securely lock. Replace the window immediately at any sign of damage or degradation.
