High Temp / Impact Toric Face Shield - Clear (2-Pack)
The Malta Dynamics High Temp / Impact Toric Face Shield features an injection-molded clear polycarbonate window for high-temperature and high-impact applications. Rated for severe industrial service, it protects machining, grinding, and chemical-splash workers with a durable, clear window that meets ANSI Z87.1+ high-impact requirements.
The toric shape gives a wide peripheral view, excellent downward vision, and reduced internal glare, while the integrated chin protector guards against hazards from below, such as debris and splash. The LeverLock hole pattern is compatible with Paulson weight-compensating brackets for slotted cap hard hats and safety helmets.
* This listing is a 2-pack of the Toric Face Shields only; the helmets are sold separately.
Who Needs This Product
This clear window is for machinists, grinders, and chemical-handling workers who need high-impact and high-temperature face protection in severe industrial service. It is a replaceable shield window only: the hard hat or safety helmet is not included, and the weight-compensating cap bracket and flashlight system are sold separately. As a secondary protector, it must be worn over primary eye protection.
Features
Clear high-temp window
An injection-molded clear polycarbonate window for high temperature and high impact applications in severe industrial service.
High impact rating
The window carries an ANSI Z87.1+ high-impact rating and performs well against both impact and heat.
Toric wide-view shape
The toric curvature widens the peripheral view, improves downward vision, and reduces internal glare.
Integrated chin protector
A chin protector shields against hazards from below such as debris and splash.
Severe industrial service
Rated for severe industrial service where high temperature and high impact may occur.
LeverLock quick change
The LeverLock attachment system allows easy shield replacement on compatible weight-compensating brackets.
Technical Specifications
| SKU | HTV0003-3PK (single SKU HTV0003) |
|---|---|
| Pack quantity | 2 face shield windows |
| Model | TS-L9F (Paulson) |
| Type | High-temp / impact toric face shield window |
| Material | Polycarbonate |
| Color | Clear |
| Lens shape | Toric (wide peripheral and downward view) |
| Chin protector | Integrated |
| Hole pattern | LeverLock |
| Attachment | Cap/hat bracket (weight-compensating, sold separately) |
| Weight (each) | 0.60 lb |
| Helmet | Hard hat/safety helmet not included |
| Country of origin | USA |
| Compliance | ANSI Z87.1+ (high impact) |
| Warranty | 1 year limited (Malta Dynamics) against factory defects in workmanship and materials |
A face shield is secondary protection. This clear window protects against high impact, heat, debris, and chemical splash, but it is a secondary protector and must be worn with primary eye protection - safety glasses or goggles - underneath. The hard hat or safety helmet and the weight-compensating cap bracket are sold separately. Inspect the window before each use and replace it after any forcible impact.
Compliance Standards
ANSI Z87.1+
American National Standard for occupational eye and face protection; the + denotes the high-impact rating.
OSHA 29 CFR 1910.133
OSHA eye and face protection requirement for general industry.
High temp service
Rated for severe industrial service where high temperature and high impact may occur.
Impact and splash
Designed for high temp and impact, machining and grinding, debris, and chemical splash.
Typical Applications
Fitting Overview
Fit and use per the Malta Dynamics and Paulson product instructions. The sequence below is an overview only.
- Inspect. Check the window, chin protector, and LeverLock pattern for cracks, scratches, or damage before each use.

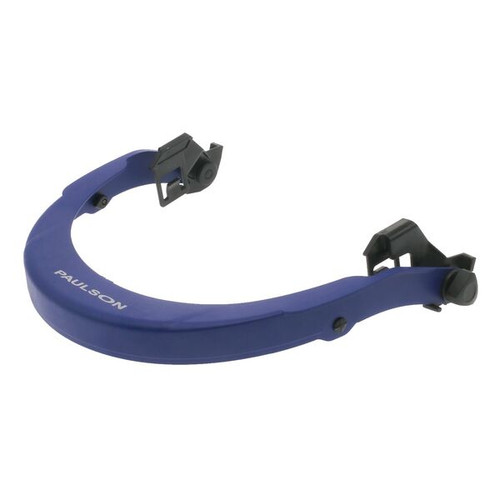

- Mount the bracket. Install the weight-compensating cap bracket (sold separately) on the slotted hard hat or safety helmet.
- Attach the window. Snap the clear window onto the bracket using the LeverLock hole pattern.
- Wear primary protection. Put on safety glasses or goggles under the shield.

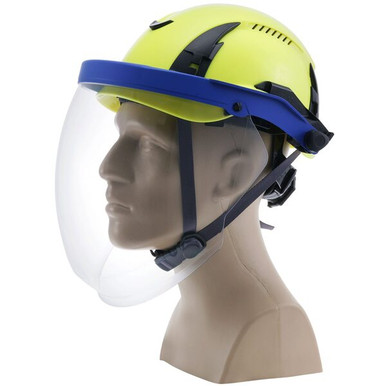

- Deploy. Lower the window into the working position for the task.
- Stow. Raise the window above the head when not in use.
Inspection and Retirement
Inspect before each use. Remove the window from service if any of the conditions below apply.
- Window: cracks, deep scratches, pitting, or crazing that impairs vision.
- Heat damage: warping or clouding caused by high-temperature exposure.
- Chin protector: cracks, distortion, or separation.
- LeverLock pattern: worn or damaged attachment points that will not lock.
- Markings: Standards markings must remain legible.
Retirement triggers: any forcible impact, any cracked or heat-damaged window, or any attachment that will not securely lock. Replace the window immediately at any sign of damage or degradation.
