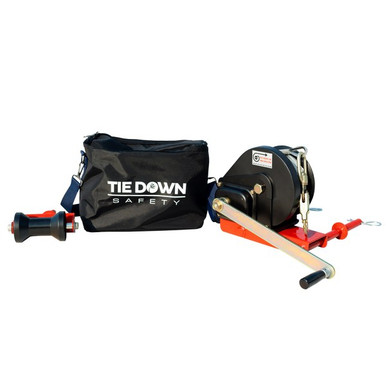

Tie Down PX5 Rescue Winch Assembly with 100 ft Galvanized Lifeline
The PX5 Rescue Winch Assembly mounts to the PX5 Original (72838) and PX5 Sentinel (72833) carts and carries 100 ft of galvanized steel lifeline on a manual winch with a folding handle. A rescuer on the roof raises a fallen worker back to the deck or lowers them to grade in minutes.
A swivel snap hook with an impact indicator connects to the fallen worker and the system stores in its carry bag, in the Sentinel's material box or on the PX5. Per the Tie Down manual the winch is for membrane and deck applications; it cannot be used when the Sentinel is set up for concrete.
PayPal Pay Later availability and terms are set by PayPal at checkout. Ordering this with a machine or hoist kit? APPROVE business financing can cover the whole order; the sample payment is shown on that product page.
Who Needs This Product
Any crew working from a PX5 Original or PX5 Sentinel on a membrane, metal deck or plywood roof. OSHA 1926.502(d)(20) requires a prompt rescue plan for every worker in fall arrest, and with up to five workers in arrest on a PX5 the crew needs a way to raise or lower a coworker immediately.
Features
100 ft of lifeline
Galvanized steel cable long enough to lower a worker to grade or raise them back to the deck on most low rise commercial roofs.
Manual winch
Hand cranked with a folding handle, no power on the roof.
Impact indicator hook
The swivel snap hook shows when it has taken a fall load so it can be retired.
Mounts to both PX5 carts
Fits the PX5 Original and the PX5 Sentinel; the installation videos below show the mount.
Stores on the cart
Comes in a carry bag that fits the Sentinel material box.
Completes the rescue plan
Pair it with a written plan and trained rescuers who tie off to the remaining cart points.
Not for concrete applications. The Tie Down manual states the rescue winch cannot be used when the PX5 Sentinel is set up on concrete. Plan a separate rescue method for concrete work. The winch is rescue equipment, not a fall arrest tie-off point.
Compliance Standards
OSHA 29 CFR 1926.502(d)(20)
Employers shall provide for prompt rescue of employees in the event of a fall.
OSHA 29 CFR 1910.140
General industry personal fall protection systems.
Tie Down PX5 system
Designed and tested as part of the PX5 mobile fall protection system.
Rescue plan support
Documents a cart based assisted rescue method for your written plan.
Typical Applications
How to Use
Follow the Tie Down instruction manual. The sequence below is an overview only.
- Mount the winch. Attach to the PX5 per the Tie Down installation guide before work begins.
- Pay out the lifeline. Lower the swivel snap hook to the fallen worker and connect it to the harness.
- Transfer the load. Crank to take the worker's weight off the arresting device.
- Raise or lower. Bring the worker back to the deck or down to grade per the rescue plan.
- Retire after a fall. Check the impact indicator and remove loaded components from service.
Inspection and Retirement
Inspect before each use, with a documented competent person inspection at least annually. Remove the system from service for any of the conditions below.
- Lifeline: broken wires, kinks, corrosion, birdcaging.
- Winch and handle: a drum or brake that slips, a handle that will not fold or lock.
- Swivel snap hook: a tripped impact indicator, bent gate, gate that will not lock.
- Mount hardware: cracks, bends or missing pins.
- Bag and labels: missing or illegible labels.
Remove the system from service immediately after any fall arrest event and have it inspected by a competent person before it returns to use.
Product Videos
Mounting the 72831 winch on the PX5 Original.
Mounting the 72831 winch on the PX5 Sentinel.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Part number | 72831 (Tie Down Engineering, USA) |
|---|---|
| Type | Manual rescue winch assembly for PX5 mobile fall protection carts |
| Lifeline | 100 ft galvanized steel cable |
| Winch | Manual, folding handle |
| Connector | Swivel snap hook with impact indicator |
| Compatible with | Tie Down PX5 Original 72838 and PX5 Sentinel 72833 (membrane and deck setups only) |
| Weight | About 25 lb with bag |
| Storage | Carry bag included |
| Standards | OSHA 1926.502 rescue provisions |
| Warranty | Tie Down 90 day limited warranty |
