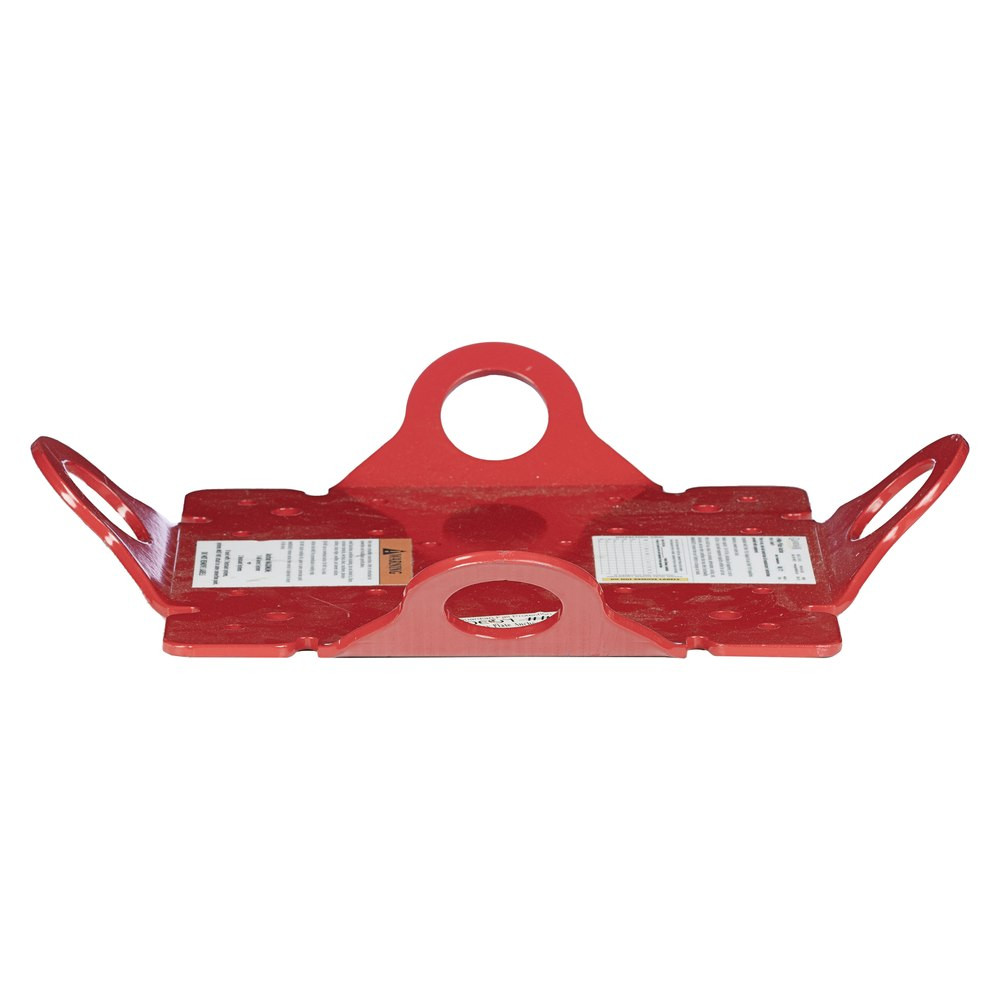

4-Way Plate Anchor, Red
The Guardian 00691 puts four rated connection points on one plate: a red powder-coated steel anchor that fastens to the structure per the manual and serves multiple system layouts from a single installation, tie-off, rigging transitions, and rescue staging included.
Each connection point serves one worker within the manual limits, under OSHA 1926.502 and 1910.140, with full documentation linked below.
Who Needs This Product
The 4-way plate suits permanent access points where one anchor location must serve changing needs: rescue systems that need a separate rigging point, transitions where two workers pass through tied off, and davit or rope-access staging. The high-visibility red coating makes the rated points unmistakable against the structure. Installation follows the substrate details in the manual and belongs to a competent person.
Features
Four connection points
Four connection points
Compatible with HLLs
Compatible with HLLs
Durable powder-coated steel construction
Durable powder-coated steel construction
Jobsite-grade construction
Built with the materials and finish quality Guardian applies across its height safety line.
Documented compliance
Full manufacturer documentation is linked on this page for submittal packages.
Fleet-friendly inspection
Clear inspection criteria in the manual keep competent-person checks fast and consistent.
Technical Specifications
| SKU | 00691 |
|---|---|
| Materials | Steel |
| Product weight | 13 lbs |
| Dimensions | 17 in L x 17 in W x 2 in H |
| Standards | OSHA 1910.140, OSHA 1926.502 |
| Warranty | Guardian lifetime warranty against defects in material and workmanship |
Anchorage strength is the foundation of the system. The structure and anchor must withstand 5,000 lbs per attached worker or maintain a 2:1 safety factor under qualified-person supervision. Verify substrate, fastener, and orientation requirements against the instruction manual before every installation.
Compliance Standards
OSHA 1910.140
This product is compliant with OSHA 1910.140 when used as part of a complete, competent-person verified system.
OSHA 1926.502
This product is compliant with OSHA 1926.502 when used as part of a complete, competent-person verified system.
ISO 17025 lab tested
Guardian products are tested in an ISO 17025 accredited laboratory; available documentation is linked below.
Typical Applications
Installation Overview
Installation must follow the Guardian instruction manual for this anchor. The sequence below is an overview only.
- Inspect first. Check the anchor body, connection point, and hardware before every installation.
- Verify the structure. The supporting structure must meet the strength requirements in the instruction manual.
- Install per the manual. Follow the substrate, fastener, and orientation requirements exactly; fill every required fastener position.
- Verify the connection. Confirm the anchor is fully seated and the connection point is accessible and undamaged.
- Connect the system. Attach a compatible connecting device and verify the complete personal fall arrest system with a competent person.
- Check clearance. Confirm fall clearance below the work area and minimize swing fall hazards before work begins.
Inspection and Retirement
Inspect before every use, and have a competent person perform a documented inspection at least every six months under ANSI Z359.2 practice. Remove the anchor from service for any of the conditions below.
- Cracks, corrosion, or deformation of the body, connection point, or welds.
- Loose, missing, damaged, or worn hardware and fasteners.
- Elongation or wear at the D-ring or connection eye.
- Missing or illegible labels.
- Any evidence the anchor has arrested a fall.
Retirement triggers: any fall event on the anchor, or any condition where the inspector cannot positively verify it is fit for service.
