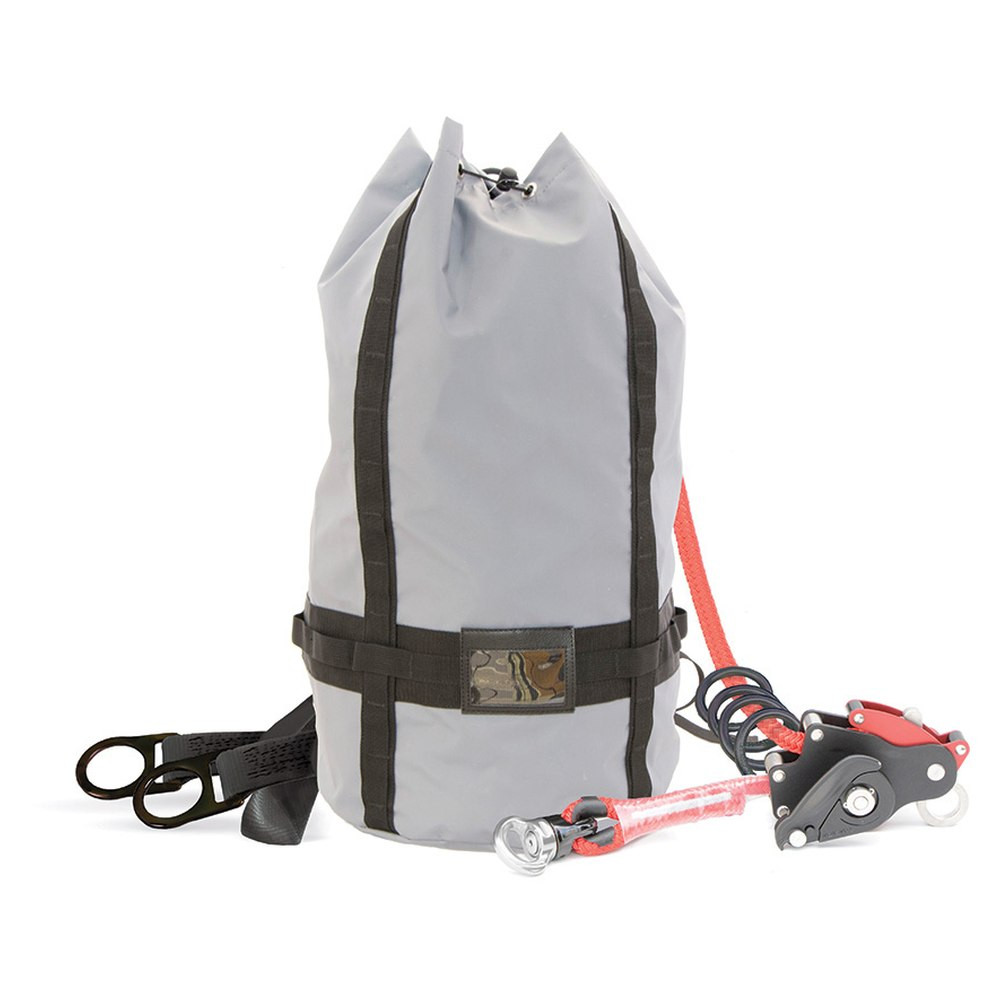

Quadro 4-Worker Temporary Rope Horizontal Lifeline, 82 ft
The Guardian 30800 Quadro strings 82 ft of temporary horizontal lifeline rated for four workers at once: a complete rope HLL set with tensioning and end hardware per the manual, giving crews continuous tie-off along the full span between anchorages.
Installed under qualified-person supervision per OSHA 1926.502(d)(8), with system requirements per the manual.
Who Needs This Product
Four-worker capacity is the Quadro headline: most temporary HLLs cap at two, and the third worker on the deck forces a second system. The 82 ft rope set spans wide work fronts, and like every HLL, its deflection joins the clearance math and its end anchors carry multiplied loads the manual tabulates.
Features
Provided standard with lightweight aluminum comp
Provided standard with lightweight aluminum components to reduce weight during transport and minimize sag on the lifeline
Drawstring carrying bag offers convenient and sa
Drawstring carrying bag offers convenient and safe storage
In-line adjuster makes it easy for a single work
In-line adjuster makes it easy for a single worker to properly tension the lifeline
Offers a maximum span length of 82' for signific
Offers a maximum span length of 82' for significant work area coverage
Jobsite-grade construction
Built with the materials and finish quality Guardian applies across its height safety line.
Documented compliance
Full manufacturer documentation is linked on this page for submittal packages.
Technical Specifications
| SKU | 30800 |
|---|---|
| Worker capacity | 130-310 lbs. including all clothing, tools, and equipment |
| Tensile strength | 5,000 lbs. |
| Materials | Powder-coated aluminum and polyester |
| Product weight | 21.6 lbs |
| Dimensions | 20 in L x 12 in W x 13 in H |
| Standards | OSHA 1910.140, OSHA 1926.502 |
| Warranty | Guardian lifetime warranty against defects in material and workmanship |
Components work only inside a verified system. This product must be used with compatible equipment per the manufacturer documentation, and the complete fall protection system must be verified by a competent person before use.
Compliance Standards
OSHA 1910.140
This product is compliant with OSHA 1910.140 when used as part of a complete, competent-person verified system.
OSHA 1926.502
This product is compliant with OSHA 1926.502 when used as part of a complete, competent-person verified system.
ISO 17025 lab tested
Guardian products are tested in an ISO 17025 accredited laboratory; available documentation is linked below.
Typical Applications
Use Overview
Use must follow the Guardian product documentation. The sequence below is an overview only.
- Inspect first. Check the product for damage, wear, and legible markings before every use.
- Verify compatibility. Confirm compatibility with the connecting equipment per the instruction documentation.
- Install or connect. Attach per the manufacturer documentation, with gates and closures fully engaged where applicable.
- Function check. Verify the product operates as intended before loading it.
- Use within ratings. Stay within the rated capacity and application limits at all times.
- Reinspect after use. Check again when the product returns to the gang box; remove damaged items from service.
Inspection and Retirement
Inspect before every use. Remove the product from service for any of the conditions below.
- Cracks, corrosion, deformation, or excessive wear.
- Gates, closures, or moving parts that do not operate positively.
- Cut, frayed, or abraded webbing or stitching (webbing products).
- Missing or illegible markings.
- Any evidence of involvement in a fall event.
Retirement triggers: any fall event, any failed inspection item, or any condition where the inspector cannot positively verify the product is fit for service.
