Tie Down Mobile Fall Protection

Tie Down BigFoot Non-Penetrating Mobile Fall Protection Cart for 3 Workers

The BigFoot is a 750 lb ballasted mobile anchor that never penetrates the roof. Roll it into position on its 300 lb flat-free tires, crank the jacking handle to lift the wheels and set the twenty 25 lb ballast plates onto the deck, and the mass of the cart does the holding. There are no spikes, so it is the Tie Down cart for concrete, modified bitumen, built-up roofing, TPO and EPDM including ballasted EPDM.

It protects one worker in fall arrest and two in fall restraint, each up to 310 lb, on slopes up to 1:12 with an 8 ft minimum setback. Four hoist rings, a metal instruction plate with a QR code to the manual, and a standard pallet footprint make it a simple cart to move between jobs.

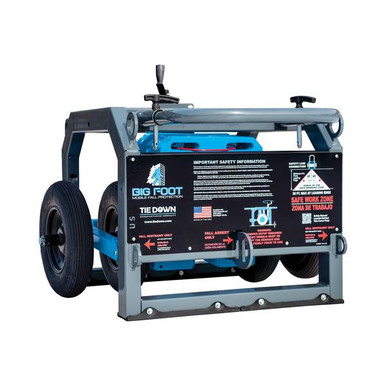

Tie Down BigFoot 60060US non-penetrating ballasted mobile fall protection cart, front view

750 lbBallasted Weight

3 Workers1 Arrest, 2 Restraint

ZeroRoof Penetration

310 lbCapacity per Worker

8 ftMinimum Setback

20 x 25 lbBallast Plates

1:12Maximum Slope

40 x 48 inPallet Footprint

FinanceSample payment per month, sampleSample 60 month payment on the price shown above from the APPROVE financing calculator. Business and organization borrowers, 60 second application, no personal credit impact unless a personal guarantee is required. Section 179 may apply, ask your tax advisor. Smaller items added to the same order, such as a rescue winch or lifeline kit, can be bundled into the same financing.Apply in 60 Seconds

BuyRetail price shown above, plus flat-rate freightOrder online at the retail price shown above. Ships LTL freight on a standard pallet, usually in 1 to 2 weeks. Pay by card, PayPal, PayPal Pay Later, ACH or purchase order for approved accounts. Our convenient fixed freight shown under Shipping above is added at checkout and covers delivery to a commercial address in the continental US, so the total you see is the delivered price. Alaska, Hawaii and Canadian orders have additional shipping fees based on carrier cost at the time of order, confirmed with you before the order ships.Add to Cart Above

The finance payment shown is a sample, not an offer. Financing is provided through APPROVE and its lender network, subject to credit approval, at a 60 month term; your offered rate and term may differ. Financing is available on single items priced at 1,500 dollars and up, including smaller items bundled with the unit.

Who Needs This Product

The BigFoot is for crews on concrete decks and finished membrane roofs where a penetrating cart is not allowed and a permanent anchor is not wanted. Roof maintenance teams, HVAC and solar service crews, and building owners who need an anchor they can roll out for a day of work choose it. One worker ties off in fall arrest, two more in restraint, each with a harness, a connecting device sized to the range of use chart, and a rescue plan.

Features

Non-penetrating by design

Ballast, not spikes, holds the cart. Nothing touches the membrane but the ballast plates, so there is no repair after a fall arrest and no restriction on concrete.

Crank jacking system

Turn the jacking handle to lift the wheels off the deck and lower the ballast plates into contact. Crank the other way and it rolls again.

Twenty 25 lb ballast plates

500 lb of removable plates on a 250 lb frame. Plates come out for the crane pick and go back in on the roof.

Three tie-off points

One fall arrest D-ring low on the cart and two fall restraint D-rings for workers who stay back from the edge.

Range of use chart on the cart

A metal instruction plate shows the setback to range of use table and a QR code opens the manual on a phone.

Drop tested

The BigFoot US model stopped a 310 lb, 6 ft free fall drop test on each approved surface. DoC ETR-60060 is in the submittals.

⚠

Approved surfaces only. Concrete, modified bitumen, built-up roofing, TPO and EPDM including ballasted EPDM, slope 1:12 or less, with the cart at least 8 ft from the leading edge. The BigFoot is not for ISO, EPS, PVC, gypsum, tectum, densdeck or hardboard. Range of use is double the setback, 16 ft at 8 ft up to 30 ft at 15 ft. Confirm fall clearance with the calculator below.

Compliance Standards

OSHA 29 CFR 1926.502

Construction fall protection systems criteria for anchorages and personal fall arrest systems.

OSHA 29 CFR 1910.140

General industry personal fall protection systems.

ANSI Z359.6-2016

Design of active fall protection systems; 310 lb, 6 ft free fall drop test with a 6 ft energy absorber.

Declaration of Conformity

Tie Down DoC ETR-60060 documents the BigFoot US model drop testing by surface. See the submittals below.

Typical Applications

Concrete roof decksParking garages, podiums and plaza decks.

Finished membrane roofsTPO and EPDM where penetration is not allowed.

Mod bit and BURBuilt-up and modified bitumen roofs.

HVAC serviceRooftop unit maintenance with no permanent anchor.

Solar serviceArray inspection and panel swaps.

Building ownersA roll out anchor for in house maintenance.

How to Use

Follow the Tie Down instruction manual. The sequence below is an overview only.

Verify the surface. Confirm the roof is concrete, mod bit, BUR, TPO or EPDM, slope 1:12 or less, and the deck carries 750 lb plus the crew.
Hoist and roll. Lift by the four hoist rings (remove ballast plates for the pick if needed), roll the cart at least 8 ft from the edge and square to it.
Set the ballast. Crank the jacking handle until the wheels lift and all twenty plates sit flat on the deck.
Connect. One worker on the fall arrest D-ring, up to two on the restraint D-rings, with connecting devices sized to the range of use chart.
Reposition. Crank the wheels down, roll to the next spot, and reset the ballast before anyone ties off.

Inspection and Retirement

Inspect before each use, with a documented competent person inspection at least annually. Remove the system from service for any of the conditions below.

Ballast plates and frame: missing or cracked plates, bent frame, corrosion.
Jacking system: a crank that binds, a jack that will not lift the wheels or will not set the plates flat.
Tie-off D-rings and hoist rings: distortion, cracks, corrosion.
Tires and axles: damaged tires, bent axles.
Instruction plate and labels: illegible or missing.

Remove the system from service immediately after any fall arrest event and have it inspected by a competent person before it returns to use.

Product Videos

Watch: BigFoot demo: 3 user non-penetrating cart

Tie Down walks through the BigFoot ballast system and setup.

Watch: Tie Down mobile fall protection lineup

PX3, PX5, Sentinel, BigFoot and Squatch side by side.

Fall Protection
Distributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k). Run the Numbers and Stay Safe Launch the Calculator ›

Technical Specifications

Part number	60060US (Tie Down Engineering, USA)
Type	Non-penetrating ballasted mobile fall protection cart
Unit weight	750 lb (250 lb frame plus 20 x 25 lb ballast plates)
Capacity	3 workers: 1 fall arrest, 2 fall restraint, 310 lb each including tools
Anchoring method	Ballast set on the deck by crank jacking; no penetration
Approved surfaces	Concrete, modified bitumen, built-up roofing, TPO, EPDM, ballasted EPDM
Not approved	ISO, EPS, PVC, gypsum deck, tectum, densdeck, hardboard
Maximum slope	1:12
Minimum setback	8 ft from the leading edge
Range of use	Double the setback: 16 ft at 8 ft, 30 ft at 15 ft
Tires	4 flat-free 300 lb tires, 1,200 lb total
Handling	4 hoist rings, metal instruction plate with QR code
Shipping	Job site ready on a standard 40 x 48 in pallet, LTL freight
Standards	OSHA 1926.502, OSHA 1910.140, ANSI Z359.6-2016 drop tested
Warranty	Tie Down 90 day limited warranty

Frequently Asked Questions

Does the BigFoot penetrate the roof?

No. It is held by 750 lb of ballast set onto the deck by the crank jacking system. Nothing penetrates the membrane or the concrete, which is why it is approved on concrete and finished roofs where the spiked carts are not.

How many workers can tie off?

Three: one in fall arrest on the low D-ring and two in fall restraint on the upper D-rings, each up to 310 lb including clothing and tools.

What surfaces is it approved for?

Concrete, modified bitumen, built-up roofing, TPO and EPDM including ballasted EPDM, on slopes up to 1:12. It is not approved on ISO, EPS, PVC, gypsum, tectum, densdeck or hardboard. The Squatch covers more surfaces with four workers.

How far from the edge does it go?

At least 8 ft. The range of use is double the setback: 16 ft at 8 ft, 20 ft at 10 ft, up to 30 ft at 15 ft. The chart is on the cart's instruction plate.

How do I get 750 lb onto the roof?

Lift by the four hoist rings with a crane or telehandler. The twenty 25 lb plates are removable, so the frame can go up at 250 lb and the plates in a separate pick if the hoist is limited.

What happens after a fall?

The cart may slide toward the edge as it arrests the fall, which is why the 8 ft setback matters. Rescue the worker per your plan, then remove the cart from service for a competent person inspection before reuse.

Can I finance the BigFoot?

Yes. Business financing through APPROVE takes about 60 seconds to apply and a sample monthly payment is shown above. Call us for delivered freight.

Tie Down 60060US Submittals and Documentation

BigFoot 60060US Sell Sheet (PDF)Features, capacity, approved surfaces, ballast and footprint. BigFoot 60060US Instruction Manual (PDF)Setup, jacking, placement, range of use chart, inspection and warranty. BigFoot 60060US Declaration of Conformity (PDF)DoC ETR-60060 drop test results by surface, OSHA 1926 and ANSI Z359.6-2016. Tie Down Mobile Fall Protection Line Sheet (PDF)The full cart lineup compared side by side. Tie Down Safety Catalog, Part 1 (PDF)Mobile fall protection, anchors and harness pages of the Tie Down safety catalog. Tie Down Safety Catalog, Part 2 (PDF)Guardrail, warning line and roofing safety pages of the Tie Down safety catalog.

Compare the Tie Down Mobile Fall Protection Line

Every Tie Down cart is drop tested and ships job site ready. Pick by surface, crew size, and whether you need concrete capability, a rescue winch, or a lifeline between two carts.

Squatch Non-Penetrating1,200 lb, 4 workers, HLL ready PX3 Penetrating Cart430 lb, 5 workers PX5 Original Cart517 lb, 7 workers PX5 Sentinel Cart1,069 lb, 7 workers, concrete PX2 Hybrid Cart643 lb, spikes or concrete 4-Person HLL Kit 14405100 ft span, 2 Squatch

Tie Down Engineering. Mobile fall protection carts, rescue winches, ladder hoists and roofing equipment.
Mobile fall protection systems. Every mobile anchor cart and grabber we carry.

Need an Anchor That Will Not Touch the Roof?

The BigFoot is the non-penetrating answer for concrete and finished membranes. Tell us the surface and crew size and we will confirm the fit, quote delivered freight and set up financing.

Call 863-703-4522 to talk to a fall protection specialist.

Tie Down Engineering warrants this product to be free from defects in material and workmanship for 90 days from the date of purchase. Return the defective unit to the dealer or contact Tie Down for repair or replacement at Tie Down's discretion. The warranty does not cover damage from misuse, alteration, a fall arrest event, or failure to follow the instruction manual.
