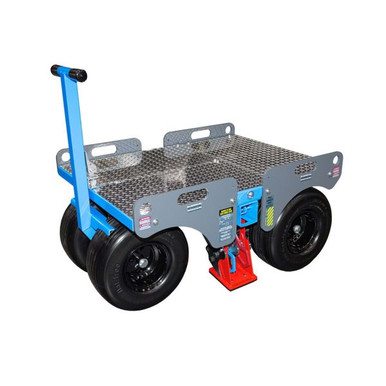

Tie Down PX2 Hybrid Mobile Fall Protection Cart, Spike or Concrete Anchoring
The PX2 Hybrid is the small crew Penetrator with two ways to hold. On membrane roofs its steel spikes engage the deck under fall load like the PX3 and PX5. On concrete it switches to a concrete attachment, so one cart covers the TPO roof and the concrete deck on the same project.
At 643 lb it anchors three workers on spikes, two in fall arrest and one in restraint, or two workers on concrete, one in fall arrest and one in restraint. It is the entry point to the Tie Down penetrating line for maintenance crews and small contractors who rarely put more than two people at the edge.
The finance payment shown is a sample, not an offer. Financing is provided through APPROVE and its lender network, subject to credit approval, at a 60 month term; your offered rate and term may differ. Financing is available on single items priced at 1,500 dollars and up, including smaller items bundled with the unit.
Who Needs This Product
The PX2 Hybrid is for building maintenance teams, small roofing and mechanical contractors, and facility owners who need a mobile anchorage for one or two workers in fall arrest and want it to work on both the membrane roof and the concrete deck. Each worker needs a harness, a connecting device sized to the setback, and a rescue plan.
Features
Two anchoring modes
Steel penetrator spikes for TPO, EPDM and built-up roofs, or the concrete attachment for smooth concrete decks. Change modes per the Tie Down instructions.
Three workers on spikes
Two fall arrest and one fall restraint connection on membrane and built-up roofs.
Two workers on concrete
One fall arrest and one restraint when set up with the concrete attachment.
Lighter than the PX5
At 643 lb it is a simpler crane pick than the 1,069 lb Sentinel for crews that do not need seven tie-offs.
Penetrator family hardware
Same red fall arrest connection points, flat-free tires and hoist rings as the rest of the Tie Down cart line.
Ships job site ready
Delivered assembled on a pallet, ready to hoist and roll.
Vendor documentation pending. Capacities and surfaces above are from Tie Down dealer listings. Setback, slope, and surface rules follow the Tie Down PX2 instruction manual shipped with the cart; use the PX3 and PX5 manuals as a guide to the Penetrator family rules until the PX2 manual is posted here. Confirm fall clearance with the calculator below.
Compliance Standards
OSHA 29 CFR 1926.502
Construction fall protection systems criteria for anchorages and personal fall arrest systems.
OSHA 29 CFR 1910.140
General industry personal fall protection systems.
ANSI Z359.6-2016
Design of active fall protection systems, the standard Tie Down drop tests its roof carts against.
Tie Down Penetrator family
Same spike engagement design as the drop tested PX3 and PX5 carts. Request the PX2 DoC from us for your submittal package.
Typical Applications
How to Use
Follow the Tie Down instruction manual. The sequence below is an overview only.
- Choose the mode. Spikes for membrane and built-up roofs, concrete attachment for smooth concrete, per the Tie Down instructions.
- Verify the surface and load. Confirm the surface is approved, slope 1:12 or less, and the deck carries 643 lb plus the crew.
- Hoist and position. Lift by the hoist rings and roll the cart to the setback stated in the manual, square to the edge.
- Connect. Two fall arrest and one restraint worker on spikes, or one fall arrest and one restraint on concrete.
- Reposition. Keep restraint lengths shorter than the distance to the edge while rolling to the next position.
Inspection and Retirement
Inspect before each use, with a documented competent person inspection at least annually. Remove the system from service for any of the conditions below.
- Spikes, concrete attachment and mechanism: bending, cracks, corrosion or binding.
- Tie-off points and hoist rings: distortion, cracks, worn pins.
- Frame and welds: cracks, bends or corrosion.
- Tires and handles: damaged tires, bent axles.
- Labels: illegible or missing markings.
Remove the system from service immediately after any fall arrest event and have it inspected by a competent person before it returns to use.
Product Videos
PX3, PX5, Sentinel, BigFoot and Squatch side by side.
How the Tie Down Penetrator spike system arrests a fall.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Technical Specifications
| Part number | 73160 (Tie Down Engineering, USA) |
|---|---|
| Type | Hybrid mobile fall protection cart, penetrating spikes or concrete attachment |
| Unit weight | 643 lb |
| Capacity on spikes | 3 workers: 2 fall arrest, 1 fall restraint, 310 lb each |
| Capacity on concrete | 2 workers: 1 fall arrest, 1 fall restraint |
| Surfaces | Concrete (attachment mode), TPO, EPDM, built-up roofing (spike mode) |
| Maximum slope | 1:12 (Penetrator family) |
| Setback | Per the Tie Down PX2 instruction manual |
| Shipping | Job site ready on a pallet, LTL freight |
| Standards | OSHA 1926.502, OSHA 1910.140 |
| Warranty | Tie Down 90 day limited warranty |
| Documentation | Vendor sell sheet, manual and DoC on request |
Frequently Asked Questions
Tie Down 73160 Submittals and Documentation
PX2 Hybrid 73160 Spec Sheet (PDF)Fall Protection Distributors one page summary of capacity, modes and surfaces. Tie Down Mobile Fall Protection Line Sheet (PDF)The full cart lineup compared side by side. Tie Down Safety Catalog, Part 1 (PDF)Mobile fall protection, anchors and harness pages of the Tie Down safety catalog. Tie Down Safety Catalog, Part 2 (PDF)Guardrail, warning line and roofing safety pages of the Tie Down safety catalog.Compare the Tie Down Mobile Fall Protection Line
Every Tie Down cart is drop tested and ships job site ready. Pick by surface, crew size, and whether you need concrete capability, a rescue winch, or a lifeline between two carts.
- Tie Down Engineering. Mobile fall protection carts, rescue winches, ladder hoists and roofing equipment.
- Mobile fall protection systems. Every mobile anchor cart and grabber we carry.
Not Sure Which Penetrator Fits?
Tell us the surfaces and how many workers tie off at once and we will point you to the PX2, PX3 or PX5, quote delivered freight and set up financing.
Call 863-703-4522 to talk to a fall protection specialist.
