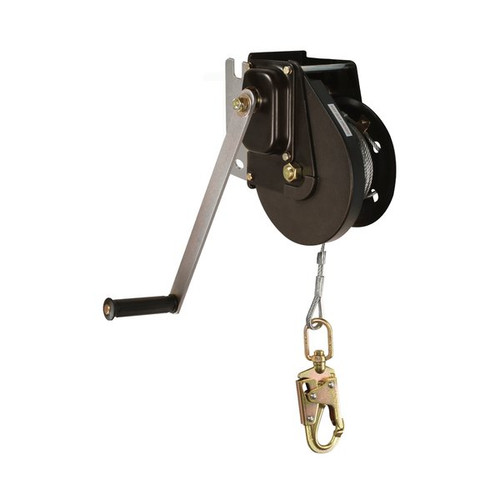

FallTech 7293M Materials Winch with Galvanized Cable with 60 ft
FallTech

FallTech Materials Winch with Galvanized Cable

(No reviews yet) Write a Review
$809.00 - $860.50
Brand:
FallTech
SKU:
7293X
Availability:
Usually ships in 1 business day
Shipping:
Calculated at Checkout
Adding to cart… The item has been added
American Express Icon American Express Icon Discover Icon Discover Icon Mastercard Icon Mastercard Icon PayPal Icon PayPal Icon Visa Icon Visa Icon
FallTech Confined Space

FallTech Materials Winch with Galvanized Cable

Manually operated mechanical Winch for raising and lowering materials with minimal effort. 3/16" galvanized steel cable lifeline with alloy steel swivel snap hook.

Features 5:1 Gear Ratio Mechanical Advantage with 12' per minute average lifting speed. Includes integral mounting bracket for Davit and Tripod installation.

FallTech 7293M Materials Winch with Galvanized Cable
620 lbMax Working Load
3,100 lbStatic Strength
5:1Gear Ratio
12 ft/minAvg Lifting Speed
30 lbHandle Crank Force
3/16 inCable Lifeline
60 or 120 ftCable Lengths
27 lbWinch Weight

Who Needs This Product

Crews that need to move tools, parts, and equipment through a vertical portal use a materials winch so the personnel system stays dedicated to the entrant. Keeping material handling on its own winch is a best practice that prevents overloading the personnel line and keeps the entry portal organized.

Features

Manually operated mechanical Winch for

Manually operated mechanical Winch for raising and lowering materials with minimal effort.

3/16" galvanized steel cable lifeline

3/16" galvanized steel cable lifeline with alloy steel swivel snap hook.

Features 5:1 Gear Ratio Mechanical

Features 5:1 Gear Ratio Mechanical Advantage with 12' per minute average lifting speed.

Includes integral mounting bracket for

Includes integral mounting bracket for Davit and Tripod installation.

Includes 20" weather-resistant storage bag

Includes 20" weather-resistant storage bag.

Winch is not intended for

Winch is not intended for personnel applications.

⚠

Materials only. This winch is rated for material handling and must never be connected to a person. Keep personnel lifting on a personnel winch or 3-way SRL-R.

Compliance Standards

ANSI A10.5-1969

Applicable requirement for this equipment: ANSI A10.5-1969.

OSHA 1910.146

Permit-required confined space regulation that drives retrieval and rescue equipment requirements for entry work.

Typical Applications

Tool deliveryRaising and lowering tools and parts to workers in vaults and tanks.
Cleaning operationsRemoving debris and sludge buckets during cleaning work.
Component swapsSupporting pump and valve replacement in lift stations.
Portal organizationKeeping material loads off the personnel and rescue lines.

How to Use

Follow the FallTech instruction manual. The sequence below is an overview only.

  1. Mount the winch. Attach it to the tripod or davit bracket and route the cable over the sheave.
  2. Attach the load. Connect the load to the hook, staying within the rated capacity.
  3. Control the lift. Crank the handle to raise or lower the load at a controlled speed.
  4. Materials only. Never lift personnel with a materials winch. It is rated for material handling only.

Inspection and Retirement

Inspect the winch before each use. A competent person inspection is required at least annually.

  • Cable: broken wires, kinks, and corrosion.
  • Hook and latch: proper closure and function.
  • Brake: must hold the rated load without slipping.

Retirement triggers: shock loading, cable damage, or brake slippage.

Fall Protection Distributors logo Fall Protection
Distributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your lanyard or SRL setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k). Run the Numbers and Stay Safe Launch the Calculator ›

Technical Specifications

TypeFallTech Materials Winch
SKU7293X
Static Strength3,100 lb min.
Handle Operation Force30 lb max.
Max. Working Load620 lb
Cable3/16" galvanized steel; 3,400 lb min. static strength
Lifeline ConnectorPlated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Drive and Drum GearsPlated alloy steel
Available Configurations7293M (60 ft), 7295M (120 ft)
StandardsANSI A10.5-1969; OSHA 1926.502
WarrantyFallTech 2-year limited warranty against defects in materials and workmanship

Frequently Asked Questions

Can this materials winch lift personnel?
No. It is rated for material handling only and must never be connected to a person. Use a personnel winch or 3-way SRL-R for raising and lowering workers.
What is the working load of the materials winch?
See the specification table for the rated load. Stay inside the rating and keep loads controlled at all times.
Why use a separate winch for materials?
A dedicated materials line keeps tools and debris off the personnel system, prevents shock loads on rescue equipment, and keeps the entry portal organized during work.
What cable lengths are available?
The winch comes with 60 ft or 120 ft of galvanized steel cable, matching standard entry depths for municipal and industrial work.
How does the winch mount to my tripod or davit?
It mounts to the same FallTech bracket system used by the personnel devices. Use the leg bracket assembly on tripods or the device receiver bracket on davits.
What inspection does it require?
Inspect the cable, hook, and brake before each use and have a competent person inspect the winch at least annually. Remove it from service if the cable shows broken wires or the brake slips.
Does the winch include a storage bag?
Yes, it ships with a weather-resistant storage bag that protects the cable and mechanism between jobs.

FallTech 7293M Submittals and Documentation

7293X Instruction Manual (PDF)Installation, use, capacity, and inspection procedures. 7293X Sell Sheet / Brochure (PDF)Specifications, dimensions, and feature summary.

Complete Your Confined Space System

Specifying Confined Space Equipment for Your Crew?

The right system depends on the portal, the depth, and your rescue plan. Confirm your application with us and we will make sure every component matches before it ships.

Call 863-703-4522 to talk to a fall protection specialist.

FallTech provides a 2-year limited warranty against defects in materials and workmanship on the FallTech product. The warranty is void if the product is altered, misused, or damaged by neglect, abuse, or accident, and it excludes normal wear. Fall Protection Distributors, LLC passes through the manufacturer warranty to the original purchaser.
