BBC Large Beam Clamp, 8 to 24 in Flanges

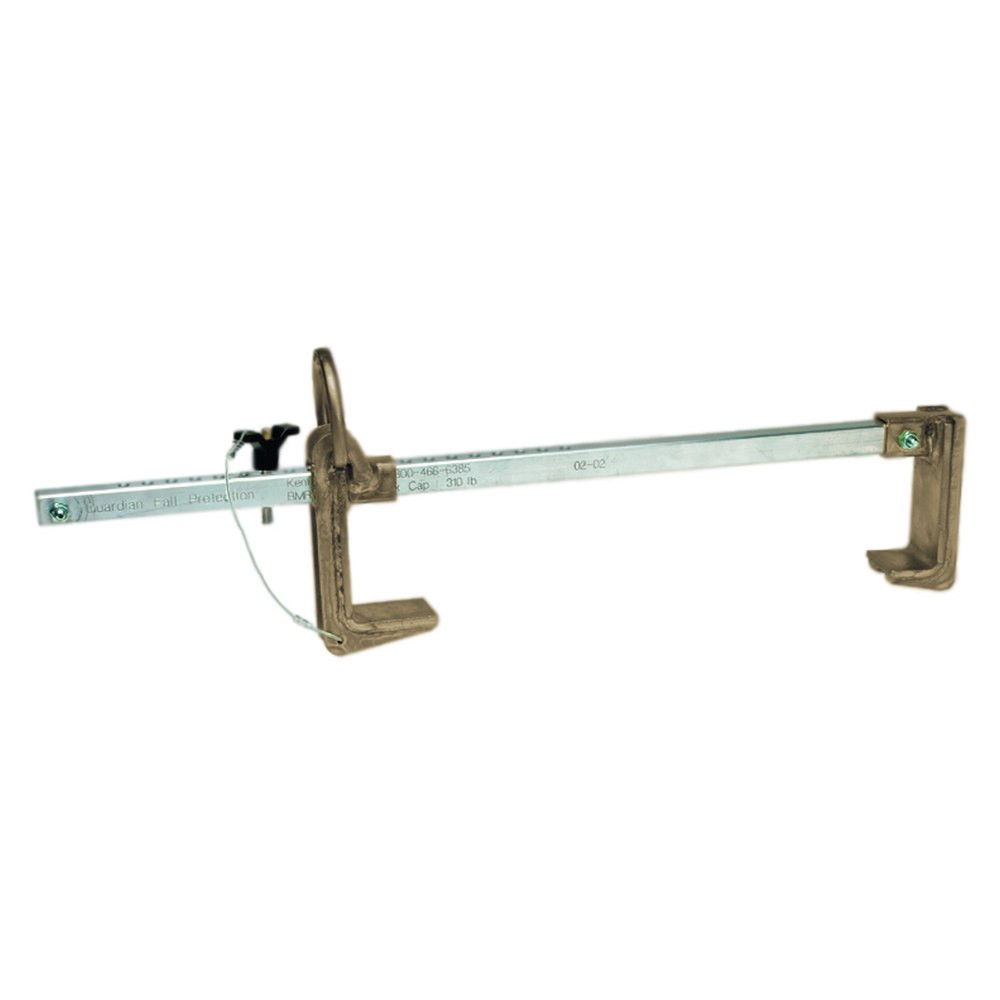

The Guardian BBC large beam clamps anchor where standard beam anchors give up: the BBC 18-4 (00127) spans flanges from 8 to 18 in up to 4 in thick, and the BBC 24-2 (00130) reaches 12 to 24 in flanges up to 2.5 in thick. Both clamp positively to the flange and present a D-ring anchorage for one worker.
Rated at 130 to 310 lbs including tools, the BBC clamps meet OSHA 1926.502 and 1910.140 as anchorage connectors in a personal fall arrest system, with full documentation linked below.
Who Needs This Product
BBC clamps live on bridge rehabs, plate girders, and industrial crane rails, the structure standard anchors cannot bite. Choose by your flange: the 18-4 for very thick flanges to 4 in, the 24-2 for the widest sections to 24 in. Each clamp anchors one worker; pair with an SRL for short fall distances over structure.
Features
Four models fit beams up to 24” wide and flanges
Four models fit beams up to 24” wide and flanges up to 4” thick
Durable components resist welding slag or other
Durable components resist welding slag or other contaminants
Snag-free operation
Snag-free operation
Jobsite-grade construction
Built with the materials and finish quality Guardian applies across its height safety line.
Documented compliance
Full manufacturer documentation is linked on this page for submittal packages.
Fleet-friendly inspection
Clear inspection criteria in the manual keep competent-person checks fast and consistent.
Options in This Family
| SKU | Description |
|---|---|
| 00127 | Guardian BBC Large Beam Clamp, 8-18 in beams, 4 in thick |
| 00130 | Guardian BBC Large Beam Clamp, 12-24 in beams, 2.5 in thick |
Technical Specifications
| SKU | 00127 / 00130 |
|---|---|
| Worker capacity | 130-420 lbs. including all clothing, tools, and equipment |
| Tensile strength | 5,000 lbs |
| Materials | Stainless Steel |
| Product weight | 8.1 lbs |
| Dimensions | 32.5 in L x 6.8 in W x 15 in H |
| Standards | OSHA 1910.140, OSHA 1926.502, ANSI Z359.18-2017 |
| Warranty | Guardian lifetime warranty against defects in material and workmanship |
Anchorage strength is the foundation of the system. The structure and anchor must withstand 5,000 lbs per attached worker or maintain a 2:1 safety factor under qualified-person supervision. Verify substrate, fastener, and orientation requirements against the instruction manual before every installation.
Compliance Standards
OSHA 1910.140
This product is compliant with OSHA 1910.140 when used as part of a complete, competent-person verified system.
OSHA 1926.502
This product is compliant with OSHA 1926.502 when used as part of a complete, competent-person verified system.
ANSI Z359.18-2017
This product is compliant with ANSI Z359.18-2017 when used as part of a complete, competent-person verified system.
ISO 17025 lab tested
Guardian products are tested in an ISO 17025 accredited laboratory; available documentation is linked below.
Typical Applications
Installation Overview
Installation must follow the Guardian instruction manual for this anchor. The sequence below is an overview only.
- Inspect first. Check the anchor body, connection point, and hardware before every installation.
- Verify the structure. The supporting structure must meet the strength requirements in the instruction manual.
- Install per the manual. Follow the substrate, fastener, and orientation requirements exactly; fill every required fastener position.
- Verify the connection. Confirm the anchor is fully seated and the connection point is accessible and undamaged.
- Connect the system. Attach a compatible connecting device and verify the complete personal fall arrest system with a competent person.
- Check clearance. Confirm fall clearance below the work area and minimize swing fall hazards before work begins.
Inspection and Retirement
Inspect before every use, and have a competent person perform a documented inspection at least every six months under ANSI Z359.2 practice. Remove the anchor from service for any of the conditions below.
- Cracks, corrosion, or deformation of the body, connection point, or welds.
- Loose, missing, damaged, or worn hardware and fasteners.
- Elongation or wear at the D-ring or connection eye.
- Missing or illegible labels.
- Any evidence the anchor has arrested a fall.
Retirement triggers: any fall event on the anchor, or any condition where the inspector cannot positively verify it is fit for service.
Fall ProtectionDistributors, LLC Free Tool · No Signup · OSHA 1926.502 Free Interactive Tool Fall Protection Calculator Pick your system. Run the math. Generate a plan. 1Pick Your SystemDetermine fall restraint vs. fall arrest based on your work surface, edge access, and clearance. 2Run the MathCalculate exact fall clearance required below the work surface for your SRL or lanyard setup. 3Generate a PlanGet a printable OSHA-compliant Fall Protection Plan structured around 29 CFR 1926.502(k).
Frequently Asked Questions
Guardian BBC Large Beam Clamp Submittals and Documentation
Guardian Beamer Large Beam Clamp Manual (PDF)Installation, use rules, and inspection criteria from the manufacturer.Guardian Beamer Large Beam Clamp Test Report (PDF)ISO 17025 accredited laboratory test results.Guardian Beamer Large Beam Clamp Doc Of Conformity (PDF)Manufacturer declaration of conformity.Guardian 00205 Inspection Form (PDF)Printable competent-person inspection checklist.Compatible and Related Products
